FieldCast Two Hybrid Adapter for Blackmagic Studio Camera

Become a pro at managing your Blackmagic Studio Camera with the Two Hybrid Adapter. This essential tool bridges the gap between FieldCast fiber optic cable and your Blackmagic Design Studio Camera, providing a seamless connection that enhances your camera's functionality.

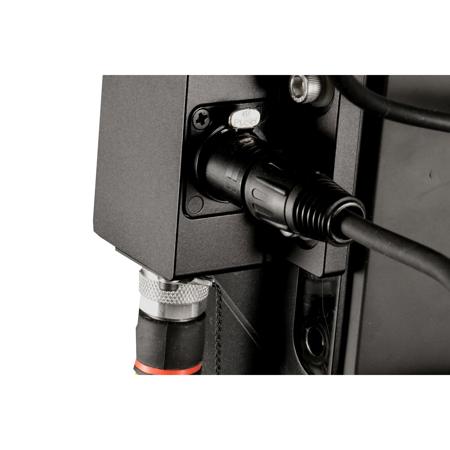

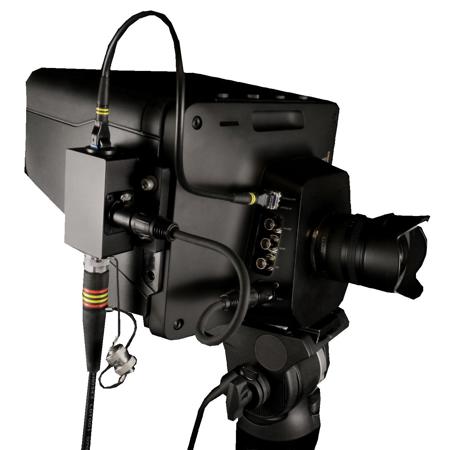

The Two Hybrid Adapter mounts directly to the side of your camera body, establishing a connection to the camera SFP via a flexible LC Duplex bridging cable. This setup powers your camera while enabling the transport of your HD or 4K video back and forth. Control all functions of your Studio Camera using just one slim and flexible FieldCast 2Core cable, regardless of the distance.

This adapter boasts a FieldCast 2Core Hybrid Chassis Connector, allowing you to connect the FieldCast 2Core Hybrid Main Cable directly to your Blackmagic Studio Camera HD or 4K. It utilizes single-mode fiber optic technology, creating an extremely high bandwidth for error-free transport of 4K data and beyond, at any cable length. This technology also conveys copper for delivering power to feed the camera.

The Two Hybrid Adapter is designed with an all-aluminum solution, built around a milled-out block containing both connectors. It features an anodized matte black finish that perfectly matches the camera body surface. An adjustable belt clip is included for connecting the adapter straight to a belt or pocket.

The adapter is equipped with an integrated universal 1/4' 20 UNC insert for mounting to a tripod, rig, or arm. Its milled-out aluminum case is glass blasted and anodized for durability. The adapter is color-coded with two yellow rings for 2Core single mode and two red rings for power.

Inside, you'll find a custom FieldCast ultra-short bend insensitive patching cable. The Senko LC Duplex connection comes with internal dust caps for protection. A 30 cm black LC Duplex patch cable is included for connecting to the camera SFP.

The Two Hybrid Adapter employs high bandwidth single mode 9/125 fiber technology and comes with 2 pairs of 1/4" screws for mounting with or without the camera sunshade.

Experience complete camera control over just one fiber optic cable. With the Two Hybrid Adapter, you can move your Studio Camera freely over the studio floor and make use of all the advantages of ATEM camera control. This robust fiber optic connection is even more reliable than traditional BNC connectors on your copper cable.

Even with 4K video, you can go any distance you want and use the same Studio Cameras in the field without worries. The Two Hybrid Adapter is a fully passive device, bridging fiber to fiber in the most straightforward way possible, thereby fully powering the cameras with no special tricks. Just keep the connections clean and go.
