Fractal Design Define 7 XL E-ATX Full-Tower Computer Case, Black Solid

SKU: FDCDEF7X01 MFR: FD-C-DEF7X-01
Earn VIP Reward Points

Key Features

  • Maximize airflow with this Fractal Design computer case, supporting up to 11 x 120mm fans!
  • The Define 7 XL E-ATX full-tower case supports robust builds with SSI-EEB/E-ATX motherboards.
  • Enjoy superior build quality with sound-damped steel panels for a quiet computing experience.
  • Optimize cable management with 30mm of space & integrated straps in this full-tower case.
  • Showcase your PC aesthetics with a sleek, black solid design and tool-less side panels.
  • This Fractal Design case offers flexible storage: up to 18 x 3.5"/2.5" drive positions!
See More Product Details

Product Options

Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$79.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Fractal Design Define 7 XL Specifications

  • Color

    Black Solid

  • 3.5"/2.5" drive mounts

    6 + 2 included, 18 positions total

  • Dedicated 2.5" drive mounts

    2 included, 5 positions total

  • 5.25" drive mounts

    2

  • Expansion slots

    9 + 3

  • Motherboard compatibility

    E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB

  • Power supply type

    ATX

  • Front interface

    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0
    Audio I/O, Power button, Reset button

  • Total fan mounts

    11x 120mm or 9x 140mm

  • Front fan

    4x 120mm or 3x 140mm, (2x Dynamic X2 GP-14 included)

  • Top fan

    4x 120mm or 3x 140mm

  • Rear fan

    1x 120/140mm, (1x Dynamic X2 GP-14 included)

  • Bottom fan

    2x 120/140mm

  • Dust filters

    Top, 2x Front, Bottom + PSU

  • Front radiator

    Up to 480/420mm

  • Top radiator

    Up to 480/420mm

  • Rear radiator

    120mm

  • Bottom radiator

    Up to 240/280mm

  • PSU max length

    250mm (both HDD cages installed)

  • GPU max length

    Storage layout: 359mm
    Open layout: 549mm (524mm w/ front fan)

  • CPU cooler max height

    185mm

  • Cable routing space

    30mm

  • Cable routing grommets

    Yes

  • Fixed Self-Securing Closure straps

    Yes

  • Tool-less push-to-lock

    Both side panels and top

  • Captive thumbscrews

    HDD brackets, SSD brackets, PSU bracket

  • Left/Right side panel

    Industrial sound-damped steel

  • Dimensions (L x W x H)

    23.78 x 9.45 x 22.28" (604 x 240 x 566mm)
    23.22 x 9.44 x 21.58" (590 x 240 x 548mm) (Without feet/protrusions/screws)

  • Weight

    36.44 lbs (16.53kg)

  • UPC Code

    843276102043

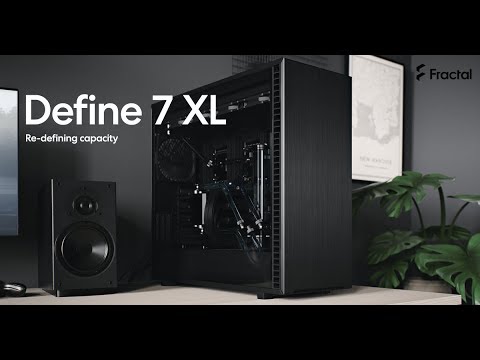

About Fractal Design Define 7 XL

For those seeking unparalleled capacity and versatility in a full-tower computer case, the Fractal Design Define 7 XL E-ATX Full-Tower Computer Case in Black Solid is a game-changer. This case sets a new benchmark in modularity, flexibility, and user-friendly design. Its dual-layout interior is engineered to accommodate the most demanding builds, supporting the largest E-ATX and enterprise motherboards, multi-GPU configurations, and elaborate water-cooling systems. With the ability to house nearly two dozen storage devices in its Storage layout, the Define 7 XL offers limitless possibilities for customization.

The Define 7 XL provides ample space for massive builds, featuring an Open Layout that allows for extensive water-cooling solutions with radiators up to 480 mm in the front or top and 280 mm at the base. Its spacious and adaptable interior can comfortably fit large motherboards up to E-ATX and SSI-EEB. The case includes two 5.25" ODD bays, which can be transformed into an additional front fan mount with a filtered louver cover, enhancing cooling options. The ventilated PSU shroud with a two-part removable cover and the ultra-slim Nexus+ 2 fan hub, which connects up to three PWM fans and six 3-pin fans, further optimize airflow and cooling.

Storage capabilities are exceptional, with the ability to mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout. The case includes 6 HDD/SSD trays, 2 SSD brackets, and 2 Multibrackets. Cable management is simplified with a detachable PSU cable shield, integrated cable guides, and Self-Securing Closure straps. The sturdy new HDD cage design features vibration-damped trays, while 13 pass-through holes with ten rubber grommets and two removable covers ensure clean cable routing, regardless of motherboard size.

The Define 7 XL excels in airflow and cooling, offering a total of 9 x 140 mm or 11 x 120 mm fan mounts, along with three preinstalled Dynamic X2 GP-14 fans. High airflow nylon filters, which are easy to clean and provide full PSU coverage, are accessible from the front for convenience. The case's silence-optimized construction includes industrial sound-damped front, top, and side panels, ensuring a quiet operation.

With USB 3.1 Gen 2 Type-C connectivity, the Define 7 XL delivers data transfer speeds up to 10 Gbps. The Moduvent top panel allows for effortless swapping between sound-damped solid steel and filtered ventilation. The versatile new Multibracket enables conversion of any unused fan position into an HDD, SSD, or pump mount, adding to the case's adaptability.

In summary, the Fractal Design Define 7 XL E-ATX Full-Tower Computer Case is a superior choice for enthusiasts and professionals who demand exceptional storage, cooling, and customization options in a sleek, silent, and robust design.

Fractal Design Define 7 XL Features

  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480mm in front or top and 280mm in the base
  • Two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Silence-optimized construction with industrial sound-damped front, top, and side panels
  • Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
  • Outstanding cooling capacity with a total of 9x 140mm or 11x 120mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
  • Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Sturdy new HDD cage design with vibration damped trays
  • Tool-less, top-latching panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover
  • Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and convenient front access
  • 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
  • Detachable PSU cable shield and integrated cable guides with Self-Securing Closure straps further simplify cable management behind the board

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Maximize airflow with this Fractal Design computer case, supporting up to 11 x 120mm fans!
  • The Define 7 XL E-ATX full-tower case supports robust builds with SSI-EEB/E-ATX motherboards.
  • Enjoy superior build quality with sound-damped steel panels for a quiet computing experience.
  • Optimize cable management with 30mm of space & integrated straps in this full-tower case.
  • Showcase your PC aesthetics with a sleek, black solid design and tool-less side panels.
  • This Fractal Design case offers flexible storage: up to 18 x 3.5"/2.5" drive positions!

What's in the box:

  • Fractal Design Define 7 XL E-ATX Full-Tower Computer Case (Black Solid)
  • Accessory Box
  • Ventilated Top Panel
  • ODD Bracket
  • ODD Bay Cover
  • 2x HDD/SSD Trays
  • User Manual
  • Fractal Design 2 Year Limited Warranty
