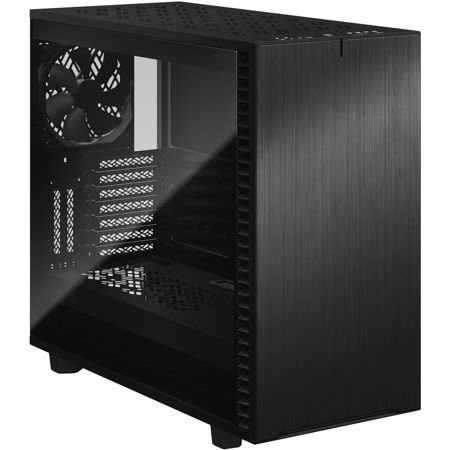

Fractal Design Define 7 XL Dark Tempered Glass E-ATX Full-Tower Computer Case, Black

SKU: FDCDEF7X03 MFR: FD-C-DEF7X-03
Earn VIP Reward Points

Key Features

  • The Define 7 XL full-tower case supports E-ATX boards for high-end PC builds.
  • Enjoy superior airflow in this PC case, keeping components cool under pressure.
  • Showcase your build with the stunning dark tempered glass side panel on this case.
  • Manage cables effortlessly with 30mm of routing space in this Fractal Design case.
  • Install multiple drives; supports up to 18x 3.5" and 5x 2.5" drives for max storage.
  • This black Fractal Design case offers great build quality and a sleek aesthetic.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Fractal Design Define 7 XL Specifications

General

General

Jump to...
  • Color

    Case: Black, Tempered Glass: Dark Tint

  • 3.5"/2.5" Universal drive brackets

    6 + 2 included, 18 positions total

  • Dedicated 2.5" drive brackets

    2 included, 5 positions total

  • 5.25" drive mounts

    2x

  • Expansion slots

    9 + 3

  • Front ports

    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button

  • Total fan mounts

    11x 120mm or 9x 140mm

  • Front fan

    4x 120mm or 3x 140mm, (2x Dynamic X2 GP-14 included)

  • Top fan

    4x 120mm or 3x 140mm

  • Rear fan

    1x 120/140mm, (1x Dynamic X2 GP-14 included)

  • Bottom fan

    2x 120/140mm

  • Dust filters

    Top, 2x Front, Bottom + PSU

  • Fixed self-securing closure straps

    Yes

  • Cable routing grommets

    Yes

  • Captive thumbscrews

    HDD brackets, SSD brackets, PSU bracket

  • Left side panel

    Tempered Glass

  • Right side panel

    Industrial sound-damped steel

Compatibility

Jump to...
  • Motherboard compatibility

    E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB

  • Power supply type

    ATX

  • PSU max length

    250mm (both HDD cages installed)

  • GPU max length

    Storage layout: 359mm - Open layout: 549mm (524mm w/ front fan)

  • CPU cooler max height

    185mm

  • Front radiator

    Up to 480/420mm

  • Top radiator

    Up to 480/420mm

  • Rear radiator

    120mm

  • Bottom radiator

    Up to 240/280mm

  • Cable routing space

    30mm

  • Vertical GPU Support

    With Flex B-20 or Flex VRC-25: 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Physical

Jump to...
  • Volume

    4735.44 cu. In (77.6L)

  • Dimensions (L x W x H)

    Case: 23.77 x 9.44 x 22.28" (604 x 240 x 566mm)
    Case without feet/protrusions/screws: 23.22 x 9.44 x 21.57" (590 x 240 x 548mm)

  • Weight

    36.68 lbs (16.64kg)

  • UPC Code

    843276102067

About Fractal Design Define 7 XL

Experience the pinnacle of sophisticated design and unparalleled versatility with the Define 7 XL Dark Tempered Glass E-ATX Full-Tower Computer Case. This sleek and stylish case redefines the expectations for full-tower chassis, offering a harmonious blend of modularity, flexibility, and user-friendly features.

Crafted with a modern aesthetic, the Define 7 XL features a robust anodized aluminum front panel complemented by reversible dual-handed hinges, allowing for seamless access to the interior. The dark tempered glass side panel not only adds an elegant touch but also provides a clear view of your high-performance components.

The interior of the Define 7 XL is a testament to its expansive capabilities. It supports large motherboards up to E-ATX and SSI-EEB, making it an ideal choice for enthusiasts and professionals alike. The dual-layout interior can be configured to your needs, whether you require additional headroom for gargantuan water-cooling setups with radiators up to 480mm in front or top and 280mm in the base, or an Open Layout for maximum space.

Storage options are superlative, with the ability to mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout, thanks to the inclusion of 6 HDD/SSD trays, 2 SSD brackets, and 2 Multibrackets. The new sturdy HDD cage design features vibration-damped trays, ensuring your drives are securely housed and protected from potential disturbances.

Cable management is a breeze with the Define 7 XL. The detachable PSU cable shield, integrated cable guides, and Self-Securing Closure straps allow for a clean and organized build. Thirteen pass-through holes, equipped with ten rubber grommets and two removable covers, facilitate immaculate cable routing, regardless of the motherboard size.

Cooling is a priority with this full-tower case. It offers outstanding cooling capacity with a total of 9 x 140mm or 11 x 120mm fan mounts, and comes equipped with three preinstalled Dynamic X2 GP-14 fans. The high airflow nylon filters are easy to clean and provide full PSU coverage with convenient front access.

For those seeking silence, the Define 7 XL does not disappoint. The case is optimized for quiet operation, featuring industrial sound-damped front, top, and side panels. Additionally, the Moduvent Top panel can effortlessly switch from sound-damped solid steel to filtered ventilation, based on your cooling needs.

Connectivity is modern and efficient with a front panel that includes a USB 3.1 Gen 2 Type-C port, offering fast charging support and transfer speeds up to 10Gbps.

The versatile new Multibracket included with the Define 7 XL allows you to convert any unused fan position to an HDD, SSD, or pump mount, further enhancing the customization potential of this elegant and powerful computer case.

Embrace the future of full-tower cases with the Define 7 XL Dark Tempered Glass E-ATX Full-Tower Computer Case, where style meets substance in a chassis designed for the discerning builder who demands only the best.

Fractal Design Define 7 XL Features

  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480mm in front or top and 280mm in the base
  • Two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Silence-optimized construction with industrial sound-damped front, top, and side panels
  • Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
  • Outstanding cooling capacity with a total of 9 x 140mm or 11 x 120mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
  • Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Sturdy new HDD cage design with vibration damped trays
  • Tool-less, top-latching panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover
  • Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and convenient front access
  • 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
  • Detachable PSU cable shield and integrated cable guides with Self-Securing Closure straps further simplify cable management behind the board

Key Features

  • The Define 7 XL full-tower case supports E-ATX boards for high-end PC builds.
  • Enjoy superior airflow in this PC case, keeping components cool under pressure.
  • Showcase your build with the stunning dark tempered glass side panel on this case.
  • Manage cables effortlessly with 30mm of routing space in this Fractal Design case.
  • Install multiple drives; supports up to 18x 3.5" and 5x 2.5" drives for max storage.
  • This black Fractal Design case offers great build quality and a sleek aesthetic.

What's in the box:

  • Fractal Define 7 XL Dark Tempered Glass E-ATX Full-Tower Computer Case (Black)
  • Ventilated Top Panel
  • ODD Bracket
  • ODD Bay Cover
  • 2x HDD/SSD Trays
  • 20x Mounting Screws (6-32)
  • 48x Mounting Screws (M3)
  • 36x HDD Dampeners
  • 36x 3.5" Drive Screws
  • 4x Power Supply Screws
  • 5x Additional Motherboard Standoff Screws
  • Standoff Tool
  • 8x Cable Ties
  • User Manual
  • Fractal 2 Year Limited Warranty
