What is the design of the Meshify 2 Clear Tempered Glass ATX Mid-Tower Computer Case?

The Meshify 2 features a sleek and modern design with clear tempered glass. It has an iconic angular mesh design for optimal filtered airflow and a stealth-inspired aesthetic.

What type of motherboards is the Meshify 2 compatible with?

The Meshify 2 is compatible with a variety of motherboard sizes, including ATX, E-ATX, Micro-ATX, and Mini-ITX.

Does the Meshify 2 come with any fans preinstalled?

Yes, the Meshify 2 comes preinstalled with three Dynamic X2 GP-14 fans. There's room to expand up to a total of nine fans.

What is the storage capacity of the Meshify 2?

The Meshify 2 can hold up to 11 HDDs and four dedicated SSD mounts when converted to Storage Layout.

Does the Meshify 2 support any special features for cable management?

Yes, the Meshify 2 features an integrated cable management system with a detachable PSU cable shield and self-securing closure straps for easy and tidy cable management.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Fractal Design Meshify 2 Specifications

General

General

Jump to...
  • Color

    Case: White, Tempered Glass: Clear Tint

  • 3.5"/2.5" Universal drive mounts

    6x included, 14x positions total + 1x Multibracket

  • Dedicated 2.5" drive mounts

    2x included, 4x positions total

  • Expansion slots

    7 + 2

  • Front interface

    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button

  • Total fan mounts

    9x 120/140mm

  • Front fan

    3x 120/140mm (2x Dynamic X2 GP-14 included)

  • Top fan

    3x 120/140mm

  • Rear fan

    1x 120/140mm (1x Dynamic X2 GP-14 included)

  • Bottom fan

    2x 120/140mm

  • Dust filters

    Top, front and bottom

  • Fixed self-securing closure straps

    Yes

  • Cable routing grommets

    Yes

  • Captive thumbscrews

    HDD, SSD and PSU brackets

  • Left side panel

    Tempered Glass

  • Right side panel

    Steel

Compatibility

Jump to...
  • Motherboard compatibility

    E-ATX (max 285mm)/ ATX / mATX / Mini-ITX

  • Power supply type

    ATX

  • PSU max length

    250mm (with HDD cage installed)

  • GPU max length

    Open layout: 476mm (451mm w/ front fan) - Storage layout: 298mm

  • CPU cooler max height

    185mm

  • Front radiator

    Up to 360/280mm

  • Top radiator

    Up to 360/420mm

  • Rear radiator

    120mm

  • Bottom radiator

    Up to 240/280mm

  • Cable routing space

    30mm

Physical

Jump to...
  • Volume

    3597.34 cu. in (58.95L)

  • Dimensions (L x W x H)

    Case: 21.33 x 9.44 x 18.66" (542 x 240 x 474mm)
    Case without Feet/Protrusions/Screws: 21.29 x 9.44 x 17.87" (541 x 240 x 454mm)

  • Weight

    23.14 lbs (10.5kg)

  • UPC Code

    843276102463

About Fractal Design Meshify 2

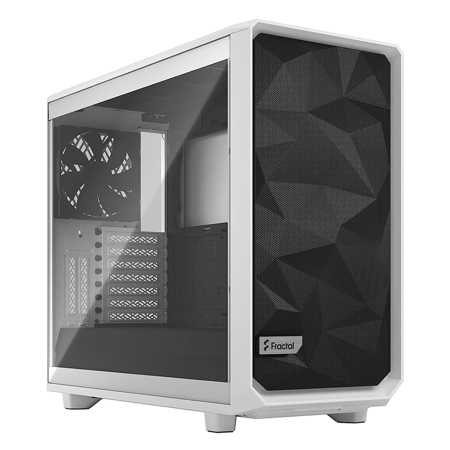

Be at the forefront of computer case design with the Meshify 2 Clear Tempered Glass ATX Mid-Tower Computer Case in white. This sleek and modern case from Fractal Design is a testament to the evolution of classic design, combining a spacious interior with rugged good looks.

The iconic angular mesh design not only adds a bold, stealth-inspired aesthetic to your setup but also ensures filtered airflow for optimal performance. This case is designed to accommodate motherboards up to and including 285 mm E-ATX, providing ample room for your components.

Radiators up to 360 mm (front), 420 mm (top), and 280 mm (base) can be easily installed, making this case a versatile choice for your cooling needs. The detachable front filter and new front panel design with hinged removable mesh allow for increased airflow and easy access to front fan mounts.

The Meshify 2 comes preinstalled with three Dynamic X2 GP-14 fans, with the capacity to expand up to a total of nine fans. The storage capabilities are superlative, with the ability to convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSD mounts.

The innovative interior design features a movable wall for custom builds, and the included Multibracket allows you to convert any unused fan position to an HDD, SSD, or pump mount. The top-latching side panels are tool-less, allowing quick access while preventing accidental drops.

This case is extremely flexible, fitting your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout. The entire top can be removed for easy building and routing.

The Meshify 2 also features a USB 3.1 Gen 2 Type-C front I/O for fast-charging and speeds up to 10 Gbps, an ultra-slim Nexus+ 2 fan hub that connects up to three PWM fans and six 3-pin fans, and a versatile Multibracket. The detachable PSU cable shield and integrated cable guides with self-securing closure straps further simplify cable management behind the board.

In summary, the Meshify 2 Clear Tempered Glass ATX Mid-Tower Computer Case in white is a stylish, elegant, and minimalist solution for your desktop computer, offering a modern look and high-quality construction from a reputable brand.

Fractal Design Meshify 2 Features

  • Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
  • Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285mm E-ATX
  • Support for radiators up to 360mm in front, 420mm up top, or 280mm in the base in the default Open Layout
  • Includes 6 HDD/SSD trays, 2 SSD brackets, and 12 universal Multibrackets for mounting up to 10 drives
  • Expandable to 14 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 21 drives in Storage Layout
  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • New front nylon filter that can be removed for increased airflow
  • New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
  • Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Outstanding cooling capacity with a total of nine 120/140mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Detachable PSU cable shield and integrated cable guides with self-securing closure straps further simplify cable management behind the board
  • Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
  • Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
  • Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
  • Tool-less, top-latching side panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup

Key Features

  • Sleek and modern white ATX Mid-Tower Computer Case with clear tempered glass
  • Iconic angular mesh design for optimal filtered airflow and stealth-inspired aesthetic
  • Spacious interior compatible with motherboards up to 285 mm E-ATX
  • Supports radiators up to 360 mm (front), 420 mm (top), and 280 mm (base)
  • Comes preinstalled with three Dynamic X2 GP-14 fans, expandable up to nine fans
  • Superlative storage with capacity to hold up to 11 HDDs and four dedicated SSD mounts

What's in the box:

  • Fractal Meshify 2 Clear Tempered Glass ATX Mid-Tower Computer Case (White)
  • Large Accessory Box (HDD Trays)
  • Small Accessory Box
  • User Manual
  • Fractal 2 Year Limited Warranty
