2018-05-03T11:59:19

Rated 4 out of 5

Practice Practice!

It takes some getting used to handling these large filters but the results are great.

steve c.

2017-04-14T08:57:33

Rated 4 out of 5

Fantastic Addition

The system is great and it will a useful tool for my work in the field. The 6.6x8.5 bracket is a bit of a trick to fasten with the tiny screws. Be prepared to hurt your fingertips. Great filters for a great lens.

Hans A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Fotodiox WonderPana 66 FreeArc Specifications

WonderPana FreeArc Core

WonderPana FreeArc Core

Jump to...
  • Compatibility

    Sigma 14-24mm f/2.8 DG DN Art Lens

  • Dimensions

    7.4 x 5.9 x 1.4" (19 x 15 x 3.8cm)

  • Weight

    12.1 oz (343g)

Multi-Coated CPL Filter

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Material

    Hardened Anodized Aluminum, Optical Grade Glass

  • Thread Size

    145 x 1mm Standard Thread

  • Dimensions

    5.9 x 5.9 x 0.3" (14.9 x 14.9 x 0.8cm)

  • Weight

    3.4 oz (96.3g)

GND Filter

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Materials

    Premium Grade Optical Polycarbonate (CR39)

  • Density

    +2 Stop EV Value (at Densest Edge)

  • Dimensions

    6.6 x 8.5 x 0.2" (16.8 x 21.6 x 0.4cm)

  • Weight

    6.8 oz (192g)

WonderPana 6.6" Bracket

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Material

    Premium Grade Anodized Aluminum

  • Filter Width

    Any 6.6" (168mm) Wide Filter

  • Filter Thickness

    2 to 4mm

WonderPana 145 Lens Cap

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Material

    Premium Grade High Impact Plastic

  • Thread Size

    145mm x 1mm Standard Thread

  • Dimensions

    5.9 x 5.9 x 0.4" (14.9 x 14.9 x 1.1cm)

  • Weight

    2.9 oz (82g)

  • UPC Code

    847372052462

About Fotodiox WonderPana 66 FreeArc

- WonderPana FreeArc Core Option -

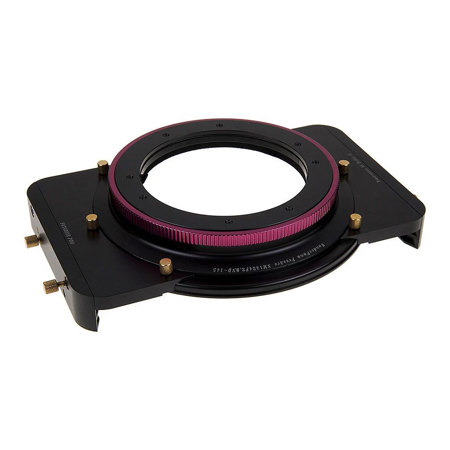

Comprising the dedicated filter holder and a bracket for attaching 6.6"-wide rectangular filters, this WonderPana FreeArc Core Filter Holder and 6.6" Bracket from Fotodiox enables attaching 145mm threaded filters and caps to the lens, which itself lacks filter threads, and the included bracket can be added for working with 6.6"-wide square and rectangular filters. Once assembled, the entire system rotates a full 360 Degree for flexible placement of the filter in use.

The Fotodiox WonderPana 6.6" Holder Bracket is a two-piece assembly designed to be used in combination with a Fotodiox WonderPana FreeArc Core Unit. When attached it then allows for the convenient use of two 2.5 to 4.0mm-thick filters measuring 6.6in wide, or one 6.6in wide filter along with one 145mm round filter behind it. The WonderPana 6.6" Holder Bracket features a lightweight, aluminum-alloy construction that has a corrosion-resistant, black anodized finish for durability. A rigid pouch is included for storage and transport.


- 145mm Multi-Coated CPL Filter -
Fotodiox Pro 145mm Slim MC-CPL Filter is a double threaded, multi-coated circular polarizer (MC-CPL) filter made of optical glass and featuring a rotating ring to allow for light ray selection. Remove unwanted reflections from non-metallic surfaces such as water or glass. CPL Filters are used to select which light rays enter your camera lens. CPL filters can also be used to saturate colors and to provide better contrast. The effect can be seen through the cameras viewfinder and changed by rotating the filter ring. The filter factor varies according to how the filter is rotated and its orientation to the sun or light source (approx. 0.3-3 stops). Typical applications include darkening skies and adding contrast to clouds, eliminating water reflection and window / glass / eyeglass reflection. The lens is Super Multi-Coated to minimize reflection at the filters surface; therefore, reducing flare and ghosting. CPL filters are specifically designed for use with auto-focus SLR cameras (They will also work on manual focus systems and video cameras without problems).


- 6.6x8.5" Graduated Neutral Density 0.6 Soft Edge Filter -
Fotodiox Pro 6.6x8.5" filters are the strongest in the industry at 2mm thick. Fotodiox 6.6x8.5" filters are practically unbreakable and are guaranteed spectrally neutral to within + or - 3 in the a and b channels of the lab color space. Fotodiox Pro filters are also guaranteed to be within + or - 2 in regards to total light transmission. Fotodiox currently offers 6.6x8.5" in 4 Graduated Neutral Density (ND) filters: .6 Soft Edge, .6 Hard Edge, .9 Soft Edge and .9 Hard Edge. This filter is made by Fotodiox Pro specifically for the WonderPana 66 Systems.


- WonderPana 6.6" Bracket -
The WonderPana66 Upgrade Brackets are premium grade aluminum holders that attach securely to either side of the WonderPana 145 or FreeArc Core Units (sold separately). The addition of these brackets allows 6.6 inch (168mm) wide square or rectangular filters to be used with your favorite UWA/SWA lenses. These brackets allow the photographer to stack either two square/rectangular filters or one square/rectangular filter and one round 145mm filter.


- WonderPana 145 Lens Cap -
This Lens Cap will fit both WonderPana 145 and WonderPana FreeArc systems, it is made from premium grade, high impact plastic and will protect the front lens element when not in use.

WonderPana Overview
Challenging shooting scenarios often call for adding a lens filter to save the shot. However when you're shooting with an Wide Angle or Ultra Wide Angle lens, the bulbous front lens element and lack of threads make it impossible to add filters - until WonderPana. The WonderPana is a complete filter system designed expressly for filtering UWA and WA lenses without vignetting.

Fotodiox WonderPana 66 FreeArc Features

  • WonderPana FreeArc Core Features
  • Provides the ability to mount a variety of 145mm filters and more!
  • Doubles as a hood to help protect your lens from damage, scratches, fingerprints and the elements
  • Lightweight, aluminum-alloy construction with a corrosion-resistant, black anodized finish for durability
  • Attaches to the lens securely as if it was a part of the lens itself, ultra wide construction to eliminate vignetting
  • 145mm Multi-Coated CPL Filter Features
  • Minimize or eliminate reflections from water, windows, wet leaves, glass and eyeglasses
  • Darken the skies and add contrast to clouds for better separation and saturation
  • Premium grade optical glass filter; high quality, double threaded, slim MC-CPL filter
  • Premium grade anodized aluminum ring; 145 x 1mm standard filter thread
  • 6.6x8.5" GND 0.6 Soft Edge Features
  • Provides up to a 2-stop reduction of light in selective areas
  • Soft-edged line of transition between the dense and clear areas
  • Filter does not affect the overall coloration of the image
  • Constructed from optical polycarbonate (CR39) for clarity and durability
  • WonderPana 6.6" Bracket Features
  • Ability to mount a variety of WP66 Filters Including: 0.6 & 0.9 in Hard & Soft Edges
  • Slots for two WP66 filters to be mounted to a WonderPana 145/FreeArc at once
  • Can be used in combination with a variety of 145mm filters for added effect
  • Premium Grade Anodized Aluminum WonderPana66 Upgrade Bracket
  • WonderPana 145 Lens Cap Features
  • Designed for WonderPana 145 & FreeArc Cores
  • Finely Crafted Inner Pinch Lens Cap
  • Fits 145 x 1mm Standard Thread
  • Premium Grade, High Impact Plastic

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • WonderPana FreeArc Core Highlights
  • Provides the ability to mount a variety of 145mm filters and more!
  • 145mm Multi-Coated CPL Filter Highlights
  • Darken the skies and add contrast to clouds for better separation and saturation
  • WonderPana 6.6" Bracket Highlights
  • Ability to mount a variety of WP66 Filters Including: 0.6 & 0.9 in Hard & Soft Edges

What's in the box:

  • WonderPana FreeArc Core Filter Holder
  • WonderPana CPL Filter
  • 6.6x8.5" GND 0.6 Soft Edge Filter
  • WonderPana 6.6" Bracket
  • WonderPana 145 Lens Cap
  • WonderPana Core Pouch
  • Fotodiox 2 Year Limited Warranty
