What is included in the WonderPana 66 FreeArc Essentials CPL & GND 0.9 Hard Edge Filter Kit?

The kit includes a filter holder, 6.6" bracket, 145mm Multi-Coated CPL Filter, 6.6x8.5" Graduated Neutral Density 0.9 Hard Edge Filter, and a WonderPana 145 Lens Cap.

What is the purpose of the 145mm Multi-Coated CPL Filter in the kit?

The 145mm Multi-Coated CPL Filter is designed to select which light rays enter your camera lens, remove unwanted reflections from non-metallic surfaces, saturate colors, and provide better contrast.

What is the use of the included 6.6x8.5" Graduated Neutral Density 0.9 Hard Edge Filter?

The 6.6x8.5" Graduated Neutral Density 0.9 Hard Edge Filter is designed to control exposure or create a specific atmospheric effect in your photos.

What is the function of the WonderPana 145 Lens Cap?

The WonderPana 145 Lens Cap is designed to protect the front lens element when not in use.

Can I use other filters with the WonderPana 66 FreeArc Essentials CPL & GND 0.9 Hard Edge Filter Kit?

Yes, the kit is designed to be versatile and can work with two 2.5 to 4.0mm-thick filters measuring 6.6in wide, or one 6.6in wide filter along with one 145mm round filter behind it.

Reviews about this item

Review Summary

2018-05-03T11:59:19

Rated 4 out of 5

Practice Practice!

It takes some getting used to handling these large filters but the results are great.

steve c.

2017-04-14T08:57:33

Rated 4 out of 5

Fantastic Addition

The system is great and it will a useful tool for my work in the field. The 6.6x8.5 bracket is a bit of a trick to fasten with the tiny screws. Be prepared to hurt your fingertips. Great filters for a great lens.

Hans A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Fotodiox WonderPana 66 FreeArc Specifications

WonderPana FreeArc Core

WonderPana FreeArc Core

Jump to...
  • Compatibility

    Sigma 14-24mm f/2.8 DG DN Art Lens

  • Dimensions

    7.4 x 5.9 x 1.4" (19 x 15 x 3.8cm)

  • Weight

    12.1 oz (343g)

Multi-Coated CPL Filter

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Material

    Hardened Anodized Aluminum, Optical Grade Glass

  • Thread Size

    145 x 1mm Standard Thread

  • Dimensions

    5.9 x 5.9 x 0.3" (14.9 x 14.9 x 0.8cm)

  • Weight

    3.4 oz (96.3g)

GND Filter

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Materials

    Premium Grade Optical Polycarbonate (CR39)

  • Density

    +3 Stop EV Value (at Densest Edge)

  • Dimensions

    6.6 x 8.5 x 0.08" (16.8 x 21.6 x 0.2cm)

  • Weight

    4.1 oz (116g)

WonderPana 6.6" Bracket

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Material

    Premium Grade Anodized Aluminum

  • Filter Width

    Any 6.6" (168mm) Wide Filter

  • Filter Thickness

    2 to 4mm

WonderPana 145 Lens Cap

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Material

    Premium Grade High Impact Plastic

  • Thread Size

    145mm x 1mm Standard Thread

  • Dimensions

    5.9 x 5.9 x 0.4" (14.9 x 14.9 x 1.1cm)

  • Weight

    2.9 oz (82g)

  • UPC Code

    847372052479

About Fotodiox WonderPana 66 FreeArc

Under the umbrella of advanced photography equipment, the WonderPana 66 FreeArc Essentials CPL & GND 0.9 Hard Edge Filter Kit for Sigma 14-24mm f/2.8 DG DN Art Lens stands out as a versatile and high-quality addition to any photographer's toolkit. Specifically designed for the Sigma 14-24mm f/2.8 DG DN Art Lens, this kit enhances the lens's performance by providing a perfect fit and optimal functionality.

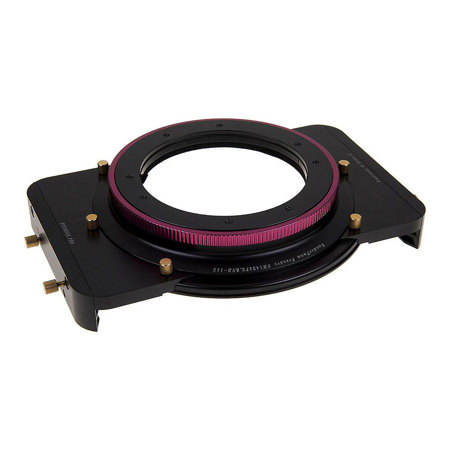

The kit includes a robust filter holder and a 6.6" bracket from Fotodiox, dedicated to attaching 145mm threaded filters and caps to the lens. The lens itself lacks filter threads, but with the included bracket, you can work with 6.6"-wide square and rectangular filters. Once assembled, the entire system offers a full 360-degree rotation, providing flexible placement of the filter in use.

The Fotodiox WonderPana 6.6" Holder Bracket is a two-piece assembly designed to be used in combination with a Fotodiox WonderPana FreeArc Core Unit. This allows for the convenient use of two 2.5 to 4.0mm-thick filters measuring 6.6in wide, or one 6.6in wide filter along with one 145mm round filter behind it. The WonderPana 6.6" Holder Bracket features a lightweight, aluminum-alloy construction that has a corrosion-resistant, black anodized finish for durability. A rigid pouch is included for storage and transport.

The kit also includes a 145mm Multi-Coated CPL Filter - Fotodiox Pro 145mm Slim MC-CPL Filter. This double threaded, multi-coated circular polarizer (MC-CPL) filter is made of optical glass and features a rotating ring to allow for light ray selection. It effectively removes unwanted reflections from non-metallic surfaces such as water or glass, saturates colors, and provides better contrast. The filter factor varies according to how the filter is rotated and its orientation to the sun or light source.

The 6.6x8.5" Graduated Neutral Density 0.9 Hard Edge Filter is another highlight of this kit. Fotodiox Pro 6.6x8.5" filters are the strongest in the industry at 2mm thick. They are guaranteed spectrally neutral to within + or - 3 in the a and b channels of the lab color space and are within + or - 2 in regards to total light transmission.

The WonderPana 145 Lens Cap, made from premium grade, high impact plastic, protects the front lens element when not in use. The WonderPana system is designed expressly for filtering UWA and WA lenses without vignetting, making it an essential tool for challenging shooting scenarios.

Fotodiox WonderPana 66 FreeArc Features

  • WonderPana FreeArc Core Features
  • Provides the ability to mount a variety of 145mm filters and more!
  • Doubles as a hood to help protect your lens from damage, scratches, fingerprints and the elements
  • Lightweight, aluminum-alloy construction with a corrosion-resistant, black anodized finish for durability
  • Attaches to the lens securely as if it was a part of the lens itself, ultra wide construction to eliminate vignetting
  • 145mm Multi-Coated CPL Filter Features
  • Minimize or eliminate reflections from water, windows, wet leaves, glass and eyeglasses
  • Darken the skies and add contrast to clouds for better separation and saturation
  • Premium grade optical glass filter; high quality, double threaded, slim MC-CPL filter
  • Premium grade anodized aluminum ring; 145 x 1mm standard filter thread
  • 6.6x8.5" GND 0.9 Hard Edge Features
  • Provides up to a 3-stop reduction of light in selective areas
  • Hard-edged line of transition between the dense and clear areas
  • Filter does not affect the overall coloration of the image
  • Constructed from optical polycarbonate (CR39) for clarity and durability
  • WonderPana 6.6" Bracket Features
  • Ability to mount a variety of WP66 Filters Including: 0.6 & 0.9 in Hard & Soft Edges
  • Slots for two WP66 filters to be mounted to a WonderPana 145/FreeArc at once
  • Can be used in combination with a variety of 145mm filters for added effect
  • Premium Grade Anodized Aluminum WonderPana66 Upgrade Bracket
  • WonderPana 145 Lens Cap Features
  • Designed for WonderPana 145 & FreeArc Cores
  • Finely Crafted Inner Pinch Lens Cap
  • Fits 145 x 1mm Standard Thread
  • Premium Grade, High Impact Plastic

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Specifically designed filter kit for Sigma 14-24mm f/2.8 DG DN Art Lens
  • Includes robust filter holder and 6.6" bracket for attaching 145mm threaded filters
  • Features 360-degree rotation system for flexible filter placement
  • 145mm Multi-Coated CPL Filter for optimal light ray selection and reflection removal
  • 6.6x8.5" Graduated Neutral Density 0.9 Hard Edge Filter for enhanced image quality
  • High impact plastic WonderPana 145 Lens Cap for lens protection when not in use

What's in the box:

  • WonderPana FreeArc Core Filter Holder
  • WonderPana CPL Filter
  • 6.6x8.5" GND 0.9 Hard Edge Filter
  • WonderPana 6.6" Bracket
  • WonderPana 145 Lens Cap
  • WonderPana Core Pouch
  • Fotodiox 2 Year Limited Warranty
