Fotodiox Macro Bellows for Canon EOS (EF, EF-S) Mount SLR Camera System
See all Fotodiox items

Fotodiox Macro Bellows for Canon EOS (EF, EF-S) Mount SLR Camera System for Extreme Close-up Photography

SKU: FDMBELLOWSE
(2)

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of photography is the Macro Bellows for Canon EOS (EF, EF-S) Mount SLR Camera System designed for?

This macro bellows system is specifically designed for extreme close-up photography. However, it can also be used for macro, micro, stereographic, slide/negative copying, and panoramic photography.

Can this macro bellows system be used with any camera?

Yes, this macro bellows system can be used with any camera that has the appropriate adapter. It is specifically designed for Canon EOS (EF, EF-S) mount SLR camera systems.

Can the Macro Bellows for Canon EOS (EF, EF-S) Mount SLR Camera System be used outdoors?

Yes, this macro bellows system is compact and lightweight, making it an excellent choice for outdoor nature close-up photography.

Does the Macro Bellows for Canon EOS (EF, EF-S) Mount SLR Camera System have electrical contacts?

No, this macro bellows system does not have electrical contacts. You will need to set your camera to manual focusing and manual exposure, or aperture priority mode for metering.

Can the Macro Bellows for Canon EOS (EF, EF-S) Mount SLR Camera System accommodate heavy cameras and lenses?

Yes, the macro bellows system is designed with a locking screw to prevent slippage, ensuring stability even with heavier camera and lens setups.

Shopper : is a slide holder available for copying slides?
Shopper : Why Did You Choose This?COREY B : If I keep stacking extenders and macro filters on backwards lenses, eventually I'll be able to see through stuff right?RICHARD R : I want to make some macro pictures.

Reviews about this item

Review Summary

2021-01-11T08:22:41

Rated 3 out of 5

OK for the price.

This bellows does the job of extending the lens for macro work. The plastic tripod mount looks a bit flimsy but is fairly stable. I prefer to mount the camera to the tripod since the bellows is pretty light. Some warnings: 1. Metering and focus must be done manually, since the contacts on the lens don't couple with the camera. 2. The adjustment for the amount of extension is very loose until locked into place. Not a problem unless you need a lot of precision for something like focus stacking. 3. You will need a lens with an aperture ring unless you want to be stuck with the smallest aperture. I bought the bellows for occasional fun with macro, so it suits my needs in spite of its limitations.

WILLIAM K.

2019-10-04T14:55:13

Rated 3 out of 5

Overpriced and inexpensively made

Poor milling on slide gears, "sloppy". It works but I'd look at others first

LARRY T.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Fotodiox Macro Bellows Specifications

  • Material

    Durable and lightweight aluminum-alloy construction; Corrosion-resistant, black anodized finish

  • Compatibility

    Canon EOS (EF, EF-S) Mount SLR Cameras - Popular models include:
    1d/1ds, Mark II, III, IV, X, C, 5D, 5D Mark II/III, 7D, 10D, 20D, 30D, 40D, 50D, 60D, 60Da
    Rebel xt, xti, xs, xsi, t1i, T2i, T3, T3i, T4, 300D, 350D, 400D, 450D, 500D, 550D, 1000D

  • Lens Mount

    Canon EF

  • Bellows Extension

    1.6-5.9" (40-150mm)

  • Tripod Mount

    1/4"-20 socket

  • UPC Code

    812759015019

About Fotodiox Macro Bellows

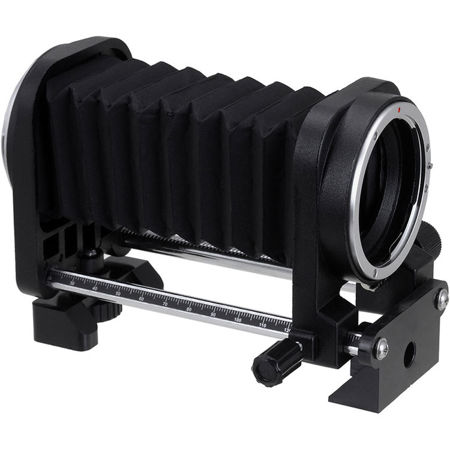

An indispensable tool for the dedicated photographer, the Macro Bellows for Canon EOS (EF, EF-S) Mount SLR Camera System is expertly designed for extreme close-up photography. This high-quality accessory is perfect for a range of applications, including macro, micro, stereographic, slide/negative copying, and panoramic photography.

The bellows system features a precise rack and pinion gear, allowing for minute fore and aft camera movements for ultra-accurate focusing. Its robust construction includes a locking screw to prevent slippage when angled up or down, ensuring stability even with heavier camera and lens setups.

Designed with versatility in mind, this macro bellows system is compatible with any camera equipped with the appropriate adapter. It can be conveniently mounted on a variety of accessories, including copy stands, tripods, and light stands, thanks to its standard 1/4" tripod screw fitting.

Despite its durable build, this macro bellows system maintains a compact size and lightweight design, making it an excellent choice for outdoor nature close-up photography. Please note that the bellows system lacks electrical contact, so manual focusing and exposure settings, or aperture priority mode for metering, will be required on your camera.

Experience the world in stunning detail with the Macro Bellows for Canon EOS (EF, EF-S) Mount SLR Camera System, the ultimate accessory for capturing high-quality, detailed images.

Fotodiox Macro Bellows Features

  • Best for extreme Macro photography, with MAX magnify ratio up to 8:1 (3:1 with 50mm Lens)
  • Bellows extend from 40mm to 150mm with locking thumb screw
  • All metal construction for heavy duty use
  • Built-in Tripod Socket for seamless sticking

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Expertly designed Macro Bellows for Canon EOS (EF, EF-S) Mount SLR Camera System
  • Precise rack and pinion gear for ultra-accurate focusing in extreme close-up photography
  • Durable construction with a locking screw for secure & stable usage with heavy cameras & lenses
  • Versatile compatibility with any camera equipped with the appropriate adapter
  • Compact and lightweight design, ideal for outdoor nature close-up photography
  • Requires manual focusing and exposure settings, or aperture priority mode for metering

What's in the box:

  • Macro Bellows
  • Fotodiox 2 Year Limited Warranty
