What is included in the WonderPana 66 FreeArc Essentials ND16 & GND 0.9 Soft Edge Filter Kit?

The kit includes a dedicated filter holder, a bracket for attaching 6.6"-wide rectangular filters, a 145mm Neutral Density 16 Filter, and Fotodiox Pro 6.6x8.5" filters. A rigid pouch for storage and transport is also included.

What is the function of the Neutral Density 16 Filter in the kit?

The 145mm Neutral Density 16 Filter is designed to darken the image by 4 stops. This allows you to slow down the shutter speed or use a larger aperture in bright light conditions, offering unique applications and the possibility of achieving otherwise impossible results.

What lenses is the WonderPana 66 FreeArc Essentials ND16 & GND 0.9 Soft Edge Filter Kit compatible with?

This filter kit is specifically designed for the Sigma 14-24mm f/2.8 DG DN Art Lens.

What makes the Fotodiox Pro 6.6x8.5" filters unique?

The Fotodiox Pro 6.6x8.5" filters are the strongest in the industry at 2mm thick. They are practically unbreakable and are guaranteed spectrally neutral to within + or - 3 in the a and b channels of the lab color space.

Is the WonderPana 66 FreeArc Essentials ND16 & GND 0.9 Soft Edge Filter Kit suitable for professional photographers?

Yes, the kit is a professional-grade solution that offers versatility and optimal performance, making it suitable for professional photographers.

Reviews about this item

Review Summary

2018-05-03T11:59:19

Rated 4 out of 5

Practice Practice!

It takes some getting used to handling these large filters but the results are great.

steve c.

2017-04-14T08:57:33

Rated 4 out of 5

Fantastic Addition

The system is great and it will a useful tool for my work in the field. The 6.6x8.5 bracket is a bit of a trick to fasten with the tiny screws. Be prepared to hurt your fingertips. Great filters for a great lens.

Hans A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Fotodiox WonderPana 66 FreeArc Specifications

WonderPana FreeArc Core

WonderPana FreeArc Core

Jump to...
  • Compatibility

    Sigma 14-24mm f/2.8 DG DN Art Lens

  • Dimensions

    7.4 x 5.9 x 1.4" (19 x 15 x 3.8cm)

  • Weight

    12.1 oz (343g)

ND Filter

Jump to...
  • Compatibility

    Sigma 14-24mm f/2.8 DG DN Art Lens

  • Materials

    Hardened Anodized Aluminum, Optical Grade Glass

  • Thread Size

    145 x 1mm Standard Thread

  • Density

    +4 Stop EV Value

  • Dimensions

    5.9 x 5.9 x 0.4" (14.9 x 14.9 x 0.9cm)

  • Weight

    3.4 oz (96g)

GND Filter

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Materials

    Premium Grade Optical Polycarbonate (CR39)

  • Density

    +3 Stop EV Value (at Densest Edge)

  • Dimensions

    6.6 x 8.5 x 0.08" (16.8 x 21.6 x 0.2cm)

  • Weight

    4.1 oz (116g)

WonderPana 6.6" Bracket

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Material

    Premium Grade Anodized Aluminum

  • Filter Width

    Any 6.6" (168mm) Wide Filter

  • Filter Thickness

    2 to 4mm

WonderPana 145 Lens Cap

Jump to...
  • Compatibility

    WonderPana FreeArc Filter Holder Systems

  • Material

    Premium Grade High Impact Plastic

  • Thread Size

    145mm x 1mm Standard Thread

  • Dimensions

    5.9 x 5.9 x 0.4" (14.9 x 14.9 x 1.1cm)

  • Weight

    2.9 oz (82g)

  • UPC Code

    847372052448

About Fotodiox WonderPana 66 FreeArc

Experience the superior functionality of the WonderPana 66 FreeArc Essentials ND16 & GND 0.9 Soft Edge Filter Kit, specifically designed for the Sigma 14-24mm f/2.8 DG DN Art Lens. This professional-grade kit is a comprehensive solution for photographers seeking versatility and optimal performance.

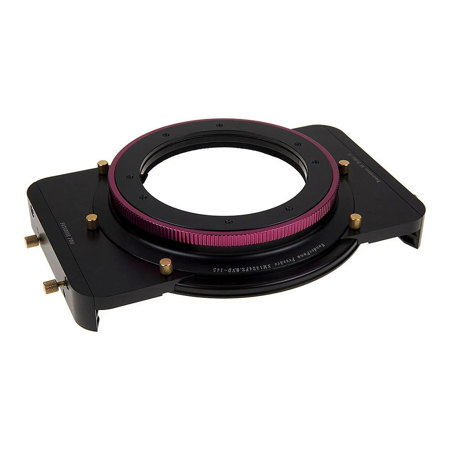

The kit includes a dedicated filter holder and a bracket for attaching 6.6"-wide rectangular filters. The WonderPana FreeArc Core Filter Holder, from Fotodiox, enables the attachment of 145mm threaded filters and caps to lenses that lack filter threads. The included bracket can be added for working with 6.6"-wide square and rectangular filters. Once assembled, the entire system rotates a full 360 degrees, allowing for flexible placement of the filter in use.

The Fotodiox WonderPana 6.6" Holder Bracket is a two-piece assembly designed to be used in combination with a Fotodiox WonderPana FreeArc Core Unit. When attached, it allows for the convenient use of two 2.5 to 4.0mm-thick filters measuring 6.6in wide, or one 6.6in wide filter along with one 145mm round filter behind it. The WonderPana 6.6" Holder Bracket features a lightweight, aluminum-alloy construction that has a corrosion-resistant, black anodized finish for durability. A rigid pouch is included for storage and transport.

The kit also includes a 145mm Neutral Density 16 Filter, a true neutral density filter designed to darken the image by 4 stops. The filter features an even, neutral gray color for creative photography applications. ND16 filter offers a 4-stop EV value which allows you to slow down the shutter speed or use a larger aperture in bright light conditions. Neutral Density filters have their unique applications and offer the possibility of achieving otherwise impossible results. ND filters reduces the amount of light reaching the film/CCD. The filter is double threaded and thinner than a standard filter to minimize any possibility of vignetting when used with a WonderPana 145 filter system.

The Fotodiox Pro 6.6x8.5" filters are the strongest in the industry at 2mm thick. Fotodiox 6.6x8.5" filters are practically unbreakable and are guaranteed spectrally neutral to within + or - 3 in the a and b channels of the lab color space. Fotodiox Pro filters are also guaranteed to be within + or - 2 in regards to total light transmission.

The WonderPana 66 FreeArc Essentials ND16 & GND 0.9 Soft Edge Filter Kit is a complete filter system designed expressly for filtering UWA and WA lenses without vignetting, making it an essential tool for photographers working in challenging shooting scenarios.

Fotodiox WonderPana 66 FreeArc Features

  • WonderPana FreeArc Core Features
  • Provides the ability to mount a variety of 145mm filters and more!
  • Doubles as a hood to help protect your lens from damage, scratches, fingerprints and the elements
  • Lightweight, aluminum-alloy construction with a corrosion-resistant, black anodized finish for durability
  • Attaches to the lens securely as if it was a part of the lens itself, ultra wide construction to eliminate vignetting
  • 145mm Neutral Density 16 Filter Features
  • Decrease the effective ISO of high-speed film and allow it to be used outdoors in bright situations
  • Enables slow shutter speeds to be used to record movement in subjects such as waterfalls or cars
  • Film subjects such as snow, sand or other bright scenes that can cause overexposure
  • Premium grade optical glass filter; high quality, double threaded, coated ND16 filter
  • Premium grade anodized aluminum ring; 145 x 1mm standard filter thread
  • 6.6x8.5" GND 0.9 Soft Edge Filter Features
  • Provides up to a 3-stop reduction of light in selective areas
  • Soft-edged line of transition between the dense and clear areas
  • Filter does not affect the overall coloration of the image
  • Constructed from optical polycarbonate (CR39) for clarity and durability
  • WonderPana 6.6" Bracket Features
  • Ability to mount a variety of WP66 Filters Including: 0.6 & 0.9 in Hard & Soft Edges
  • Slots for two WP66 filters to be mounted to a WonderPana 145/FreeArc at once
  • Can be used in combination with a variety of 145mm filters for added effect
  • Premium Grade Anodized Aluminum WonderPana66 Upgrade Bracket
  • WonderPana 145 Lens Cap Features
  • Designed for WonderPana 145 & FreeArc Cores
  • Finely Crafted Inner Pinch Lens Cap
  • Fits 145 x 1mm Standard Thread
  • Premium Grade, High Impact Plastic

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Professional-grade filter kit specifically designed for the Sigma 14-24mm f/2.8 DG DN Art Lens
  • Includes a dedicated filter holder and bracket for attaching 6.6"-wide rectangular filters
  • Features a 360-degree rotating system for flexible filter placement
  • Comes with a 145mm Neutral Density 16 Filter to darken the image by 4 stops
  • Contains Fotodiox Pro 6.6x8.5" filters, the strongest in the industry at 2mm thick
  • Designed expressly for filtering UWA and WA lenses without vignetting

What's in the box:

  • WonderPana FreeArc Core Filter Holder
  • Neutral Density 16 Filter
  • 6.6x8.5" GND 0.9 Soft Edge Filter
  • WonderPana 6.6" Bracket
  • WonderPana 145 Lens Cap
  • WonderPana Core Pouch
  • Fotodiox 2 Year Limited Warranty
