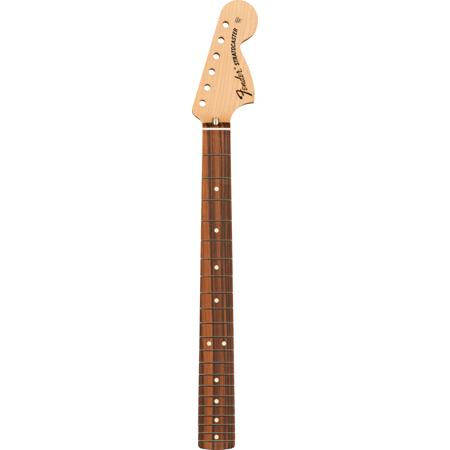

Fender 'U' Shape Neck for Classic Series '70s Stratocaster Guitar, 21 Vintage-Style Frets, 7.25" Radius Pau Ferro Fingerboard, Gloss Urethane

SKU: FE997003921 MFR: 0997003921
Earn VIP Reward Points

Key Features

  • Upgrade your '70s Strat with this genuine Fender 'U' shape guitar neck for vintage feel!
  • Enjoy vintage-style frets and a classic 7.25" radius for comfortable, authentic play.
  • Crafted with a gloss urethane finish for smooth playing and lasting durability on your guitar.
  • The pau ferro fingerboard offers rich tones and complements the maple guitar neck beautifully.
  • Pre-slotted nut ensures easy string spacing; final filing needed for perfect guitar setup.
  • Install this 'U' shape neck for enhanced playability and tone on your Stratocaster guitar.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$59.99

3 Year

$69.99

5 Year

$99.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-02-26T11:36:53

Rated 3 out of 5

Nice neck terrible nut

The neck was great but for the nut. The nut was cut completely incorrectly. The string spacing was off and the nut was too big for the nut slot. I had to replace the nut, which on a new neck is unacceptable.

Eli F.

2023-02-23T18:38:33

Rated 5 out of 5

Good Neck With Some Caveats

Five stars for the price that Adorama had this neck at, but at full price I'd be inclined to give it four or three and a half: the fretboard was extremely dry but the frets were pretty well polished and they seem dressed ok with no real fret sprout. There may be some better finished necks for just a bit more from small shops that prep aftermarket necks, but I wanted a neck pre-drilled for Fender tuners and the Deluxe neck screw pattern. Plus I wanted the Fender sticker on the headstock in case I sell this guitar in the future. Ordering pau ferro fretboards sight unseen is a gamble; grain and color will vary quite a bit. The one I got wouldn't have been my first choice but it's acceptable. Also worth noting is that the nut requires work before you string up your guitar.

KEVIN R.

2023-01-31T15:23:10

Rated 2 out of 5

Definitely didn't pass quality control the way it was sold

Neck was ok but the nut was double filed and needed to be replaced which is strange because it was brand new. Seems like a b or c product that didn't make the cut.

RICH H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Fender Neck Specifications

  • Compatibility

    Classic Series '70s Stratocaster Guitar

  • Style

    Vintage-Style

  • Neck Shape

    "U" Shape

  • Tuner Mounting Config

    Vintage-Style 2-Screw

  • Other Functions

    Each nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. (Please note: Final string slot filing and nut shaping modification is required to ensure proper fit and performance.)

  • Where Used

    Classic Series

  • Fingerboard Material

    Pau Ferro

  • Neck Material

    Maple

  • Nut Material

    Synthetic Bone

  • Position Inlays

    White Dots

  • Neck Finish

    Gloss Urethane

  • Truss Rod Nut

    Bullet Style

  • Truss Rod

    Bullet Style

  • Fingerboard Radius

    7.25" (18.42cm)

  • Scale Length

    25.5" (64.77cm)

  • Nut Width

    1.65" (4.19cm)

  • Number of Frets

    21

  • Fret Size

    Vintage-Style

  • Headstock Thickness

    0.540" (13.72mm)

  • Neck Thickness

    1st Fret - .820" (20.82mm), 12th Fret - .900" (22.86mm)

  • Peg Hole Diameter

    0.397" (10.08mm)

  • Dimensions

    3.4 x 7 x 30" (8.64 x 17.78 x 76.20cm)

  • Weight

    2.8 lbs (1.27kg)

  • UPC Code

    885978895267

About Fender Neck

FEATURED REVIEWS

Good Neck With Some Caveats

By KEVIN R.

Five stars for the price that Adorama had this neck at, but at full price I'd be inclined to give it four or three and a half: the fretboard was extremely dry but the frets were pretty well polished and they seem dressed ok with no real fret sprout. There may be some better finished necks for just a bit more from small shops that prep aftermarket necks, but I wanted a neck pre-drilled for Fender tuners and the Deluxe neck screw pattern. Plus I wanted the Fender sticker on the headstock in cas...

View full Review

Crafted at our Ensenada, Mexico manufacturing facility, this genuine vintage-style 3-bolt Stratocaster guitar neck features a comfortable "U"-shaped profile and 7.25"-radius pau ferro fingerboard with 21 vintage-style frets. Although this neck features a 3-bolt design typical of '70s Strats, only the bottom two neck mounting pilot holes are available, giving you the flexibility to use this neck with many different guitar bodies. The synthetic bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, while a gloss urethane finish on the back offers smooth playability.

Fender Neck Features

  • "U"-shaped neck profile
  • Pau ferro fingerboard with 7.25" radius
  • 21 vintage-style frets
  • Pre-slotted synthetic bone nut
  • Gloss urethane finish
  • Bullet-style truss rod adjustment

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Upgrade your '70s Strat with this genuine Fender 'U' shape guitar neck for vintage feel!
  • Enjoy vintage-style frets and a classic 7.25" radius for comfortable, authentic play.
  • Crafted with a gloss urethane finish for smooth playing and lasting durability on your guitar.
  • The pau ferro fingerboard offers rich tones and complements the maple guitar neck beautifully.
  • Pre-slotted nut ensures easy string spacing; final filing needed for perfect guitar setup.
  • Install this 'U' shape neck for enhanced playability and tone on your Stratocaster guitar.

What's in the box:

  • Fender "U " Shape Neck
  • Fender 1 Year Limited Warranty
