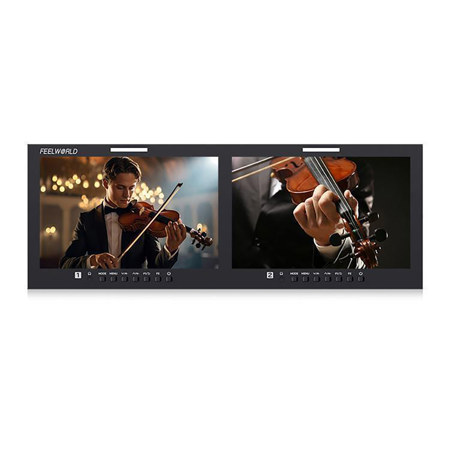

Feelworld D101 Plus Dual 10.1" Full HD 4RU Rack Mount LED Monitor, Supports 4K HDMI and 3G-SDI

SKU: FED101PLUS MFR: D101PLUS
Earn VIP Reward Points

Key Features

  • Dual 10.1" Full HD rack mount monitor, perfect for broadcast and production environments.
  • Supports 4K HDMI and 3G-SDI inputs, ensuring compatibility with professional video equipment.
  • Features waveform, vectorscope, and histogram for precise video signal analysis and monitoring.
  • Custom LUT support allows for accurate color calibration, enhancing your video production workflow.
  • Advanced features like focus assist and false color aid in achieving optimal image quality.
  • Rack mount design integrates seamlessly into your existing studio or mobile video setup.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Feelworld D101 Plus Specifications

Display

Display

Jump to...
  • Screen Size

    10.1" (17.78cm) x 2 IPS

  • Resolution

    1920x1200 pixels

  • Dot Pitch (H x W)

    0.1128 x 0.1128mm

  • Aspect Ratio

    16:10

  • Brightness

    500 cd/sq. m

  • Contrast Ratio

    1500:1

  • Backlight

    LED

  • Viewing Angle

    80 Degree /80 Degree (L/R), 80 Degree /80 Degree (U/D)

  • Inputs (Each LCD)

    1 x BNC (3G-SDI), 1 x HDMI (HDMI), 1 x BNC (Video), 2 x RCA (Audio L/R)

Outputs

Jump to...
  • Outputs (Each LCD)

    1 x BNC (3G-SDI), 1 x HDMI (HDMI), 1 x BNC (Video)

  • Audio (Each LCD)

    Audio Out: Stereo Headphone x 1

SDI Support Format

Jump to...
  • SDI Support Format

    720p (60/59.94/50/30/29/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

HDMI Support Format

Jump to...
  • HDMI Support Format

    480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF), 4K (3840 x2160p) (60/50/30/29.97/25/24/23.98), 4K (4096 x2160p) (60/50/30/29.97/25/24/23.98)

CVBS (Video) Support Format

Jump to...
  • CVBS (Video) Support Format

    PAL/NTSC auto recognition

Features

Jump to...
  • Advanced Features

    Waveform (RGB, YUV, Y), Vectorscope, Histogram (RGB1, RGB2, Y), Custom LUTs (up to 32), Focus Assist (Red, Green, Blue), Check Field (Red, Green, Blue, Mono), Embedded Audio, Over Exposure, Pixel to Pixel, Center Marker (Red, Green, Blue, Black, White, Gray), Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1), Image Flip (H, V, H/V), Image Freeze

  • Advanced Features (Contd.)

    Zoom Mode (2X, 4X, 9X, 16X, User), False Color, Scan Mode (Under Scan, Over Scan), Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User), Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen), Custom Color Temperature, Built-in LED Tally Indicators (Red, Green, Yellow)

General

Jump to...
  • Input Voltage

    DC9-24V

  • Power Consumption

    <=24W

  • Power Connector

    DC/4-pin XLR

  • Working Temperature

    14 Degree F to 140 Degree F (-10 Degree C to 60 Degree C)

  • Storage Temperature

    86 Degree F to 158 Degree F (-30 Degree C to 70 Degree C)

  • Install Way

    Rack Mount

  • Dimensions

    18.98 x 6.97 x 0.98" (482 x 177 x 25mm)

  • Weight

    4.51 lbs (2.04g)

  • UPC Code

    6971863818801

About Feelworld D101 Plus

Where precision meets versatility, the Feelworld D101 Plus Dual 10.1" Full HD 4RU Rack Mount LED Monitor is the ultimate solution for high-end broadcast monitoring. This advanced dual-display system features two independent 10.1-inch IPS panels, each boasting a resolution of 1920x1200, ensuring you capture every detail with clarity. With a wide 160-degree viewing angle, 8-bit color depth, and a contrast ratio of 1500:1, this monitor delivers vibrant and accurate color reproduction, making it ideal for critical video monitoring tasks.

Designed to support a variety of professional applications, the D101 Plus is equipped with rich video interfaces, including 3G-SDI, 4K HDMI, and CVBS inputs and outputs, along with L/R audio, ensuring seamless integration into any broadcast or post-production environment. The inclusion of Ethernet control allows for centralized management of all connected monitors from a single computer, enhancing operational efficiency.

The 4RU rack mount design is perfect for 19-inch width cabinet installations, making it a space-saving solution for video walls, broadcast trucks, and flyaway kits. Additionally, its innovative design allows for desktop use by simply adjusting the rear metal strips, offering flexibility in various settings.

The D101 Plus is packed with professional monitoring features such as 3D LUT support, waveform, vector scope, histogram, focus assist, and more. The ability to load up to 32 custom 3D LUTs via USB enhances color calibration and workflow efficiency, ensuring your creative vision is maintained throughout the production process.

Built-in waveform monitoring provides broadcast-accurate analysis of video and audio signals, eliminating the need for separate expensive scopes. The intuitive button operation and customizable function keys make it easy to control each screen independently, while the 3-color tally light system enhances team coordination during live broadcasts.

With flexible power supply options, including a DC 12V socket and a 4-pin XLR connector, the D101 Plus ensures reliable performance in any setting. Supporting up to 11 languages, this monitor is perfect for international projects, allowing for easy language adjustments on the go.

Whether you are in a broadcast studio, on a film set, or in a post-production suite, the Feelworld D101 Plus Dual 10.1" Full HD 4RU Rack Mount LED Monitor provides the precision, flexibility, and reliability needed for professional video monitoring.

Feelworld D101 Plus Features

  • 2x 10.1" 1920x1200 full HD IPS screen
  • Intuitive buttons + new menu interface, convenient to operation
  • 4RU rack mount design, easy to mount on TV wall or broadcast truck
  • Upload custom 3D-LUT, preview film look
  • With Waveform, Vector scope, RGB Histogram, Focus Assist, Monochrome etc. functions, help you accurately exposure and focus every shot
  • Connect to Ethernet remotely adjust the monitor via software
  • Front panel built-in 3 colors TALLY indicator, enhance shooting cooperation
  • Multiple signal ports (SDI/HDMI/CVBS), meet different needs.
  • Power using included 12-volt supply or use standard 4-pin XLR

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Dual 10.1" Full HD rack mount monitor, perfect for broadcast and production environments.
  • Supports 4K HDMI and 3G-SDI inputs, ensuring compatibility with professional video equipment.
  • Features waveform, vectorscope, and histogram for precise video signal analysis and monitoring.
  • Custom LUT support allows for accurate color calibration, enhancing your video production workflow.
  • Advanced features like focus assist and false color aid in achieving optimal image quality.
  • Rack mount design integrates seamlessly into your existing studio or mobile video setup.

What's in the box:

  • Feelworld D101 Plus Dual 10.1" Full HD 4RU Rack Mount LED Monitor
  • 3A Power Adapter
  • Mini USB to USB Cable
  • Tally Set
  • User Manual
  • Feelworld 1 Year Limited Warranty
