Review Summary
21.5" (54.6cm) IPS
16.7M
1920 x1080 pixels
0.24795 x 0.24795mm
16:9
1000cd/sq. m
1000:1
LED
89 Degree /89 Degree (L/R) 89 Degree /89 Degree (U/D)
1x SDI 3G-SDI, 2x HDMI-A (up to 4K@30), 1x USB (upgrade and LUT import)
SDI 3G-SDI, 1x HDMI-A (up to 4K@30)
Stereo Headphone, Speaker
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K UHD 3840x2160p (30/29.97/25/24/23.98 Hz)| 4096x2160p (24Hz)
Built-in Multi camera Delog LUTs
User 3DLUTs upload via USB (up to 32)
All waves(RGB, YUV, Y)
Vector
Histogram (RGB1, RGB2, Y)
Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
False Colors
Over Exposure (10-100)
Under Scan, Over Scan
Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
Pixel to Pixel
Center Marker
Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
Ratio Marker ( 4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Image Freeze
Selectable Color Temperature Presets
All waves (waveform, vector, histogram and embedded audio)
Waveform (RGB, YUV, Y)
Vector
Histogram(RGB1, RGB2, Y)
Focus Assist ( Red, Green, Blue three colors optional highlight over parts of the image in focus)
Embedded Audio
Over Exposure (10-100)
Check Field (Red, Green, Blue, Gray)
False Color
Nine Grid
Safety Marker ( 80%, 85%, 90%, 93%, 96%, 2.35:1)
Center Marker
Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Scan Mode (Under Scan, Over Scan)
Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
Image Flip (H Flip, V Flip, H_V Flip)
Zoom Mode(2X, 4X, 9X, 16X, User)
Freeze
Pixel to Pixel
3D-LUT
Colortemp (5600K, 6500K, 9300K, User)
Optional, not included
Lithium ion
Non-universal
1
Black
DC 12V
<=38W
32 Degree F - 122 Degree F (0 Degree C - 50 Degree C)
-4 Degree F - 140 Degree F (-20 Degree C - 60 Degree C)
23.46 x 17.32 x 9.45" (596 x 440 x 240mm)
32.6 lbs (14.8kg)
6971863817385

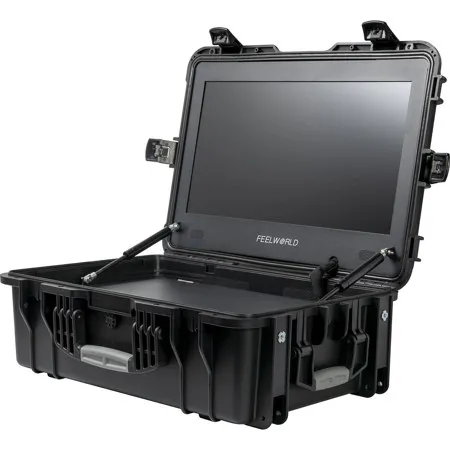

21.5-inch High Bright Portable Director Monitor
Monitor is an indispensable equipment for locating filming. The environment is harsh of outdoor, and the equipment moves frequently. If there is a monitor with portable, waterproof, dust-proof and high temperature resistance, it will be perfect. FEELWORLD WPC215 can be done! The important is that the panel integrated with the PP alloy protective case. For various harsh filming environments, WPC215 can easily handle it.
Full HD IPS Panel: Viewing clearly and capture every detail with confidence
With extremely high resolution IPS panel, provides excellent details; covers 72% NTSC color space, accurately reflect the original colors.
Professional Calman Software Calibration, True Color Presentation
Each monitor is calibrated by Calman software at the factory to ensure color accuracy and good reproduction.
1000nits, Daylight Viewable
Backed by 1000nits of brightness, WPC215 isn't afraid to get a little sun. Easily adjust the monitor brightness to fit your filming environment, especially suitable for outdoor filming in crew.
New UI Menu Interface
New UI menu, take the software functions are iconized, and the values at a glance. It is more convenient and quickly to operate the function.
Peaking Focus
It highlights the areas that are in focus so you are able to quickly focus the camera and not miss crucial shots.
Check Field
When enabled, hue and saturation adjusted quickly and accurately especially in broadcast area display.
Over Exposure
Areas of the image over a certain threshold are filled with a striped pattern to dramatically highlight areas where too much light is falling on the image sensor.
False Color
An image that depicts an object in colors that differ from those a photograph (a true color image) would show.
Anamorphic
Allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera.
Zoom
Zoom in and out by adjusting the horizontal and vertical axis of the screen position.
Load Custom 3D LUTs, Preview Filming Look in Field Shooting: Supports upload 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32).
Accurate waveform monitoring: Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode . WPC215 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment.WPC215 is equipped with multi operation buttons, can switch between one-button sources, custom shortcuts, and quickly adjust brightness, contrast, volume ,etc.to make shooting easier.
Dual HDMI + SDI Input and Output, Meet More Selection
The monitor equipped with SDI and 4K HDMI input and output, compatible with film camera, DSLR camera, mirrorless camera. And loop-out to other device via output port, realize multi person simultaneous monitoring. For audio, WPC215 provides two speakers and one 3.5mm earphone jack.
Multiple Power Supply, Long-lasting Power Shooting
The monitor offers 12V DC power interface, XLR connector (can be use 4A power adapter) and 2 V-mount battery plates for options. Provide strong power for outdoor filming.
Note: The battery not including.
Reserved Storage Space
There is a portion of space on the left side of suitcase inside, can put the accessories or other equipment. And with a metal cover for protection.
Multi Languages Support, Satisfy Different Needs
WPC215 built-in up to 11 languages, meet the different needed.
Multiple Mounting Points, Make Filming More Possibilities
There are two 1/4 threads both on the right side and top of suitcase, which can be installed with wireless video transmission or other equipment. In addition, the bottom of case built-in metal bracket, you can easy install the monitor on the tripod or light stand.
