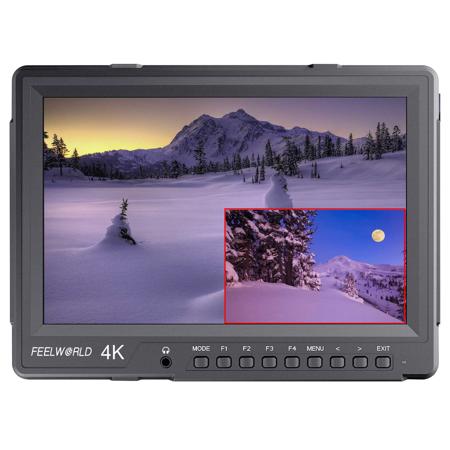

Feelworld 4K101HSD-256 10.1" IPS Panel 4K Broadcast Director Monitor with Dual Split Display, 2560x1600

More Auxiliary Functions

Now it's easy to get perfect focus and framing!
FEELWORLD 4K101HSD-256 monitor is ideal for high end broadcast monitoring because they feature high quality dual view, so you can monitor two input sources simultaneously. 4K101HSD-256 also includes focus assist, check field, image freeze, image flip, center marker, safe frame, pixel to pixel, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/videos.

• Wide view angle, 2K resolution (2560 x 1600), bright, colorful display
• HDMI2.0, 3G-SDI inputs and 3G-SDI loop-through output
• Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
• Built-in LED tally indicators (Red, Green, Yellow)

2560X1600 Extremely High Resolution
2K full resolution allows you to see every pixel - With 2560X1600 high resolution Precise Color, an impressive 298.9 PPI (Pixels Per Inch), blending individual pixels to the point that the naked eye can't define individual pixels. sharper images, brings you the perfect visual experience. You can shooting video with confidence for broadcast, post production, on set monitoring, broadcast trucks and more.

178deg. Wider View Angle
Enjoy consistent images from any perspective - 4K101HSD-256 uses an IPS panel, which provides a wide 178deg. /178deg. , let photographer, director, film crew members can see accurate, consistent and bright images from any point of view.

Flexible Front Panel Control
When you're in the middle of a job you can't be fumbling with controls to change settings on your monitor. 4K101HSD-256 gives you easy front panel control that you are able to quickly and easily controls auxiliary functions and input selection.

3G-SDI and 4K HDMI2.0 Inputs
Use pro or consumer cameras - FEELWORLD 4K101HSD-256 features high quality 3G-SDI and 4K HDMI2.0 inputs for connecting professional SDI and consumer HDMI cameras. Its SDI Input supports all SD, HD and SDI formats up to 1080p 60Hz and HDMI input supports formats up to 4K 2160p 60Hz, perfect support for almost all signal formats.

Professional 3G-SDI Output
Supports multiple monitor synchronization monitoring - 4K101HSD-256 includes professional SDI output, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality. You can also monitor audio using the 3.5mm stereo headphone jack or the built in speaker.

Dual View
PIP/ PBP Display - 4K101HSD-256 can see more video sources on a single monitor, supports dual view, single view monitoring functions, allowing you to get perfect two camera monitoring in any location! 2P-LR, 2P-TB, PIP meet your different screen display needs, you can adjust the brightness, contrast, hue, saturation, sharpness, backlight of the two split screen, to help the director to determine and adjust the screen consistency, create the ideal image.

Flexible Front Innovatively Designed TALLY4K101HSD-256 with 3 colors display
(Red,Green,Yellow) and controlled via DB-9 ports on the rear panel. Innovatively designed soft tally function can not only tell the photographer being recording status, also make you experience that professional technique of TV recording you the convenience for your creation.

Special Collapsable Sunshade
Outdoor sunlight visible - FEELWORLD 4K101HSD-256 monitor standard sunshade, easy to carry folding, for you in the light under, the location of shooting light to monitor the impact of the screen to provide an effective monitoring environment.

Convenient Power Solutions
Three power supply, monitoring anywhere you need it! - We've made it easy to power the monitor. The 4K101HSD-256 can be powered in three ways: with an DC 12V power, XLR power, lithium batteries. The 4K101HSD-256 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6, U60, Sony V and Anton battery plate of your choice.

Dual View
Meet your different screen display needs.

Input Swap
To exchange the input signal of the split screen.

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows white highlight over parts of the image in focus.

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%). You can switch the Mark color between Red, Green, Blue and White according to different tone of the subject.

Image Flip
The 90deg. , 180deg. , 270deg. of the image around flip.
