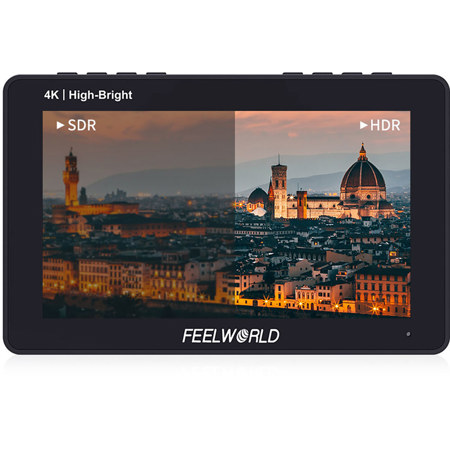

Feelworld F5 Pro X 5.5" Full HD IPS Touchscreen DSLR Camera Field Monitor with ANP97 Battery and AMC5 Bag Kit, Supports 4K HDMI

5.5" 4K HDMI Field Monitor
Compact, portable high brightness, 4K HDMI, easy to focus, accurate expose, flexible power are the advantages of F5 PROX. Level up creation for photographer, 1st AC and content creator.

Full HD IPS Panel - Viewing clearly and capture every detail with confidence
With extremely high resolution IPS panel, 16.7M(8bit) color gamut, provides excellent details, accurately reflect the original colors.

1600nits, Daylight Viewable
Backed by 1600nits of brightness, F5 PROX isn't afraid to get a little sun. The screen visible clearly even outdoor shooting, no need to use sun-hood.

Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Buttons Setup, More Option
Except touch control, you can also choose to use physical buttons for operation. In addition, there are three custom shortcut function keys (F1-F3) , you can be set as commonly used function keys, and the desired functions can be achieved with just press, improving shooting efficiency.

Peaking focus
It highlights the areas that are in focus so you are able to quickly focus the camera and not miss crucial shots.

Check field
When enabled, hue and saturation adjusted quickly and accurately especially in broadcast area display.

Over exposure
Areas of the image over a certain threshold are filled with a striped pattern to dramatically highlight areas where too much light is falling on the image sensor.

False color
An image that depicts an object in colors that differ from those a photograph (a true color image) would show.

Anamorphic
Allows you to use anamorphic lenses or adapters and see the mage unsqueezed, even if your camera does not de-squeeze in camera.

Zoom
Zoom in and out by adjusting the horizontal and vertical axis of the screen position.

Load Custom 3D LUTs Preview Filming Look in Field Shooting - Supports upload 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32). Insert the USB flash driver to the standard accessory Type-C to USB adapter, then connect with Type-C interface of F5 PROX.

Accurate waveform monitoring - Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode . F5 PROX becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

4K HDMI Input and Output
Support 4K@30Hz signal input and output, transmitted without loss, and the screen is clearer.

F970 External Install and Power Kit - Simplify your Filming Equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of filming equipment.

DC OUT, Power Your DSLR or Mirrorless Camera
F5 PROX provides auxiliary power out, allowing shooters to power their cameras. With a battery adapter cable (Optional), the F5 PROX extends camera run-time, while providing a more usable display.

Multiple Power Supply Ways
In addition to the power supply through the F970 battery plate and 12V DC power input (can be using 12V/1.5A adapter), it also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A).Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series

Multi Languages Support
F5 PROX built-in up to 11 languages, meet the different needed.

Multiple Mounting Points, Meet Different Need of Monitoring
The monitor features 4 standard 1/4" mounting threads (top, bottom, right side, middle back), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.

Convenient Mounting - Tilt Arm
The monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

• Allows F5 PROX to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc
• There are two small dots on the tilt arm, which are aligned with the monitor for installation, the connection is more stable, just grab the monitor to rotate without loosening the screws

Portable Sunshade, Easy Install
You also can use the sun-hood resist strong light when outdoor shooting. It is easy to install and portable.

Video Assist Functions
• 5.5-inch 1920x1080 full HD IPS screen
• Touch screen and intuitive button operation, meet different needs
• High Brightness 1600nits, visible in sunlight
• Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 32)
• Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment
• All waves
• Waveform (RGB, Y, YUV)
• Histogram(RGB1, Y, RGB2)
• Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
• False Colors
• Zebra Exposure
• Nine Grid
• Scan Mode (Under Scan, Over Scan)
• Zoom (2x,4x,9x,16x)
• Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X-2.00X)
• Pixel to Pixel
• Center Marker
• Safe Area (80%,85%,90%,93%,96%,2.35:1)
• Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
• Marker Color (Red, Green, Blue, White, Black)
• Check Field (Red/Green/Blue/Mono)
• Image Flip (H, V, H/V)
• Image Freeze
• Color Temperature Adjustment
