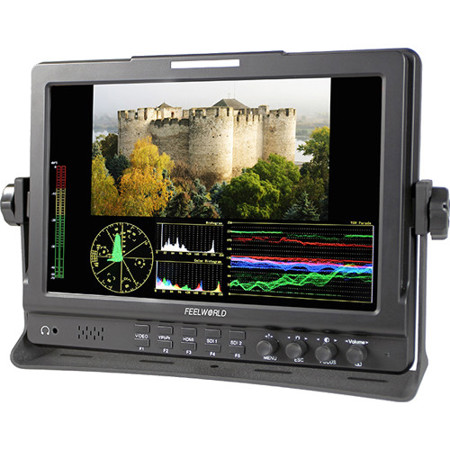

Feelworld 10.1" IPS 3G-SDI Seamless Switch Dual Color Camera Top Monitor, Waveform, Vectorscope, 1280x800

The FW1019 is one of the newest monitor with waveform, vector scope and RGB Histogram. These key features assist to shoot the professional video right in one time. FW1019 with 10.1 inch, 1280 x 800 high resolution IPS panel is optimal to display its advanced software features. FW1019 is also with false color and peaking focus assist, to enable the professional video to deliver the precision shots in the field.

• Seamless Switch
• Vectorscope
• Waveform
• Color Histogram
• Histogram
• Peaking Focus Assist(red/green/blue/white outline)
• Camera 5D II Mode
• Scan Mode
• False Color
• Exposure
• Squared segmentation(Zoom one of the images to realize full screen)
• Pixel-to-Pixel
• Mirror image(L/D,L/R)/Freeze
• Embedded Audio
• Zoom-in
• Ratio(4:3/16:9)
• Center Marker/screen Marker
• Color temp-adjust
• Markers (l6:9,4:3,2.35:1,1.85:1) with Red, Green, Blue, White, Gray, Black Color
• 10.1" 1280 x 800 IPS LCD Monitor
• HDMI, 3G/HD/SD-SDI, YPbPr, Video and Audio (L/R) inputs
• 650 cd/m2 Brightness
• 800:1 Contrast Ratio
• 178deg / 178deg Viewing Angle

FW1019's HDMI input is complimented by Dual 3G-SDI input/output along and the feature of headphone audio out. With dual SDI inputs, it is Seamless Switch and fast swap for toggling between both inputs. FW1019 also includes composite and component connections, to give you the versatility to support all of your signals and video equipment. The customized function buttons can be tailored for your workflow and optimization. Furthermore, FW1019 is well suited for a variety of video applications, from the studio to on location. Enjoy high-resolution, versatile monitoring wherever you need it.

Wider Viewing Angle
Enjoy Consistent Images from Any Perspective FW1019 uses an IPS panel, which provides a wide 178degree/178degree viewing angle and brightness output, up to 400nit. This means you'll be able to see accurate, consistent and bright images from any viewing point.

Innovation OSD Operation
FW1019 not only sets up five "F key" for waveform, vectorcope, color histogram, peaking focus and so on, but also has "3 group User Presets" to reserve the knob for professional users. Double functions and knob switch is FEELWORLD's exclusive technology feature, which will bring you more convenient and rapid operation feeling.

Multiple Inputs and Outputs
Multiple input formats to meet the need of the professional inputs and display functions with all HD, SD, analogue video signal input. The monitor comes with 3G HD-SDI, HDMI, Composite and Component Input and Output. FW1019 has both HDMI SDI in and out, to allow it not only display live signals, but also send them out to other monitors simultaneously. It's able to display live picture on multiple displays at once while still maintain the original video quality.

Screen Sunhood
New generation foldable sunhood allows you to get the ideal view effect in almost all the environment.

Portable Aluminum Suitcase
A specially designed aluminum portable case is offered to fill in all the accessories like monitor, stands, power adaptor and etc. It is not only easy to carry, but also protect the monitors from damaging efficiently.

Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a Chroma key or background.

Vectorscope
Vectorscope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes positions, that allows users to monitor color gamut range in real time.

RGB Histogram
Color histogram is a graphical display of the distribution of tones, exposure conditions can visually display screen is divided into R, G, B three-channel independent display. Suitable for HD-SDI and HDMI signal monitoring.

Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left: Dark, Right: Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.

Peaking Focus Assist
The Peaking Filter used to aid the camera operator in obtaining the sharpest possible picture, which is most effective when the subject is properly exposed and contains enough contrast to be processed. Peaking focus assist in FW1019 has High-low level to adjust.

Embedded Audio
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring.

Exposure
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern.

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.

Marker Types
It has 6 color for option (Red, Green, Blue, White, Black, Gray).

Zoom In(4x,9x,16x)
Image magnification is HD signal any part, an amplification for high quality close-up.

Frame Marker
Frame Mark (80%,85%,90%,93%,96%) view finding and composition.

Squared Segmentation
Zoom one of the images to realize the full screen.

Check Field
Under the Blue only mode, only the blue pixels are used to generate the image, because hue and saturation can be adjusted quickly and accurately.

Image Flip
The U/D, L/R of the image around flip.
