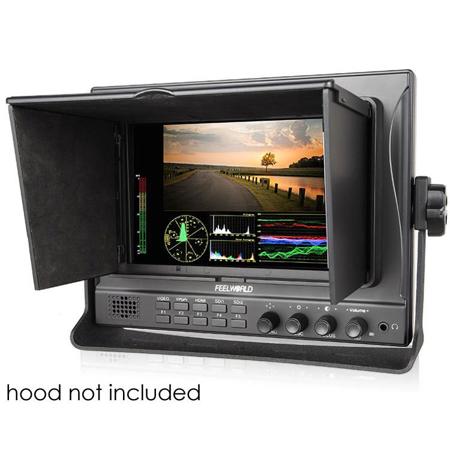

Feelworld 7" IPS Dual 3G-SDI On-Camera Field Monitor, Waveform, Vector Scope and RGB Parade, 1280x800

The FW789 is one of the newest with waveform, vectorscope and RGB Histogram is now available. These key features assist the video professional in getting the shot right the first time. The FW789's 7 inch 1280 x 800 high definition IPS panel is optimal for displaying its advanced software features. The FW789 is also equipped with false color and peaking, enabling the video professional to deliver precision shots in the field.

• 178 / 178deg Viewing Angle
• 1x HDMI, 2x 3G/HD/SD-SDI, YPbPr, Video and Audio (L/R) inputs
• 7" 1280x800 IPS LCD
• Brightness: 400 cd/m2
• Contrast Ratio: 800:1

The FW789's HDMI input is complimented by Dual 3G-SDI input/output along with the feature of headphone audio out. With 2 SDI inputs, fast swap for toggling between both inputs, Seamless Switch. The FW789 also includes composite and component connections, giving you the versatility to support all of your signals and video equipment. The customized function buttons can be tailored for your workflow and optimization. Furthermore, The FW789 is well suited for a variety of video applications, from the studio to on location. Enjoy high-resolution, versatile monitoring wherever you need it.

Wider Viewing angle
Enjoy Consistent Images from Any Perspective FW789 uses an IPS panel, which provides a wide 178 deg. /178 deg. viewing angle and brightness output of up to 400nit. This means you'll be able to see accurate, consistent and bright images from any point of view.

Innovation OSD operation
FW789 not only set up five "F key "for waveform, vectorcope, color histogram, peaking focus and so on. but also have "3 group User Presets", reserves the knob for professional users. Double functions and knob type coding switch are FEELWORLD's exclusive technology feature, which will bring you more convenient and rapid operate feeling.

Multiple Inputs and Outputs
Multiple input formats to meet all HD, SD, analogue video signal input and display demand Professional functions set. The monitor comes with 2x3G HD-SDI, HDMI, Composite and Component Input and Ouput.FW789 has both HDMI SDI in and out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video.

Foldable Sunhood
New generation foldable sunhood allows you get ideal view effect in almost all the environment.

Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a Chroma key or background.

Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes positions, that allows users to monitor color gamut range in real time.

RGB Histogram
Color histogram is a graphical display of the distribution of tones, exposure conditions can visually display screen is divided into R, G, B three-channel independent display. Suitable for HD-SDI and HDMI signal monitoring

Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis(Left: Dark, Right: Bright)and a stack of the number of pixels at each level of brightness along the vertical axis

Peaking Focus Assist
The Peaking Filter used to aid the camera operator in obtaining the sharpest possible picture, which is most effective when the subject is properly exposed and contains enough contrast to be processed.Fw789's peaking focus have High-low to adjust.

False color
False color can be intuitive observation and calculation in the scene lighting levels, make brightness or lighting value mapping for the display brightness of false color, from the darkest to the brightest, in turn display blue, cyan, green, yellow, orange and red.

False Color Key
To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor.

Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then Gray, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people)

Embedded Audio
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring.

Exposure
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern.

Pixel to Pixel
Enables filmmaker to check the image from signal source 1:1 without scaling.

Marker Types
It have 6 color for option (Red, Green, Blue, White, Black, Gray).

Zoom In (4x, 9x, 16x)
Image magnification is HD signal any part, amplification for high quality close-up.

Center Marker Frame Marker
FrameMark (80%, 85%, 90%, 93%, 96%) view finding and composition

Squared Segmentation
Zoom one of the images to realize full screen

Check Field
Under the Blue only mode, only the blue pixels are used to generate the image, because hue and saturation can be adjusted quickly and accurately.

Image Flip
The U/D,L/R of the image around flip.
