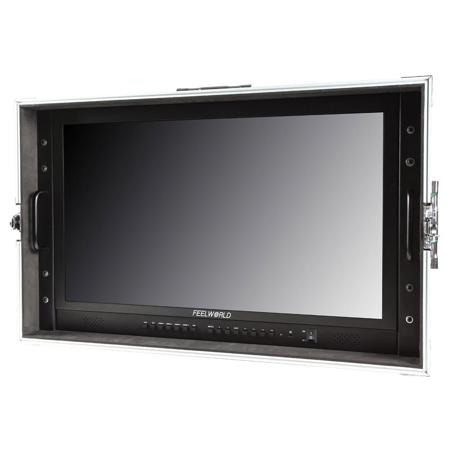

FeelWorld 23.8" IPS 4K UHD Carry-On Broadcast Monitor
See all Feelworld items

Feelworld 23.8" IPS 4K UHD Carry-On Pro Broadcast Monitor, 3840x2160

SKU: FEFWP2389HSD
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Feelworld Broadcast Monitor Specifications

  • Screen Size

    23.8"

  • Color Depth

    1.073G (10 bits)

  • Resolution

    3840 x 2160 pixels

  • Pixel Pitch (H x V)

    0.14 x 0.14 mm

  • Aspect Ratio

    16:9

  • Brightness

    310 cd/m2

  • Contrast Ratio

    1000:1

  • Backlight

    LED

  • Viewing Angle (H x V)

    178deg. / 178deg.

  • Input

    4x HDMI (1x HDMI 2.0 support 4K 60 Hz; 3x HDMI 1.4 support 4K 30 Hz)
    1x SDI (BNC)
    1x DVI
    1x VGA
    2x L/R audio (RCA)
    1x Tally

  • Output

    1x SDI (BNC)

  • Audio Output

    Headphone, Speaker

  • SDI Format Support

    480i/576i
    720p (60/59.94/50/30/29/25/24/23.98)
    1080i (60/59.94/50)
    1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

  • HDMI Format Support

    4K
    480i/576i/480p/576p
    1080i (60/59.94/50)
    720p (60/59.94/50/30/29/25/24/23.98)
    1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

  • Input Voltage

    13 to 18 VDC

  • Power Consumption

    <= 42W

  • Working Temperature

    14 to 122deg. F (-10 to 50deg. C)

  • Storage Temperature

    -4 to 140deg. F (-20 to 60deg. C)

  • Dimensions (LxHxD)

    Without Suitcase: 24.6 x 14.6 x 1.5" (62.48 x 37.08 x 3.81cm)
    With Suitcase: 27.9 x 15.9 x 10.6" (70.87 x 40.39 x 26.92cm)

  • Weight

    With Suitcase: 35.2 lbs (15.97kg)

20 Accessories for Feelworld 23.8" IPS 4K UHD Carry-On Pro Broadcast Monitor, 3840x2160

  • All Accessories (20)
  • Brackets & Mounts (1)
  • Batteries & Power Supply (10)
  • Cables & Adapters (4)
  • Headphones (5)
Green Extreme 99Wh 14.8V 6.7Ah Lithium-Ion Mini V-Mount Battery with USB-C Port
Green Extreme 99Wh 14.8V 6.7Ah Lithium-Ion Mini V-Mount Battery with USB-C Port
$149.00
Recommended
Anton Bauer LP2 Dual V-Mount Battery Charger with LED Display
Anton Bauer LP2 Dual V-Mount Battery Charger with LED Display
$599.00
Green Extreme Dual Position Li-Ion Battery Charging/Power Station (V-Mount)
Green Extreme Dual Position Li-Ion Battery Charging/Power Station (V-Mount)
$99.00
Green Extreme 150Wh Lithium-ion V-Mount Battery
Green Extreme 150Wh Lithium-ion V-Mount Battery
$149.00
Comprehensive 100' High-Definition 3G-SDI BNC to BNC Cable
Comprehensive 100' High-Definition 3G-SDI BNC to BNC Cable
$96.79
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
$113.00
Audio-Technica ATH-M20x Wired Over-Ear Closed-Back Pro Monitor Headphones, Black
Audio-Technica ATH-M20x Wired Over-Ear Closed-Back Pro Monitor Headphones, Black
$59.00
Audio-Technica ATH-M30x Professional Monitor Headphones, 96dB, 15-20kHz, Black
Audio-Technica ATH-M30x Professional Monitor Headphones, 96dB, 15-20kHz, Black
$79.00
Audio-Technica ATH-M40x Professional Monitor Headphones, Black
Audio-Technica ATH-M40x Professional Monitor Headphones, Black
$109.00
Ikan E-Image 7" Articulating Magic Arm Accessory Mount
Ikan E-Image 7" Articulating Magic Arm Accessory Mount
$69.99
IndiPRO PD-95SDIGI 14.8V 95Wh V-Mount Lithium-Ion Battery with LCD Display
IndiPRO PD-95SDIGI 14.8V 95Wh V-Mount Lithium-Ion Battery with LCD Display
$209.99
IndiPRO Two 95Wh V-Mount Lithium-Ion Batteries with Dual Battery Charger Kit
IndiPRO Two 95Wh V-Mount Lithium-Ion Batteries with Dual Battery Charger Kit
$499.99

About Feelworld Broadcast Monitor

The 23.8" 4K Ultra-HD Carry-On Broadcast Director Monitor from FeelWorld is a professional broadcast LCD monitor suitable for TV news production, broadcasting house, TV broadcasting truck and other field applications. It displays images and videos in 4K resolution (3840 x 2160). This field monitor comes with a durable and portable aviation aluminum case. This quad-split LCD monitor comes with multiple interface including four HDMI, a 3G-SDI, a DVI, a VGA and two audio (L/R) inputs and one 3G-SDI loop-through output. It also features a 3.5mm stereo headphone jack and a built-in speaker for monitoring.

• 178deg / 178deg Viewing Angle
• 4x HDMI, SDI, DVI, VGA and 2xL/R audio (RCA) inputs
• 23.8" 3840x2160 Ultra HD LCD Monitor
• Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
• Peaking Focus Assist
• Built-in SD to HDMI Cross Converter
• Brightness: 310 cd/m2
• Contrast Ratio: 1000:1

Feelworld Broadcast Monitor Features

  • Wide view angle, 4K resolution (3840 x 2160), bright, colorful display
  • Four HDMI, 3G-SDI, DVI, VGA, and Audio (L/R) inputs and 3G-SDI loop-through output
  • Designed for field production
  • Includes a portable aviation aluminum case
  • Quad-split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
  • Display rotate (0Deg, 90Deg, 180Deg, 270Deg)
  • Check field (red, green, blue)
  • Full Screen, 16:9, 4:3, and 1:1 aspect ratio
  • Center marker and screen marker (80, 85, 90, 93, and 96%)
  • Line color (red, green, blue, white)
  • Color temperature adjustment
  • Additional features include peaking focus assist, overscan, image freeze, and zoom
  • Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
  • Built-in LED tally indicators (red, green, yellow)
  • 178deg / 178deg Viewing Angle
  • 4x HDMI, SDI, DVI, VGA and 2xL/R audio (RCA) inputs
  • 23.8" 3840x2160 Ultra HD LCD Monitor
  • Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
  • Peaking Focus Assist
  • Built-in SD to HDMI Cross Converter
  • Brightness: 310 cd/m2
  • Contrast Ratio - 1000:1

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • FeelWorld 23.8 " 4K UHD Carry-On Broadcast Monitor
  • Sun Shade
  • Power Supply
  • V-Mount Battery Plate
  • Mini HDMI Cable
  • Tally Kit
  • Aluminum Case
  • FeelWorld 1 Year Limited Warranty
