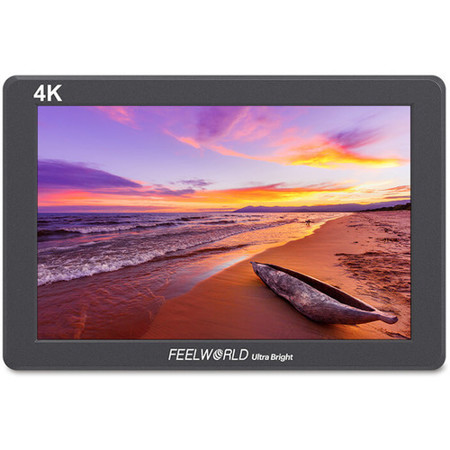

Feelworld P7S 7" IPS Full HD 3G-SDI/HDMI On-Camera Monitor with 4K Support & Built-In Speakers, 1920x1200, Aluminum Design

P7S Aluminum Design 7" 200 nits SDI Camera Monitor
With super brightness, professional features and aluminum housing, it is ready for the daily rigors of field production. This monitor is fully viewable in bright sunlight! Made of aluminum makes it rugged and reliable.

Professional Monitoring Tool
The P7S has extensive monitoring tools, including histogram, focus assist, embedded audio, false colors, zebra exposure, ratio marker, anamorphic mode, zoom etc. It could help you create the wonderful shots.

Image Quality to Fuel Your Creative Flow
Feelworld P7S provides 7" an 8-bit IPS screen with 1920x1200 resolution, 323ppi pixel density, professional color calibration to overcome natural LCD color drift. The P7S displays sharper images, better text clarity and color reproductions regardless of your shooting conditions. The P7S has a wide viewing angle so that everyone on set can review the action.

High Bright 2200nit for Outdoor Shooting
Feelworld P7S ultra-high brightness monitor uses the "golden size" 7-inch panel. The P7S monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 5 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it a great choice for gimbals, Steadicam and director's monitors, delivering a crisp image without the bulk and viewing angle restrictions of a sun hood.

Aluminum Metal Frame

Light weight, durable construction
The frame of the FEELWOELD P7S is made from aircraft grade aluminum which means you get an incredibly sturdy metal that barely adds any weight to your camera. It's also comfortable enough and still light enough which makes it perfect for bracing the mounting points.

Simple, Practical Design
It's no surprise the P7S's simple, practical design makes it the ideal choice for the filmmakers, cinematographers, photographers and videographers prefer due to its size and weight for field production. It's easy to add professional monitoring to any SDI or HDMI camera with Feelworld P7S! And also it's easy to connect, easy to mount, with a slim and simple design.

True Color - Professional Color Calibration

Use Rec.709 color standard
Feelworld uses the professional Rec.709 HD color standard and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction
Feelworld monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

Intuitive Controls and Menus
The menu controls are intuitive and easy to use. On the top of the monitor, you'll get the full button layout. Three different feature buttons which are programmable to the various features that you use the most. Maybe you could set one of the shortcut keys to the image flip function so that the screen can be flipped over quickly when shooting upside down.

When the menu is not displayed, press < button for volume shortcut, then press < and > button to adjust the volume; press > button for backlight shortcut, then press < and > button to adjust backlight brightness. The monitor will automatically save the parameters you have previously set and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.

Wide Camera Compatibility

Connect to professional cameras, camcorders and DSLR's
The compact design of the P7S includes 4K HDMI and 3G-SDI so you can connect them to virtually any DSLR, prosumer or professional camera! The HDMI connection is compatible up to 4Kp30 and the SDI connection has compatibility up to 3G, support for almost all signal. You can also monitor audio using the 3.5mm stereo headphone jack or, the built in speaker.

3G-SDI and 4K HDMI Loop-out
The P7S has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

Connect to Wireless Transmitter
Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.

Connect to Director Monitor
Display live picture on multiple displays simultaneously.

DC Output

Use the P7S to power your DSLR or mirrorless camera
The Feelworld P7S is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the P7S provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the P7S extends camera run-time, while providing a more usable display. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

Mounting Point

Attach to cameras, equipment carts or hang it anywhere
Feelworld P7S features standard 1/4" mount points (left, right, bottom) for attaching it to cameras and rigs. When you are using the upside down installation, you can turn on the image flip function to maintain the correct orientation.

Continuous Power

Plug it in or go mobile
For power, there's a 12V DC input and a F970 battery plate (standard). You could connect the 12V DC input you get continuous power or you can run it off of Sony compatible F970 rechargeable batteries. You can also choose D28S/D54, LP-E6 or U60 battery plate to install other different types of batteries for power supply.

The P7S does not include a battery and needs to be purchased separately. Since the P7S is super bright, it's high consumption:=18W. Please note that different battery usage times for different capacities are different. Choosing a larger battery capacity can extend the monitor's operating time and the Sony F970 can use about 2-3 hours. When you use the P7S indoors, you can extend battery life by lowering the backlight of your monitor. For the power adapter (optional), use a DC7-24V output with a power supply greater than 18W, such as a 12V / 3A power adapter.

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green and will turn yellow when exceeds -20dB and turn red when exceeds -9dB.

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.

False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

Exposure (Zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.

Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User)
You can choose 1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20x-2.00x. Built-in selection of no squeeze, 1.3 or 2.0 allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0 mag mode, magnifies the center of your image so you can check the focus of your scaled image.

Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.

Nine Grid
Nine Grid Zoom: Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.
