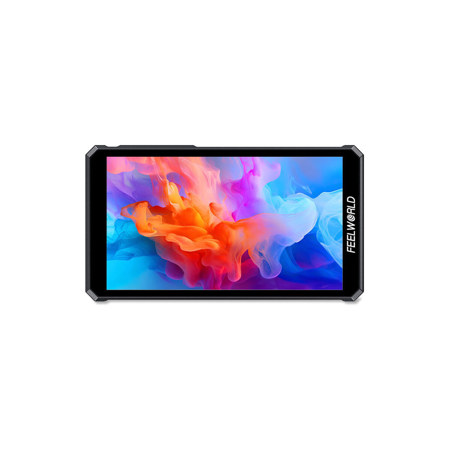

Feelworld PS6 5.5" Full HD OLED Vertical Camera Field Monitor, Supports 4K HDMI

SKU: FEPS6 MFR: PS6
Earn VIP Reward Points

Key Features

  • Experience stunning clarity with the 5.5" Full HD OLED display, perfect for critical focusing.
  • Achieve precise shots with 1080 x 1920 resolution, ensuring every detail is captured beautifully.
  • Monitor your footage confidently with 550 nits brightness, even in challenging outdoor lighting.
  • Seamlessly connect to your camera using the 4K HDMI input, supporting various video formats.
  • Power your shoots effortlessly with the NP-F battery plate, offering reliable, extended use.
  • Enjoy versatile mounting options with multiple 1/4"-20 threads for any filming setup.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Feelworld PS6 Specifications

Display

Display

Jump to...
  • Panel Type

    OLED

  • Display Size

    5.5" (14cm)

  • Native Resolution

    1080 x 1920

  • Aspect Ratio

    9:16

  • Touchscreen

    No

  • Maximum Brightness

    550 nits / cd/sq. m

  • Contrast Ratio

    Near Infinite (Black Pixels Emit No Light)

  • Color Support

    16.7 Million Colors (8-Bit)

  • HDR Support

    No

  • LUT Support

    No

  • Image Controls

    Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Histogram, Image Flip, Vectorscope, Waveform, Zebra

Inputs/Outputs

Jump to...
  • Video I/O

    1x HDMI 2.0 Input
    1x HDMI 2.0 Output

  • Embedded Audio

    HDMI

  • Audio I/O

    1x 1/8" / 3.5 mm Headphone Input

  • Built-In Speaker

    No

  • Power I/O

    1x USB-C Input

  • Other I/O

    No

  • Media/Memory Card Slot

    Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]

Wireless

Jump to...
  • Wi-Fi

    No

  • Bluetooth

    No

  • Mobile App Compatible

    No

Format Support

Jump to...
  • Video Format

    HDMI:
    DCI 4K: 60/50/30/29.97/25/24/23.98
    UHD 4K: 60/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50/30/29.97/25/24/23.98
    576p
    576i
    480p
    480i

  • Input Power

    5 VDC at 2 A

  • Battery

    1x L-Series Mount on Fixed Plate

  • Power Consumption

    10 W (Maximum)

Mounting

Jump to...
  • Tripod/Accessory Mounting

    Top/Bottom/Left/Right
    1x Anti-Twist 1/4"-20 Female

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    NP-F

  • Battery Quantity

    1

General

Jump to...
  • Environmental Resistance

    No

  • Operating Conditions

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Storage Conditions

    -22 to 158 Degree F (-30 to 70 Degree C)

  • Dimensions

    5.7 x 3.2 x 0.9" (144 x 81 x 23.9mm)

  • Weight

    5.2 oz (148g)

  • UPC Code

    6971863819044

About Feelworld PS6

Redefining the New Standard of Mobile Monitoring
The FEELWORLD PS6 features a brand new 5.5-inch OLED display with 100% DCI-P3 color gamut and million:1 contrast ratio, delivering pixel-perfect color accuracy and exquisite shadow gradation for true-to-life image reproduction. Its ultra-lightweight design redefines portability for monitoring equipment, serving as a creator's portable "second pair of eyes" for on-the-go production. The switchable menu system (horizontal/vertical) seamlessly adapts to live streaming or vertical short-video shooting. Built-in nine grid composition, focus assist, waveform and other auxiliary tools-empower solo creators to achieve studio-grade precision with ease. Equipped with HDMI 4K 60Hz ultra-low latency transmission, it captures high-speed motion in real time, eradicating motion blur and frame tearing for cinematic workflows, vlogging, and outdoor shoots.

Newest OLED Display - Independent Light Control, Ultimate Black Performance
The new generation of OLED screen with its independent pixel light control technology, eliminating the need for a traditional LCD backlight. It enables precise light control, delivering three-dimensional, vivid visuals with brighter highlights, deeper blacks, and rich details preserved in both bright and dark scenes. Provides stunning visual experience.

Film-grade Ultra Wide Color Gamut - More Accurate Color Presentation
The OLED panel covers 100% DCI-P3 color gamut, which has better color expression ability, restores more accurate colors, and displays various details of the image. Each monitor is precisely calibrated using the OLED screen dedicated color analyzer CA-410.

0.63ms Instant Response, Capturing Every High-energy Moment
Ultra-fast response time ensures smoother high-speed visuals with zero ghosting, delivering crystal-clear rendering of every detail.

148G Super Lightweight
The ultra lightweight body only 148g is lighter than a smartphone. Perfect for mobile shooting and no heavy load, inspire your creation.

Innovation Vertical Display UI - Gravity Sensing Horizontal/Vertical Menu Switching
Built in gravity sensing, PS6 menu can automatically switch between horizontal and vertical screens or be also manually set. Very suitable for short drama and short video shooting monitoring and analysis.

Sensitive Full Touch Control
The innovative OLED touch screen user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Load Custom 3D LUTs, Preview Filming Look in Field Shooting - Supports upload 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via SD Card(up to load 32). Insert the SD card to the SD card slot of the monitor to import.

Accurate waveform monitoring - Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. PS6 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

HDMI2.0 Input and Output, High Speed Transmission
Equipped with 4K HDMI input and output, support up to 4096x2160/60p &3840x2160/60p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.

Flexible Power Supply
You can use the accompanied power adapter via Type-C input to get continuous power (suitable for 5V/2A or more than 2A power adapter)or install NP-F series battery via NP-F battery slot which on the rear of the monitor for mobile application. Install one F750 battery (4400mah) last for more than 3 hours.

Note: The battery excluding, please purchase separately.

NP-F Battery Optional Recommendation
The power consumption of PS6 is 10W, and you can choose a suitable FEELWORLD NP-F battery to power it according to your shooting needs.

10 Languages Supporting
PS6 built-in up to 10 languages, that means PS6 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 4 standard 1/4 mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180 Degree viewing angle and base with 360 Degree rotation.

Feelworld PS6 Features

  • 5.5" OLED: 100% DCI-P3, million:1 contrast, CA-410 calibrated
  • Ultra-Fast: 0.63ms response, zero ghosting high-speed capture
  • 148g Super-Light: Lighter than smartphone, gimbal-ready
  • Gravity UI: Auto horizontal/vertical menu switch for vlogging
  • Full Touch: Tap/swipe control, no buttons needed
  • Pro Scopes: Waveform (RGB/YUV/Y), vector, histogram, audio phase
  • 32 Custom LUTs: SD card .cube upload + 4 DE-log built-in
  • 4K HDMI I/O: 4096x2160/60p, 3.5mm headphone jack
  • Power Options: NP-F plate (3hr F750), 5V/2A Type-C
  • 4x 1/4" Mounts: Top/bottom/right + mini hot shoe (180 Degree /360 Degree )
  • 10 Languages: Global menu support

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience stunning clarity with the 5.5" Full HD OLED display, perfect for critical focusing.
  • Achieve precise shots with 1080 x 1920 resolution, ensuring every detail is captured beautifully.
  • Monitor your footage confidently with 550 nits brightness, even in challenging outdoor lighting.
  • Seamlessly connect to your camera using the 4K HDMI input, supporting various video formats.
  • Power your shoots effortlessly with the NP-F battery plate, offering reliable, extended use.
  • Enjoy versatile mounting options with multiple 1/4"-20 threads for any filming setup.

What's in the box:

  • Feelworld PS6 5.5" Full HD OLED Vertical Camera Field Monitor
  • HDMI Type-A Cable
  • Micro-HDMI Type-D Cable
  • USB-A to USB-C Cable
  • Power Adapter
  • Mini Hot Shoe Mount
  • Allen Wrench
  • Cable Tie
  • User Manual
  • Feelworld 1 Year Limited Warranty
