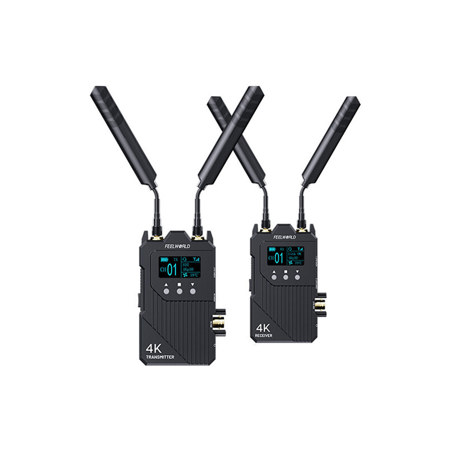

Feelworld WT1S 1000' SDI + Dual HDMI Wireless Video Transmission System

Enjoying Real-Time, Stable, Flexible Video Monitoring Anywhere
FEELWORLD WT1S TX/RX set is a real-time wireless video transmission system which features 5GHz transmission technology, supports up to 4K30p ultra HD image, integrated with intercom and live streaming. Equipped with SDI/HDMI input and output and other features built for professional filmmaking, the WT1S empowering filmmakers, crews, and content creators everywhere.

4K Crisp and Sharp Video Transmission
With 4K/30fps transmission capability, WT1S presents image with superior clarity, detail and realism, making it competent for filmmaking or other professional applications.

1000FT LOS Range and 0.08S Low Latency
The WT1S has more than 1000ft (300m) hassle-free and reliable range for wireless video and audio transmission; 0.08S low latency achieves real-time monitoring.

Preset Grouping and Pairing, Easy Setup
Time is important for busy crew members,WT1S supports preset grouping and pairing, don't need to repetitively and manually set up the transmitter and receivers.

Note: In grouping mode, the grouping name and channel of TX and RX need to be consistent for automatically linking.grouping mode transmission

Full Duplex Intercom
Meet the real-time intercom between the director and the photographer The WT1S features intercom function, which enable communication between the director and the photographer, save your time and costs to set an extra intercom system.

Effortless Streaming
With the Type-C to Ethernet adapter accessory, video feed straight out of RX (the receiver) will be used for live streaming on OBS, VLC on your PC without further encryption and decryption via a video capture device. There are Static IP and Route IP settings.

OLED Viewable Design
Both TX and RX offers a OLED display. With it, you can monitor the status and setting information, including battery level, current group, transmission resolution, frame rate, current channel and more. Improve the user's experience.

One Transmitter to 4 Receiver, Meet More Monitoring Needs
WT1S supports WPS pairing manually, one transmitter allows to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

Smart Channel Scan
The receiver comes with smart channel scan function, this helps determine which ones are occupied and select-able.

TX to RX, Switching Freely
The transmitter can be flexible switched as a receiver. If you purchase two sets WT1S, you can setup 1 Transmitter, 3 receivers.

SDI + HDMI Inputs and Outputs, Seamless Connectivity
The transmitter features SDI input HDMI input and output, the receiver provides SDI and dual HDMI output, meet various shooting needs.

Smart APP Monitoring and Recording
The APP "Feelworld Wireless 2" offers a huge range of monitoring functions that can enhance your shooting workflow.

Note: You can get the monitoring function from the Android APP at present, record and other functions such as waveform, histogram, etc. are developing

Multiple Power Options
The WT1S supports a wide range of power options DC-6V to 16V, NP-F battery slot for NP-F batteries, and USB-C charger port.

Efficient Cooling System
WT1S offers fan cooling system, preventing overheating and ensuring stable signal transmission. It is default to turn on and automatically adjusts the fan speed based on its temperature, ensuring effective heat dissipation. In addition, you can turn off the fan manually when you need a no noise environment.

Mounting on Anywhere
Both the transmitter and receiver has a 1/4 screw thread and with compact & lightweight body,WT1S can be mounted on camera arms, cold shoes and any other places.
