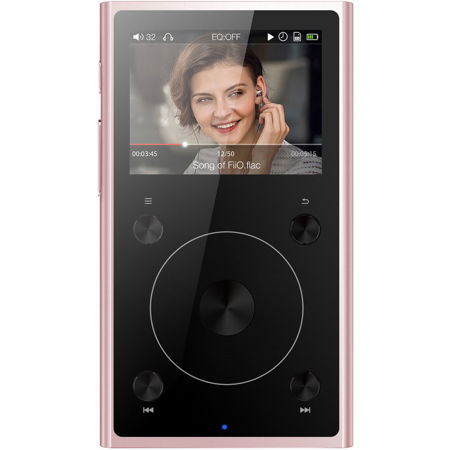

FiiO X1-II 2nd Gen Portable High Resolution Lossless Music Player, Rose Gold

SKU: FIX1IIGOLD

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2018-05-24T08:16:55

Rated 5 out of 5

Great Price; Great Product

Using this a regular MP3 player (i'm not a hifi guy) and it's doing the job well!

CHEZ G.

2018-05-24T08:16:36

Rated 5 out of 5

Great Price; Great product

Using this a regular MP3 player (i'm not a hifi guy) and it's doing the job well!

CHEZ G.

2018-03-16T09:54:10

Rated 3 out of 5

Nice, but not compatible.

Nice player, however it is not compatible with any of my sound systems, so I'am returning it.

GREG R.

2017-06-06T12:18:51

Rated 4 out of 5

Awesome

Its great! Finally found something to rid myself of apple garbage! Im very happy with it. Only complaint i have is it is slow to turn on initially.

Zachary R.

2017-05-19T14:56:42

Rated 2 out of 5

Bad user interface

Before talking about the product, i think i should mention that I've been using Apple iPod Classic for about 10 years until the last 1 just died. I really liked the iPod Classic. As i travel a lot i use MP player in order not to drain my cell phone battery for playing music, i also prefer to listen to albums, but as i don't like to choose what to listen i really liked the Apple feature of "shuffle albums". Unfortunately, The FiiO doesn't have the option of playing the whole library by albums in a random order. The touch wheel of the player is also very annoying. When listening to music you can hear a gap between the songs (even though i chose in the setting that there will be no gap, i didn't had this issue with the iPod) also from time to time it seems the player decide to skip a song in the middle or to pause. The price of the FiiO is definitely an advantage and i also like that you can change the memory capacity by changing the memory card. Overall it is a good value for money, but you should be aware to its drawbacks, THE GOOD: *Affordable *Value for money *Interchangeable Micro SD memory card THE BAD: *User interface is missing features i like *Touch wheel is very sensitive and annoying *Gap between songs *No shuffle albums *Pause or skip songs on it's own

RONEN T.

2017-05-05T19:24:25

Rated 4 out of 5

Nice mp3 player for the price.

This is a nice mp3 player for the price. The only problem is the user interface is not designed as well as I would like. Biggest issue is the inability to select a playlist of individual songs without having to start by playing the song. I gave it 4 stars for it's sound quality, price and size. I'm taking away a star for the not so intuitive interface.

Mel C.

FiiO X1-II Specifications

  • Screen Size

    2.0" color display

  • Screen Resolution

    320x240 Pixels

  • Materials

    Aluminum alloy shell with arc design and exquisite sandblasting texture for perfect grip. All the buttons are also made of CNCed aluminum alloy, wearable and wouldn't fade

  • Port

    Micro USB

  • Power Source

    Computer USB port, USB charger, Power bank

  • Battery

    1800mAh 3.7V Lithium-Polymer battery

  • Storage

    Supports up to 256GB Micro SD card

  • Micro USB

    Data transfer/Charging

  • Headphone Port

    3.5mm port

  • Line Out

    3.5mm port (share the same port with Headphone out, can be switched in system settings)

  • Status Indicators

    Working: Blue
    Charging: Red
    Full Charge: Green
    Display screen shows detailed battery information

  • Supported Formats

    APE: Supports up to 192kHz/24 bit for Fast compression, Supports up to 96kHz/24 bit for Normal and High level compression, Not supporting Extra High and Insane compression
    FLAC: Supports up to 192kHz/24 bit at all compression levels
    ALAC: Supports up to 192kHz/24 bit (Apple's lossless music compressed format)
    WAV: Supports up to 192kHz/24 bit

  • Supported Formats (Cont.)

    WMA: Supports up to 48kHz/24 bit
    AAC: Supporting AAC as used in Apple's Tunes, Phone, iPod, Pad, etc.
    OGG: Supported
    MP3: Supported
    MP2: Supported

  • Bluetooth

    Dual Mode Bluetooth V4.0

  • Touch Wheel

    Supported

  • In-Line Remote Control

    Supported (Does not support volume control of Apple Earpods)

  • Firmware Upgrade

    Via Micro SD Card

  • Data Transfer

    USB 2.0 High Speed

  • Song Playback

    Supporting browsing and playback via folders, "all songs", albums, artists, genres, "Favorites" and playlists

  • Play Mode

    Sequential
    Shuffle
    Loop single
    Single
    Loop all

  • Resume After Poweroff

    Can resume from last song or last position before poweroff

  • Library Management

    Supports adding and managing favorites, playlists on-player
    Supports deleting favorites, playlists, songs and folders on-player
    Supports batch deletion

  • Hibernation

    Player can automatically enter hibernation for instant wakeup/playback with minimal battery drain

  • Screen Saver

    Custom defined screen timeout time

  • Display Brightness

    Adjustable

  • Cue Sheet Support

    Supports splitting songs by CUE Sheets, skipping through tracks within Cue Sheet, fast forward and rewind

  • Album Cover

    Full screen display option and Normal display option

  • Playback Display

    Supporting lyrics and ID3 display

  • Playback Interval

    Gapless playback / fade in & out / off

  • Volume Control

    100 steps digital potentiometer

  • Delete Current File

    Supported (single track CUE file deletion not supported)

  • Output Protection

    Automatic power off when output current is abnormal

  • Output Selection

    Line Out/Headphone

  • Volume Setting

    Customizable volume setting when power-on

  • Hearing Protection

    Customizable max volume setting to protect hearing

  • Balance

    5dB

  • On/Off Transients

    MOS switch and Low-distortion analogue switch SGM3712 prevent on / off transients

  • Port Detection

    Automatically pause music playback on headset disconnect

  • Charging Current

    Up to 500mA via computer USB port, Up to 1.5A via 2A USB charger (charging time approx. 3h)

  • Play Time

    Approx. 12h with headphone out (can be improved with future firmware update), 15h on Bluetooth

  • Chip Used

    SOC Ingenic: JZ4760B, DAC: PCM5242, Headphone Amplifier Chip: ISL28291, LPF: OPA2322

  • Equalizer

    7-band equalizer (+/-6dB)

  • Headphone Impedance Range

    16-100Ohms (recommended)

  • Line Output: THD+N

  • Line Output: Frequency Response

    5Hz-60kHz (-3dB)

  • Line Output: Crosstalk

    >/-101dB (10KOhms/1kHz)

  • Line Output: SNR

    >/-115dB (A-weighted)

  • Line Output: Dynamic Range

    >/-107dB

  • Line Output: Level

    1.7Vrms (10KOhms/1kHz)

  • Headphone Output: Output Power 1

    >100mW (16Ohms/THD+N<1%)

  • Headphone Output: Output Power 2

    >70mW (32Ohms/THD+N<1%)

  • Headphone Output: Output Power 3

    >8mW (300Ohms/THD+N<1%)

  • Headphone Output: Frequency Response

    5Hz-60kHz (-3dB)

  • Headphone Output: SNR

    >/-113dB (A-weighted)

  • Headphone Output: Output Impedance

    <1Ohms (32Ohms loaded)

  • Headphone Output: Crosstalk

    >/-72dB (1kHz)

  • Headphone Output: THD+N

  • Headphone Output: Max Output Voltage

    >4.0 Vp-p

  • Headphone Output: Max Output Current

    >130mA

  • Power

    Recommend DC5V, 2A

  • Battery Display

    Yes

  • Battery Life Test Conditions

    Screen: Off
    Volume: 39
    Test File: MP3 44.1kHz/16bit
    Load: M3 open earbuds (27Ohms)
    EQ: Off

  • Dimensions

    97 x 55.5 x 12mm (3.82 x 2.19 x 0.47")

  • Weight

    102g (3.60oz)

  • UPC Code

    6953175760177

About FiiO X1-II

FEATURED REVIEWS

Great Price; Great Product

By CHEZ G.

Using this a regular MP3 player (i'm not a hifi guy) and it's doing the job well!

Great Price; Great product

By CHEZ G.

Using this a regular MP3 player (i'm not a hifi guy) and it's doing the job well!

Comprehensive improvement of hand feel starting from the touch wheel
By studying and comparing dozens of designs and through hundreds of experiments and tests, FiiO have finally developed the unique FiiO touch wheel with higher sensitivity, better anti-interference, enhanced reliability and longer service life.

Wireless Bluetooth 4.0 allowing you to enjoy music easily
The Bluetooth 4.0 system based on F1C81 chip set allows you to easily enjoy the music with reduced latency and high sound quality.

Getting rid of the wire to achieve two functions
Two-way transmission allows it to receive Bluetooth signal while sending Bluetooth signal. (RM1 can be used at the same time when Bluetooth headphone or Bluetooth speaker is on).

Not limited by wire
Being not restricted during exercise, you may have a good sweat while enjoying wireless music.

On-board music accompanying you on the way
In-vehicle mode provides a perfect link between music and vehicle audio system, which has greatly improved the acoustic quality of vehicle audio system and let you enjoy music on the way. (When vehicle engine is ignited, X1 is turned on too. When you shut down the engine, X1 stops immediately. There are no tedious manual operations any more).

Note

To ensure better sound quality, AUX line connection is suggested for on-board mode.

Dedicated professional high quality DAC chip
Utilizing Texas Instruments' high quality CM5242, the all new X1 gets higher signal-to-noise ratio and supports full differential line output to achieve balanced line output function, as compared with PCM5142 of last generation.

Further optimized architecture
With dedicated LPF and operational amplifier, FiiO have optimized design of power architecture and circuit at the same time to further improve sound quality of the all new X1, making better low-frequency quality and depth.

Strong lossless format support
It supports the five common major lossless music formats: APE/FLAC/WAV/WMA/ALAC at up to 192kHz/32 bit.

Improved line output functions
It supports both headphone output and line output, which can be used as audio source to your amplifier to increase your pleasure in listening to music. Line output can be easily set in system settings.

New deep-sleep standby design
Deep-sleep standby enables instant-on playback. Standing by as long as 15 days allows music to be your companion at any moment.

In-line remote control function
Improved in-line remote control function can effectively adapt to most headphones available on the market, in addition to a new function of volume adjustment.

Note

Does not support volume control of Apple Earpods.

Light and Portable
Full aluminum alloy and compact design provides a better hand feel.

Humanized design
Arc waist design is employed to provide better hand fitness and feel.

All-new UI themed interface
Continue to use 2.0" color display with a resolution of 320x240, plus characteristic UE operating system (with six built-in color themes available at your choice).

Music enjoyment for 30 thousand minutes
It supports micro SD card up to 256GB. When calculated by 30MB for a piece of lossless music, it can accommodate approximately 8,738 pieces of music. If a piece of song lasts for four minutes, you may listen for more than 30,000 minutes, namely more than 20 days.

What's in the box:

  • FiiO X1-II High Resolution Lossless Music Player
  • 1m High-Current Micro USB Data/Charging Cable
  • Transparent Clear Case
  • 2x Screen Protector
  • 2x Bodywork Sticker
  • Hi-Res Sticker
  • Quick Start Guide
  • FiiO Warranty
