FLIR SkyWatch Mobile Surveillance and Deterrence Tower Intermediate Package (Diesel)

SKU: FL4231308201

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

FLIR SkyWatch Specifications

SkyWatch: Trailer Components & Contents

SkyWatch: Trailer Components & Contents

Jump to...
  • 2 5/16 Ball

    Standard

  • 16K Single Axle 17.5" Dual Wheel

    Standard

  • Dual Pump Hydraulic Lifting System

    Standard

  • Hydraulic Reservoir

    9 Gallons

SkyWatch: Generator

Jump to...
  • Generator

    Diesel with 78 Gallon Tank

  • Approx. Diesel Generator Run Time

    5 Days

  • Shore Power

    Standard

SkyWatch:Officers Compartment & Contents

Jump to...
  • Window Type

    Tinted: 3 Sliding, 1 Fixed

  • Descent Camera and Alarm

    Standard

  • Blue Strobe Light

    Standard

  • Digital Winder Speed Meter

    Standard

  • Led Flood Lights

    4x Standard

  • 15K BTU Air Conditioner

    Standard

  • Swivel Chair

    2

  • Cab Interior

    Width: 4.58' (1.39m)
    Length: 6.58' (2m)
    Height: 6.41' (1.95m)

  • Cab Weight

    Max Additional: 3,100 lbs (1406kg)

SkyWatch: General

Jump to...
  • Transport

    Height: 10.83' (3.30m) (Tow)
    Height: 9.41' (2.87m) (Truck)
    Width: 8.16' (2.49m)
    Length: 24.58' (7.5m)

  • Max Height

    30.5' (9.3m) (Excluding Cameras) - Cab Deployed

  • Outriggers Deployed

    Width: 19' (5.8m)

  • Weight

    Approx. Tongue Weight: 1,800 lbs (816.46kg)

PT 617 HD: Thermal Camera

Jump to...
  • Array Format (NTSC)

    640 x 480

  • Detector Type

    Long-Life, Uncooled VOx Microbolometer

  • Effective Resolution

    307200

  • Pixel Pitch

    17 microm

  • Thermal Frame Rate

    NTSC: 30 Hz - PAL: 25 Hz / 8.3 Hz

  • FOV

    17 Degree x 14 Degree

  • Focal Length

    35mm

  • E-Zoom

    Continuous E-Zoom to 4 x

  • Spectral Range

    7.5 microm to 13.5 microm

  • Focus Range

    Athermalized, Focus-Free

PT 617 HD: Video

Jump to...
  • Composite Video NTSC or PAL

    Yes: Hybrid IP & Analog

  • Video Compression

    Thermal: Two independent channels of H.264 & M-JPEG
    Visible: Two independent channels of H.264 & M-JPEG

  • Streaming Resolution

    Thermal: QVGA to VGA
    Visible: VGA to HD

  • Thermal AGC Modes

    Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting

  • Thermal AGC Region of Interest (ROI)

    Default, Presets and User definable to insure optimal image quality on subjects of interest

  • Image Uniformity Optimization

    Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers

PT 617 HD: System Integration

Jump to...
  • Ethernet

    Yes

  • Serial Control Interfaces

    RS-232/-422; Pelco D, Bosch

  • External Analytics Compatible

    Yes

  • Network APIs

    FLIR SDK
    FLIR CGI
    ONVIF Profile S

PT 617 HD: Network

Jump to...
  • Supported Protocols

    IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP

PT 617 HD: Pan/Tilt Performance

Jump to...
  • Pan Angle / Speed

    Continuous 360 Degree ; 0.1 Degree to 60 Degree /sec

  • Tilt Angle / Speed

    +90 Degree to -90 Degree ; 0.1 Degree to 30 Degree /sec

  • Programmable Presets

    256

PT 617 HD: Environmental

Jump to...
  • IP Rating (Dust & Water Ingress)

    IP66

  • Operating Temperature Range

    -40 Degree F to 158 Degree F (-40 Degree C to 70 Degree C) cold start

  • Storage Temperature Range

    -67 Degree F to 185 Degree F (-55 Degree C to 85 Degree C)

  • Humidity

    0-95% relative

  • Shock

    MIL-STD-810F "Transportation"

  • Vibe

    IEC 60068-2-27

  • De-Icing / Anti-Icing

    MIL-STD-810F, Method 521.1; - De-Icing of 3/6mm pending model

PT 617 HD: Compliance & Certifications

Jump to...
  • Compliance & Certifications

    FCC Part 15 (Subpart B, class A)
    CE Marked
    RoHS
    IP66
    ONVIF
    WEEE

PT 617 HD: Visible Light Camera

Jump to...
  • Sensor Type

    Full HD 1080p
    1/2.8-type Exmor R CMOS

  • Sensor illumination

    Back Light Compensation

  • Low light sensitivity

    Color: 0.01 lx (F1.6, AGC on, 1/30s)

  • Noise reduction

    Yes (6 steps)

  • WDR

    120db

  • F/#

    F1.6 to F4.7

  • Lens Field of View

    63.7 Degree (wide end) to 2.3 Degree (tele end)

  • Focal Length

    4.3 mm (wide) to 129.0 mm (tele)

  • Zoom

    30X optical zoom with auto-focus and 12X digital zoom

PT 617 HD: General

Jump to...
  • Operating Temperature Range

    -40 Degree to 158 Degree F (-40 Degree C to 70 Degree C)

  • Input Voltage

    24 VDC (21-30 VDC)
    24 VAC (21-30 VAC)

  • Power Consumption

    24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters)
    24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters)

  • Dimensions (L x W x H)

    13.7 x 18.4 x 12.8" (348 x 467 x 326mm)

  • Weight

    36 lbs (16.4kg)

About FLIR SkyWatch

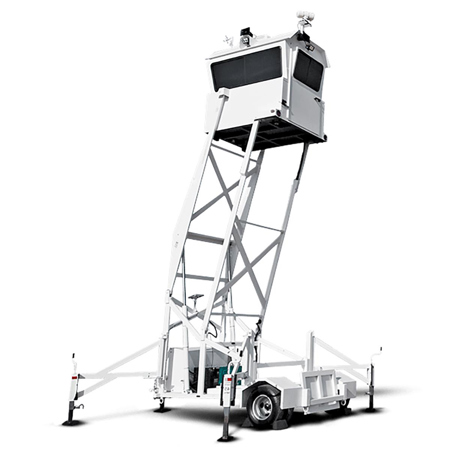

Make your surveillance operations more efficient and effective with the SkyWatch Mobile Surveillance and Deterrence Tower Intermediate Package, Diesel. This state-of-the-art, high-tech mobile surveillance platform stands over two stories high, offering a strategic vantage point for monitoring and deterring potential threats.

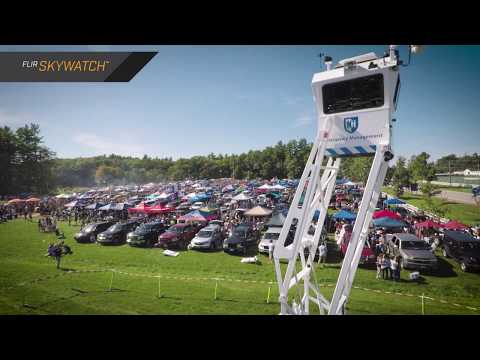

Designed with durability and reliability in mind, the SkyWatch tower is highly reinforced and capable of withstanding winds up to 60 mph, ensuring the safety and comfort of the operator. Its innovative design allows for rapid deployment and portability, making it an ideal solution for various surveillance needs, from major venue crowd control to high-crime area monitoring and perimeter protection.

The SkyWatch tower is equipped with advanced thermal imaging technology from Flir, including the PT-Series HD PTZ Cameras. These cameras feature a high-performance, 4X thermal optical zoom lens, providing superior imaging performance in complete darkness, bright sunlight, dust, or light fog. In addition to thermal imaging, the PT-Series HD offers high-quality, visible-light imaging with 1080p high-definition resolution, a 30X optical zoom with auto-focus, and .01 lx low-light capabilities.

The SkyWatch tower also offers the option to add three additional Day/IR Staring Roof Quad HD Mounted Cameras, enhancing its surveillance capabilities. These fixed day/night vision cameras deliver a 1440p picture at real time (30 fps) and provide 98ft./30m. night vision.

Inside the temperature-controlled cabin, operators have 360-degree visibility from an ergonomic command desk. The cabin is equipped with a 24" Internal Flat Screen Monitor, a Joystick Control Unit, and a Network Video Recorder (NVR) with Video Management System (VMS). The tower also features wireless video streaming and remote control capabilities, allowing operators to maximize the elevated perspective without being confined to the cabin.

The SkyWatch Mobile Surveillance and Deterrence Tower Intermediate Package, Diesel is more than just a surveillance tower. It's a comprehensive surveillance solution that combines innovative technology, flexibility, and robustness to provide superior perimeter protection, regardless of the lighting and environmental conditions.

FLIR SkyWatch Features

  • AC and heating for operator comfort
  • LED floodlights on every side
  • Under cab safety camera
  • Strobe light and descent alarm
  • Tinted windows
  • Command desk
  • Digital windspeed meter
  • Generator, shore power, and fuel tank

Key Features

  • High-tech mobile surveillance tower with over two-story height for strategic vantage point
  • Equipped with advanced thermal and visible-light imaging technology from Flir
  • Rapidly deployable and portable design for flexible surveillance operations
  • Withstands up to 60 mph winds ensuring operator safety and comfort
  • Features 360-degree visibility from a temperature-controlled cabin with ergonomic command desk
  • Offers wireless video streaming and remote control capabilities for efficient monitoring

What's in the box:

  • FLIR SkyWatch Two Person Model (Diesel)
  • PT 617 HD 35mm Thermal/CCD PTZ Camera with NVR/24" Monitor/Joystick & Integration
  • 3x Additional Day/IR Staring Cameras with Integration
  • Public Announcement (PA) System
  • 2x Roof Mounted Spot Lights
  • FLIR 1 Year Limited Warranty
