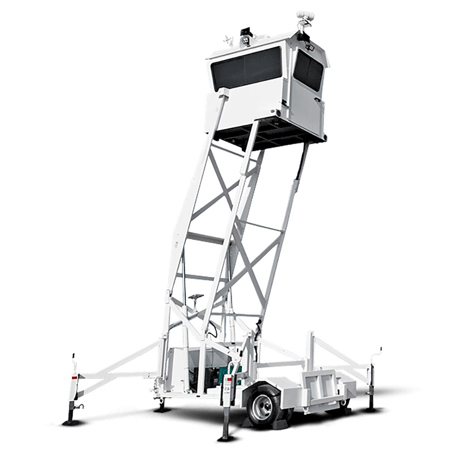

FLIR SkyWatch Mobile Surveillance and Deterrence Tower Advanced Package (Gas)

SKU: FL4231311201

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

FLIR SkyWatch Specifications

Trailer Components and Contents

Trailer Components and Contents

Jump to...
  • 2 5/16 Ball

    Standard

  • 16K Single Axle 17.5" Dual Wheel

    Standard

  • Dual Pump Hydraulic Lifting System

    Standard

  • Hydraulic Reservoir

    9 Gallons

Generator

Jump to...
  • Generator

    Gasoline with 20 Gallon EVAP Tank

  • Approx. Gas Generator Run Time

    24 Hours

  • Shore Power

    Standard

Officers Compartment & Contents

Jump to...
  • Window Type

    Tinted: 3 Sliding, 1 Fixed

  • Descent Camera and Alarm

    Standard

  • Blue Strobe Light

    Standard

  • Digital Winder Speed Meter

    Standard

  • Led Flood Lights

    4x Standard

  • 15K BTU Air Conditioner

    Standard

  • Swivel Chair

    2

  • Cab Interior

    Width: 4.58' (1.39m)
    Length: 6.58' (2m)
    Height: 6.41' (1.95m)

  • Cab Weight

    Max Additional: 3,100 lbs (1406kg)

General

Jump to...
  • Transport

    Height: 10.83' (3.30m) (Tow)
    Height: 9.41' (2.87m) (Truck)
    Width: 8.16' (2.49m)
    Length: 24.58' (7.5m)

  • Max Height

    30.5' (9.3m) (Excluding Cameras) - Cab Deployed

  • Outriggers Deployed

    Width: 19' (5.8m)

  • Weight

    Approx. Tongue Weight: 1,800 lbs (816.46kg)

About FLIR SkyWatch

It's the SkyWatch Mobile Surveillance and Deterrence Tower Advanced Package, GAS, a robust and highly fortified mobile surveillance platform that stands over two stories high. Designed to endure winds of up to 60 mph, this tower ensures the operator's safety, comfort, and focus. Its portability and rapid deployment capabilities offer a strategic vantage point and act as a powerful deterrent.

This advanced package allows for customization of payload with features such as pan-tilt IR, night vision, visible light cameras, in-cab controls, ground radar, monitors, Network Video Recorder (NVR), and searchlights. It provides operators with a 360-degree visibility from an ergonomic command desk situated in a temperature-controlled cabin.

The optional public address system, full-function siren, and roof-mounted, high-powered searchlights with internal pan/tilt control enable operators to alert ground support and crowds of any immediate threats. The wireless video streaming and remote control features allow operators to leverage the elevated perspective without being physically present in the cabin.

The SkyWatch Mobile Surveillance and Deterrence Tower Advanced Package, GAS, is a globally trusted solution with over 1,000 systems delivered worldwide. It includes the PT-Series HD PTZ Cameras that feature a high-performance, 4X thermal optical zoom lens. This lens technology offers a wider zoom range and improved imaging performance, ensuring superior perimeter protection in all lighting and environmental conditions.

The package also includes a Day/Night HD PTZ Camera system with each camera mounted in opposite corners of the SkyWatch roof. These cameras deliver outstanding picture quality both day and night with long-range IR Illumination of up to 650ft / 200m. The powerful 30x optical zoom enables clear identification over wide areas such as parking lots, crowds, high crime areas, high valued assets, or perimeters.

The SkyWatch Mobile Surveillance and Deterrence Tower Advanced Package, GAS, is ideal for major venue crowd control, high-crime area monitoring, missing person command, flight line protection, perimeter protection, gate overwatch, high-value equipment protection, and parking lot surveillance and detection.

With its rapid deployment and full portability, the SkyWatch Tower can be towed practically anywhere and deployed by one trained person in minutes. It offers powerful multi-sensor capability with all PTZ thermal/day or day/night cameras fully integrated into the cab along with a 24" monitor, in-cab controls, and NVR. The tower's temperature-controlled environment keeps the operator comfortable and engaged in active surveillance, ensuring efficient payload options for optimal surveillance and deterrence.

FLIR SkyWatch Features

  • AC and heating for operator comfort
  • LED floodlights on every side
  • Under cab safety camera
  • Strobe light and descent alarm
  • Tinted windows
  • Command desk
  • Digital windspeed meter
  • Generator, shore power, and fuel tank

Key Features

  • Over two-story high mobile surveillance platform withstanding up to 60 mph winds
  • Customizable payload with IR, night vision, and visible light cameras for 360-degree visibility
  • Ergonomic command desk in a temperature-controlled cabin for operator safety and focus
  • PT-Series HD PTZ Cameras with 4X thermal optical zoom and 1080p HD resolution
  • Day/Night HD PTZ Camera system with 650ft IR illumination and 30x optical zoom
  • Rapidly deployable with wireless streaming and remote control for strategic surveillance

What's in the box:

  • FLIR SkyWatch Two Person Model (Gas)
  • PT 606 HD 35mm Thermal Continous Zoom/CCD PTZ Camera with NVR/24" Monitor/Joystick & Integration
  • Day/Night All Weather Dual PTZ Cameras
  • 3x Additional Day/IR Staring Cameras with Integration
  • Public Announcement (PA) System
  • 2x Roof Mounted Spot Lights
  • FLIR 1 Year Limited Warranty
