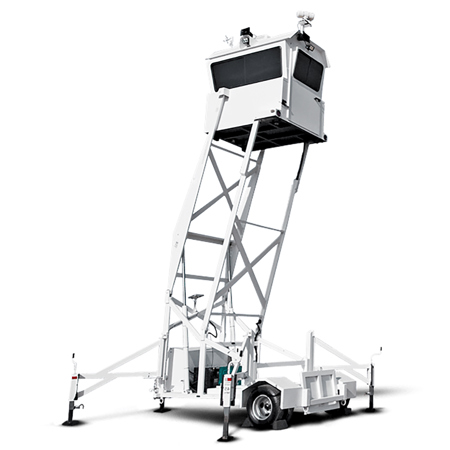

FLIR SkyWatch Mobile Surveillance and Deterrence Tower, Diesel, White

SKU: FL75195ELK01

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main purpose of the SkyWatch Mobile Surveillance and Deterrence Tower?

The primary purpose of the SkyWatch Tower is to provide mobile surveillance and deterrence. It is ideal for major venue crowd control, high-crime area monitoring, missing person command, flight line protection, perimeter protection, gate overwatch, high-value equipment protection, and parking lot surveillance and detection.

What are the main features of the SkyWatch Tower?

The SkyWatch Tower features a powerful multi-sensor capability, flexible display views, a temperature-controlled cabin, and a variety of payload options. It also comes with a public address system, full-function siren, and roof-mounted searchlights for effective deterrence.

How difficult is it to set up the SkyWatch Tower?

The SkyWatch Tower is designed for rapid deployment and full portability. It can be easily towed and set up by a single trained individual in minutes.

Can the SkyWatch Tower withstand harsh weather conditions?

Yes, the SkyWatch Tower can withstand winds up to 60 mph, ensuring the operator's safety and comfort.

Does the SkyWatch Tower offer remote control capabilities?

Yes, the SkyWatch Tower allows for remote streaming video and camera control, enabling operators to maximize the use of the elevated perspective without the need to remain in the cabin.

Shopper : How much power does the tower draw when plugged in to electric? With just cameras running and then with air unit running with it?

Reviews about this item

Review Summary

FLIR SkyWatch Specifications

Trailer Components and Contents

Trailer Components and Contents

Jump to...
  • 2 5/16 Ball

    Standard

  • 16K Single Axle 17.5" Dual Wheel

    Standard

  • Dual Pump Hydraulic Lifting System

    Standard

  • Hydraulic Reservoir

    9 Gallons

Generator

Jump to...
  • Generator

    Diesel with 78 Gallon Tank

  • Approx. Diesel Generator Run Time

    5 Days

  • Shore Power

    Standard

Officers Compartment & Contents

Jump to...
  • Window Type

    Tinted: 3 Sliding, 1 Fixed

  • Descent Camera and Alarm

    Standard

  • Blue Strobe Light

    Standard

  • Digital Winder Speed Meter

    Standard

  • Led Flood Lights

    4x Standard

  • 15K BTU Air Conditioner

    Standard

  • Swivel Chair

    2

  • Cab Interior

    Width: 4.58' (1.39m)
    Length: 6.58' (2m)
    Height: 6.41' (1.95m)

  • Cab Weight

    Max Additional: 3,100 lbs (1406kg)

General

Jump to...
  • Color

    White

  • Transport

    Height: 10.83' (3.30m) (Tow)
    Height: 9.41' (2.87m) (Truck)
    Width: 8.16' (2.49m)
    Length: 24.58' (7.5m)

  • Max Height

    30.5' (9.3m) (Excluding Cameras) - Cab Deployed

  • Outriggers Deployed

    Width: 19' (5.8m)

  • Weight

    Approx. Tongue Weight: 1,800 lbs (816.46kg)

About FLIR SkyWatch

Enhance your security measures with the SkyWatch Mobile Surveillance and Deterrence Tower, a robust and highly reinforced mobile surveillance solution from the reputable brand, Flir. Towering over two stories, this innovative platform features a sturdy structure that can withstand winds up to 60 mph, ensuring the operator's safety and comfort while maintaining focus on the task at hand.

Designed for rapid deployment and full portability, the SkyWatch Tower is easily towable and can be set up by a single trained individual in mere minutes. Its high-tech design includes a powerful multi-sensor capability, integrating all PTZ thermal/day or day/night cameras into the cab, along with a 24" monitor, in-cab controls, and a Network Video Recorder (NVR).

The SkyWatch Tower offers flexible display views, including full screen, split-screen display, and two fields-of-view within the cab monitor. This feature, coupled with remote streaming video and camera control, allows operators to maximize the use of the elevated perspective without the need to remain in the cabin.

The temperature-controlled cabin ensures operator comfort, providing a protected environment against harsh weather conditions. The tower is equipped with a variety of payload options, including fixed or pan-tilt IR, night vision, visible-light cameras, ground radar, NVR, and searchlights, enabling efficient surveillance, detection, and documentation.

The SkyWatch Tower is not just a surveillance tool but also a powerful deterrent. It comes with optional public address system, full-function siren, and roof-mounted, high-powered searchlights with internal pan/tilt control. These features allow operators to alert ground support and crowds of any immediate threats, making it an ideal solution for major venue crowd control, high-crime area monitoring, missing person command, flight line protection, perimeter protection, gate overwatch, high-value equipment protection, and parking lot surveillance and detection.

With over 1,000 SkyWatch systems delivered globally, this reliable and durable mobile surveillance and deterrence tower stands as a testament to Flir's commitment to providing advanced security solutions.

FLIR SkyWatch Features

  • AC and heating for operator comfort
  • LED floodlights on every side
  • Under cab safety camera
  • Strobe light and descent alarm
  • Tinted windows
  • Command desk
  • Digital windspeed meter
  • Generator, shore power, and fuel tank

Key Features

  • Robust mobile surveillance and deterrence tower from reputable brand, Flir
  • Rapid deployment and full portability with easy towability
  • Powerful multi-sensor capability integrating PTZ thermal/day or day/night cameras
  • Flexible display views with remote streaming video and camera control

What's in the box:

  • FLIR SkyWatch Mobile Surveillance and Deterrence Tower (White)
  • FLIR 1 Year Limited Warranty
