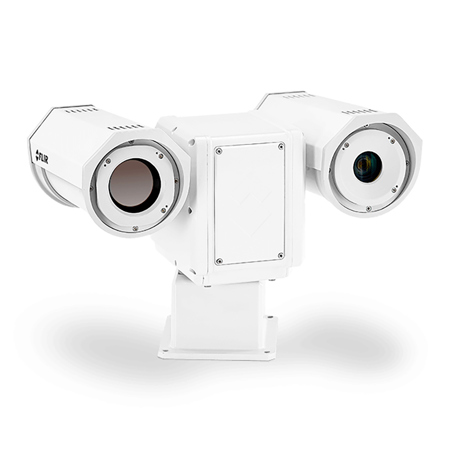

FLIR PT-612 HD 50mm Visible and Thermal PTZ Camera

SKU: FL76126ELK01

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

FLIR PT-612 HD Specifications

Thermal Camera

Thermal Camera

Jump to...
  • Array Format (NTSC)

    640 x 480

  • Detector Type

    Long-Life, Uncooled VOx Microbolometer

  • Effective Resolution

    307200

  • Pixel Pitch

    17 microm

  • Thermal Frame Rate

    NTSC: 30 Hz - PAL: 25 Hz / 8.3 Hz

  • FOV

    12 Degree x 10 Degree

  • Focal Length

    50mm

  • E-Zoom

    Continuous E-Zoom to 4 x

  • Spectral Range

    7.5 microm to 13.5 microm

  • Focus Range

    Athermalized, Focus-Free

  • Composite Video NTSC or PAL

    Yes: Hybrid IP & Analog

  • Video Compression

    Thermal: Two independent channels of H.264 & M-JPEG
    Visible: Two independent channels of H.264 & M-JPEG

  • Streaming Resolution

    Thermal: QVGA to VGA
    Visible: VGA to HD

  • Thermal AGC Modes

    Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto Dynamic Detail Enhancement (DDE), Max Gain Setting

  • Thermal AGC Region of Interest (ROI)

    Default, Presets and User definable to insure optimal image quality on subjects of interest

  • Image Uniformity Optimization

    Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers

System Integration

Jump to...
  • Ethernet

    Yes

  • Serial Control Interfaces

    RS-232/-422; Pelco D, Bosch

  • External Analytics Compatible

    Yes

  • Network APIs

    FLIR SDK
    FLIR CGI
    ONVIF Profile S

Network

Jump to...
  • Supported Protocols

    IPV4, HTTP, Bonjour, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP

Pan/Tilt Performance

Jump to...
  • Pan Angle / Speed

    Continuous 360 Degree ; 0.1 Degree to 60 Degree /sec

  • Tilt Angle / Speed

    +90 Degree to -90 Degree ; 0.1 Degree to 30 Degree /sec

  • Programmable Presets

    256

Environmental

Jump to...
  • IP Rating (Dust & Water Ingress)

    IP66

  • Operating Temperature Range

    -40 Degree F to 158 Degree F (-40 Degree C to 70 Degree C) cold start

  • Storage Temperature Range

    -67 Degree F to 185 Degree F (-55 Degree C to 85 Degree C)

  • Humidity

    0-95% relative

  • Shock

    MIL-STD-810F "Transportation"

  • Vibe

    IEC 60068-2-27

  • De-Icing / Anti-Icing

    MIL-STD-810F, Method 521.1; - De-Icing of 3/6mm pending model

Compliance & Certifications

Jump to...
  • Compliance & Certifications

    FCC Part 15 (Subpart B, class A)
    CE Marked
    RoHS
    IP66
    ONVIF
    WEEE

Visible Light Camera

Jump to...
  • Sensor Type

    Full HD 1080p
    1/2.8-type Exmor R CMOS

  • Sensor illumination

    Back Light Compensation

  • Low light sensitivity

    Color: 0.01 lx (F1.6, AGC on, 1/30s)

  • Noise reduction

    Yes (6 steps)

  • WDR

    120db

  • F/#

    F1.6 to F4.7

  • Lens Field of View

    63.7 Degree (wide end) to 2.3 Degree (tele end)

  • Focal Length

    4.3 mm (wide) to 129.0 mm (tele)

  • Zoom

    30X optical zoom with auto-focus and 12X digital zoom

General

Jump to...
  • Operating Temperature Range

    -40 Degree to 158 Degree F (-40 Degree C to 70 Degree C)

  • Input Voltage

    24 VDC (21-30 VDC)
    24 VAC (21-30 VAC)

  • Power Consumption

    24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters)
    24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters)

  • Dimensions (L x W x H)

    13.7 x 18.4 x 12.8" (348 x 467 x 326mm)

  • Weight

    36 lbs (16.4kg)

About FLIR PT-612 HD

The PT-612 HD 50mm Visible and Thermal PTZ Camera represents the pinnacle of surveillance technology, offering a sophisticated dual-sensor system that ensures unparalleled security monitoring. This high-tech camera combines a state-of-the-art thermal sensor with a resolution of 640 x 480, and an advanced 1080p HD visible-light imaging sensor, all encapsulated within a high-speed, precision pan/tilt mechanism.

Crafted for superior image quality, the PT-612 HD boasts a thermal camera with up to 14x continuous zoom capabilities, allowing for detailed thermal imaging over expansive areas. Complementing this, the camera's low-light HD sensor is equipped with a powerful 30x optical zoom, ensuring crisp, clear footage in a variety of lighting conditions.

Encased in a rugged, weather-resistant housing, the PT-612 HD is built to withstand the elements. It features innovative deicing and defogging capabilities to maintain performance in adverse weather conditions. Additionally, the camera's thermal payload cassette is designed for quick and easy exchange, significantly reducing maintenance time and ensuring continuous operation.

Designed for seamless system integration, the PT-612 HD excels when paired with FLIR United VMS 8.0, enhancing its capabilities with features such as automated PTZ tracking and fixed camera-target handoff. This integration allows for a smooth transition of surveillance between fixed and pan/tilt cameras within the FLIR ecosystem. When an intruder moves beyond the field of view of a fixed camera, the PT-612 HD can automatically take over tracking, ensuring that no detail goes unnoticed.

Ideal for critical infrastructure protection, the PT-612 HD operates flawlessly in complete darkness, bright sunlight, and challenging visual conditions. This innovative camera is the ultimate choice for those seeking a sophisticated, high-quality surveillance solution that can capture both visible and thermal imagery, providing a comprehensive view of their security landscape. Whether monitoring parking lots, buildings, or perimeters, the PT-612 HD 50mm Visible and Thermal PTZ Camera is engineered to deliver exceptional performance and reliability.

FLIR PT-612 HD Features

  • Dual Sensor Mode: Users gain a full set of viewing and control options, including the industry-leading, dual-sensor viewing mode
  • Presets and Alarms: Fully-programmable preset tour and alarm functions are available
  • Exchangeable Camera Cassettes: Enjoy quick upgrades or repair of sensors and optics
  • Pan / Tilt Performance: Continuous 360 Degree pan with tilt angle/speed of +90 Degree to -90 Degree , and accurate pre-set repeatability
  • Open IP: The open IP standard allows for plug-and-play integration and is ONVIF compliant
  • On Screen Features: The PT-Series HD offers Picture-in-Picture, Auto-tracking detection on preset, click-and-track, and hand off from a fixed camera

Key Features

  • High-tech dual-sensor camera system for advanced surveillance and security
  • Combines a 640 x 480 thermal sensor with a 1080p HD visible-light imaging sensor
  • Superior image quality with up to 14x continuous thermal zoom and 30x optical zoom in low light
  • Rugged, weather-resistant housing with deicing and defogging capabilities
  • Seamless integration with FLIR United VMS 8.0 for automated PTZ tracking and camera-target handoff

What's in the box:

  • FLIR PT-612 HD 50mm Visible and Thermal PTZ Camera
  • Mounting Hardware
  • FLIR 1 Year Limited Warranty
