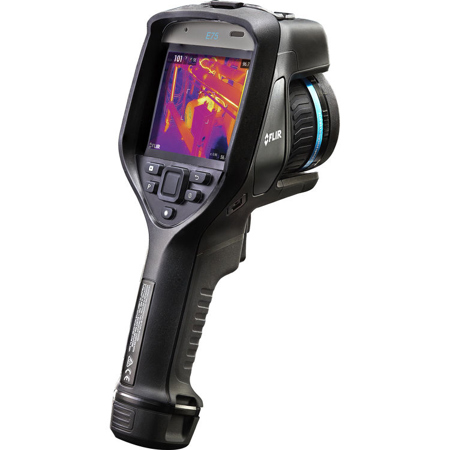

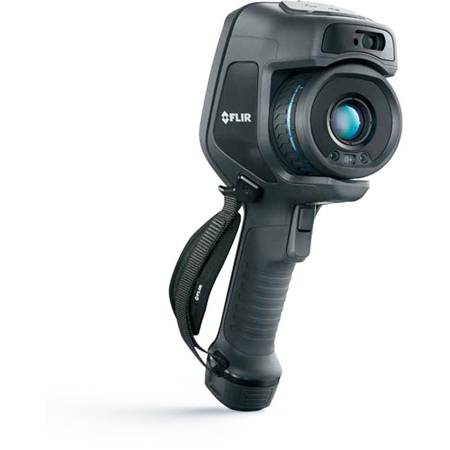

FLIR E75 Advanced Thermal Imaging Camera with 17mm Lens, 320x240 IR Resolution, Wi-Fi, MSX, Matte Black

FLIR redesigned the Exx-Series from the handle up to deliver the best performance, resolution and sensitivity of any pistol-grip handheld thermal camera. The new Exx-Series cameras are packed with the features you need to find hot spots, detect the early signs of building deficiencies, troubleshoot electrical and mechanical systems and prevent problems before they cause serious damage.

• 320 x 240 - 464 x 348 true native resolution
• Laser-assisted autofocus
• Wide temperature ranges, up to 1500deg. C
• Vibrant, 4" optically-bonded PCAP touchscreen with 160deg. viewing angle
• Wi-Fi, METERLiNK connectivity
• Streamlined reporting features
• FLIR's industry-leading 2-5-10 warranty

FLIR E75, E85 and E95 cameras offer the superior resolution and range performance needed to quickly identify hot spots and discover potential points of failure in electrical distribution and mechanical systems. With up to 161,472 pixel resolution and a larger, more vibrant LCD screen than any other pistol-grip thermal camera, the Exx-Series makes it easier than ever to diagnose problems - even at a distance. Avoid costly shutdowns and lost production time through regular predictive maintenance routines with these rugged, intuitive cameras.

Electrical & Mechanical
It takes the right tools to quickly identify potential points of failure in an electrical or manufacturing environment, especially since many of these components are impossible to reach. That's why the new FLIR Exx-Series of thermal imaging cameras offers superior resolution, precise laser-assisted autofocusing and the option of interchangeable lenses - so you can target any component, survey from top to bottom and avoid costly shutdowns.

Building
Inadequate insulation, moisture intrusion and building envelope deficiencies are critical faults that can be hard to find. So the new FLIR Exx-Series of thermal imaging cameras offers the superior sensitivity and performance you need to detect subtle temperature differences and the wide field of view to target broad areas - so you can locate problems and fix them, fast.

FLIR E75
The FLIR E75 has the sensitivity and resolution needed to diagnose problems and find hidden deficiencies - even from a distance.

Quick, precise continuous focus
Laser-assisted autofocus responds instantly to movement, maintaining focus even in cluttered surroundings.

Clear view at any angle
Vivid 4" LCD display with a 160deg. viewing angle helps you keep an eye on the thermal image as you work.

High temperature calibration
Exx-Series cameras offer wide measurement ranges (-20deg. C to 120deg. C, 0deg. C to 650deg. C and 300deg. C up to 1500deg. C).

Intuitive interface and navigation
Capacitive touch screen and convenient menu buttons make it easy to navigate and operate the camera with one hand.

Superior MSX scene enhancement
Patented MSX technology is now even better, thanks to a re-design that brings the visual and IR cameras closer together.

Industry-leading 2-5-10 warranty
FLIR backs up the Exx-Series with the best warranty in the business, for battery, body and detector.

Improve Plant Reliability
Equipment failures are costly and can impact on-time delivery, so it's important to have the right tools to find potential problems before they happen.

• High-resolution infrared detectors, up to 464 x 348, for crisp, detailed images
• Wide temperature ranges: -40deg. C to 120deg. C, 0deg. C to 650deg. C, 300deg. C up to 1500deg. C (E95)
• Superior spot-size performance for accurate temperature measurements on smaller, more distant targets
• Laser-assisted autofocus for precise identification of hot spots, even in cluttered scenes

Increase Plant Safety
The Exx-Series improves plant safety by helping you diagnose and report electrical problems before they result in fire or damage.

• Detect temperature differences down to 30 mK for immediate identification of failing components
• Interchangeable lenses, from wide angle to telephoto, offer complete coverage of near and far targets
• Lenses auto-calibrate with camera for the most precise temperature readings
• MSX image enhancement adds the depth and detail to image

Designed to Make Your Work Easier
FLIR designed the E75, E85 and E95 to make your work faster, safer and more efficient.

• Rapid-response touch screen with intuitive new user interface
• Convenient menu buttons allow for one-handed operation
• New folder and naming structure that makes finding images easier
• Connect over Wi-Fi to mobile devices or via METERLiNK to FLIR clamps and multimeters
