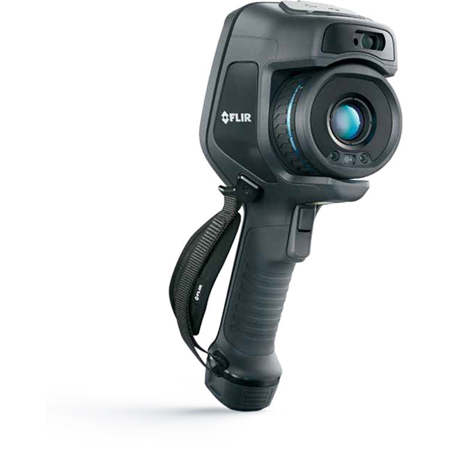

FLIR E85 Advanced Thermal Imaging Camera with 24 and 42 Degree, 18mm & 10mm Interchangeable Lenses, 384x288

Featuring interchangeable lenses that auto-calibrate with the camera, as well as a vibrant 4" touchscreen with scratch-resistant Dragontrail cover glass and a fast and responsive interface.

• METERLiNK connectivity
• Wide temperature range -20deg. C to 120deg. C (-4deg. F to 248deg. F) / 0deg. C to 650deg. C (32deg. F to 1200deg. F)
• Built-in voice annotation
• Detect temperature differences down to 30 mK
• MSX image enhancement adds the depth and detail to image
• High-resolution infrared detectors, up to 320 x 240, for crisp, detailed images
• Superior spot-size performance for accurate temperature measurements on smaller, more distant targets
• Rugged, water-tight chassis and scratch-resistant Dragontrail cover glass
• Sensitive enough to clearly identify hidden building deficiencies
• Improved HD pixel density
• Exceptional noise performance
• Measure moisture intrusion or air area leak on-screen

AutoCal
Featuring interchangeable telephoto lenses (24deg. , 42deg. , 14deg. ) that can be set up to auto-calibrate with the camera for quick swapping in the field with little down time and no need to send to the factory. The firmware update to auto-calibrate the lens using AutoCal will be available at the end of April.

Vibrant 4" Optically-Bonded PCAP Touchscreen
A brighter and larger display with auto-rotation helps you clearly see small details even before you look at your report.

Fast & Responsive Interface
A fast and responsive interface allows for ease of use and the improved organization and reporting options makes diagnosing your reports easy.

Expandable and Modular
Not every target is the same size out in the field. The interchangeable lenses (14deg. , 24deg. , 42deg. ) will allow you to get the shot you need with the same camera for every situation. From wide angle to telephoto, the lenses offer complete coverage of near and far targets. Each lens can be set up to auto-calibrate with the camera for quick swapping in the field with little down time and no need to send to the factory.

The camera produces radiometric JPEGs that can be opened in your own software. No need for a proprietary one. The images are supported by FLIR's Strategic Developers Kit (ATLAS SDK). This enables companies to use their own CMMs. With their own CMMs they can store and pull measurements from thermal images. Other information stored in the image are also accessible like GPS, compass, current and voltage measurements.

Work Safer
Your job can take you into all kinds of different places and positions. With the simple buttons and being lightweight using the camera in one hand is easy. If you are in a dark space the large and bright LED screen will allow you to clearly see what your investigating.

Document Problems Quickly and Easily
Report problems in building structures for insurance claims, pre-insurance audits and building inspections. The Exx-Series improves plant safety by helping you diagnose and report electrical problems before they result in fire or damage.

Improve Plant Reliability
Equipment failures are costly and can impact on time delivery, so it's important to have the right tools to find potential problems before they happen.

Navigate Screens Easier
• Rapid-response touch screen with intuitive gestures
• Updated GUI with improved flow and feedback
• Logical navigation on screen and in menus

Report Problems Quickly
• New folder and naming structure makes finding images easier
• Streamlined reporting features
• Automatic GPS tagging and compass help identify locations
• Wi-Fi connects camera to mobile devices or in-plant networks to notify your team immediately of your findings

Laser-assisted Autofocus
Laser focus has a dual trigger allowing a more intuitive focus to happen before capturing the image.

Applications
• Overheating joints and parts before they can interrupt your operations or create safety hazards
• Prevent unscheduled shutdowns
• Scan large areas and hundreds of connections quickly and efficiently to prevent unexpected service outages and lost revenues
• Locate Water Damage
• Locate Water & Heat Leaks
• Home Inspections
