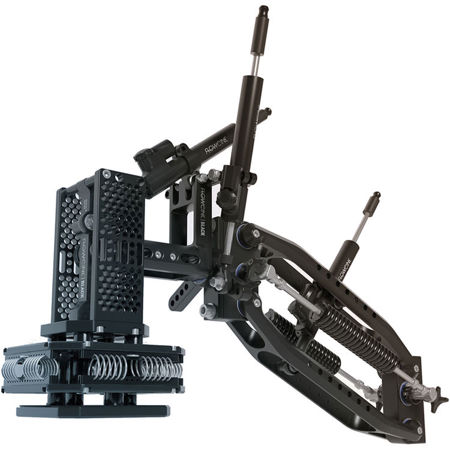

Flowcine Black Arm Standard Dampening System with 15-22 Lbs Anti-Vibration Mount #1 and Pro Case

The Black arm is a 3-axis dampening system with a additional vibration mount for stabilizing roll and tilt errors as well as vertical motion and vibrations. The Black arm is a hardmount system, made for gimbals, that you want to mount on vehicles such as cars, ATVs, boats, snowmobiles etc.

Standard
The Black Arm Standard is made to work for gimbals and cameras with weight range between 5-13kg (11-28 lbs). The Black Standard ships with two 7.0mm springs, that carries the 5-13kg. You can use the springs in single (one spring on each side) or dual (two springs on each side) configuration, to precisely achieve the lift needed. The damping action of all axes, vertical, tilt and roll is created by custom made actuator hydraulic dampers that are fully adjustable. You adjust the damping with a knob that has 22 steps, to precisely dial in the exact amount of damping you need for your shot. The Black Standard ships with one damper for each of the three axes.

Anti-Vibration Mount
The Black arm ships with one anti-vibration mount (AVM). The main purpose of the AVM is to reduce high frequency vibrations, such as noise from a cars engine. In order to maximize the efficiency of the AVM, you should use the version that matches your load and conditions. The Wire AVMs comes in five different weight ranges and is very easy to use. You just put the correct one on and go.

Flight Case
The Black arm ships in the Pro case. It's made in all-black, to perfectly match the Black arm. It features powder coated black metal corners, heavy duty recessed handles and butterfly catches. It also has wheels, so you can roll the case just like a cabin bag. To match the clean exterior, the foam in the Pro case is all black.

Mounting Options
Mounting the Black arm is as simple as clamping it on to a standard 48-52mm speed rail. You build a rig onto your vehicle, using standard grip components like speed rail and dual clamps, possibly using Flowcines Universal rack or Stub mount. Then you simply clamp the Black on there, with the two single clamps at the back of the arm. There are several ways to attach your gimbal to the Black arm. The included base plate has hole patterns to match the Freefly Toad in a hole and Cinemilled Universal Ronin mount for easy attachment of the MoVI and Ronin gimbals. We also make a Mitchell female mount for gimbals that uses the Mitchell connector. On each side of the Blacks head, there are cheese plates suitable to mount batteries or Kenyon gyros on.
