14.8 to 49.6 lb (6.7 to 22.5kg)
Black Arm to Vehicle:
Clamp for 1.9 to 2.0" (48 to 52mm) speed rail
Gimbal to Black Arm:
4 x 1/4"-20 UNC holes - 25 mm CC
5 x 3/8"-16 holes UNC - 25.4 mm CC
4 x 8 mm holes - 98.99 mm CC
6.5 mm holes - 2 x 1.5" CC
3.2 mm holes - 32 mm CC
Shore range 30: up to 14.77 to 29.76 lb (6.70 to 13.5kg)
Shore range 40: up to 24.80 to 49.60 lb (11.25 to 22.50kg)
a very safe equipment with a spectacular finish that are the images that are taken from its base so stable and its manufactured quality.
By PEDRO N.
Living my dreams and this is one of the equipment that complements all what I need to do a great shoot thank you Adorama.
Discover the Black Arm Standard Damping System, a professional-grade 3-axis dampening system designed by Flowcine, a brand renowned for its high-quality gimbal systems. This sturdy system is equipped with an additional vibration mount, expertly engineered to stabilize roll and tilt errors, vertical motion, and vibrations, making it an ideal choice for capturing smooth, steady footage.
The Black Arm is a hardmount system, specifically designed for gimbals that you want to mount on a variety of vehicles such as cars, ATVs, boats, and snowmobiles. It comes in two versions: the Black Arm Standard and the Black Arm Complete. The Standard version is designed to work with gimbals and cameras with a weight range between 5-13kg (11-28lbs), while the Complete version is suitable for users working with higher loads, carrying between 5-32kg (11-70lbs).
The Black Arm Standard ships with two 7.0mm springs, while the Complete version includes four 7.0mm springs and four 7.5mm springs, allowing you to use the springs in single or dual configuration to achieve the precise lift needed. The damping action of all axes - vertical, tilt, and roll - is created by custom-made actuator hydraulic dampers that are fully adjustable, providing you with 22 steps to dial in the exact amount of damping required for your shot.
Each Black Arm system comes with an anti-vibration mount (AVM), designed to reduce high-frequency vibrations such as noise from a vehicle's engine. The AVM comes in two types: the original Wire AVM and the new Tranquilizer, both of which are easy to use and can be fine-tuned to match your load and conditions.

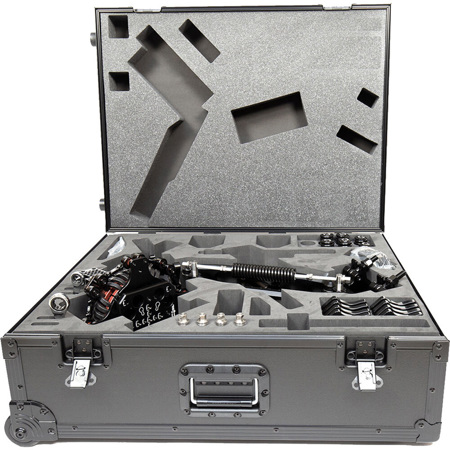

The Black Arm system is housed in a durable, all-black Pro Flight Case, featuring powder-coated black metal corners, heavy-duty recessed handles, and butterfly catches. The case also includes wheels for easy transportation, making it a reliable choice for professionals on the go.
Mounting the Black Arm is as simple as clamping it onto a standard 48-52mm speed rail. The included base plate has hole patterns to match the Freefly Toad in a hole and Cinemilled Universal Ronin mount for easy attachment of the MoVI and Ronin gimbals. The Black Arm also features cheese plates on each side of the head, suitable for mounting batteries or Kenyon gyros.
In summary, the Black Arm Standard Damping System with Tranquilizer Mount & Pro Flight Case offers a comprehensive solution for professionals seeking smooth, stable footage in a variety of filming conditions.
