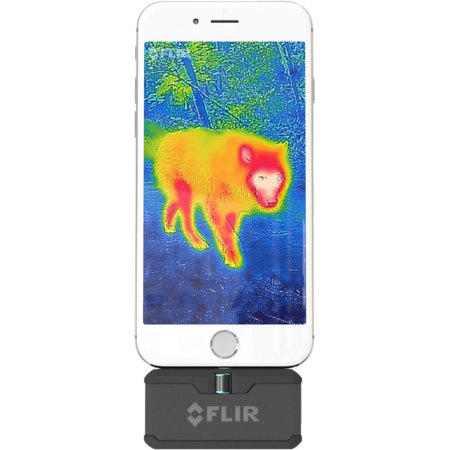

FLIR ONE Pro Thermal Imaging Camera Attachment for iOS Devices
See all FLIR items

FLIR ONE Pro Thermal Imaging Camera Attachment for iOS Devices

SKU: FLI1PTICIOS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR ONE Pro Camera Attachment Specifications

  • Compatibility

    iOS Devices

  • Thermal Sensor

    Pixel size 12Mum, 8 - 14Mum spectral range

  • Thermal Resolution

    160x120

  • Visual Resolution

    1440x1080

  • HFOV / VFOV

    55 deg. +/- 1 deg. / 43 deg. +/- 1 deg. (Pro)

  • Frame Rate

    8.7Hz

  • Focus

    Fixed 15cm - Infinity

  • Scene Dynamic Range

    -20 to 400 deg. C (-4 to 752 deg. F)

  • Accuracy

    +/-3 deg. C or +/-5%, typical
    Percent of the difference between ambient and scene temperature. Applicable 60s after start-up when the unit is within 15 deg.C - 35 deg.C and the scene is within 5 deg.C - 120 deg.C

  • Thermal Sensitivity (MRDT)

    150mK

  • Emissivity Settings

    Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% Reflected background temperature is 22 deg.C

  • Shutter

    Automatic/Manual

  • Battery Life

    1 hour

  • Battery Charge Time

    40 minutes

  • Interfaces: Video

    Male Lightning

  • Charging

    Female micro USB-C (5V/1A)

  • Video and Still Image Display/Capture

    Saved as 1440x1080

  • File Formats

    Still images - radiometric JPEG
    Video - MPEG-4 (file format MOV)

  • Capture Modes

    Video, Still image, Time lapse and Panorama

  • Palettes

    Gray (white hot), Hottest, Coldest, Iron, Rainbow, Contrast, Arctic, Lava and Wheel

  • Spot Meter

    Off / deg.C / deg.F. Resolution 0.1deg.C / 0.1deg.F

  • Adjustable MSX Distance

    0.3m - Infinity

  • Battery Charge Monitor

    0 - 100%

  • Certifications

    MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233

  • Operating Temperature

    0 to 35 deg. C (32 to 95 deg. F), battery charging 0 to 30 deg. C (32 to 86 deg. F)

  • Non-Operating Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Mechanical Shock

    Drop from 1.8m (5.91')

  • Dimensions (WxHxD)

    68 x 34 x 14mm (2.68 x 1.34 x 0.55")

  • Weight

    36.5g (1.29 oz)

About FLIR ONE Pro Camera Attachment

The all new FLIR ONE Pro is a must-have for any inspector or contractor's toolbox. Combining enhanced high resolution MSX imagery with powerful measurement tools and report generation capability, the FLIR One Pro works as hard as you do, almost. From plumbers to architects, the FLIR ONE Pro is perfect for all professionals that need a little help on the job site.

• MSX
• Ruggedized Design
• OneFit Adjustable Connector
• VividIR Advanced Image Processing
• Higher Resolution Thermal Sensor
• Advanced Diagnostics
• One-Touch Reporting
• Enhanced FLIR ONE App

VividIR
With our exclusive VividIR image processing, we give you the sharpest mobile thermal image you've seen. Ever.

OneFit Adjustable Connector
One size fits all with our brand new adjustable connector. OneFit adapts your FLIR ONE to fit with almost any phone case.

Non-Contact Temperature Measurement
FLIR ONE Pro enables you to measure the temperature of any spot in a scene between -4deg.F and 248deg.F (-20deg. to 120deg.C). It can also detect temperature differences as small as 0.18deg. F (0.1deg. C).

Ask Another Pro
Connect with certified thermographers around the world for a second set of eyes on your project.

FLIR ONE App
Explore additional features like FLIR ONE Panorama, FLIR ONE TimeLapse and FLIR ONE CloseUp functions.

OneFit Compatibility
The revolutionary OneFit adjustable-height connector ensures that your FLIR One will fit your phone or tablet, even with its rugged case still in place so you don't have to choose between protecting your phone and thermal vision.

VividIR Image Enhancement
VividIR is FLIR's latest and most powerful image processing. Delivering true SuperResolution image enhancement to the FLIR One Pro, advanced image processing delivers stunningly crisp imagery and fine detail.

Sharing
FLIR ONE App allows you to share thermal images and videos to the social media platform of your choice.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • FLIR ONE Pro Thermal Imaging Camera Attachment
  • FLIR 1 Year Limited Warranty
