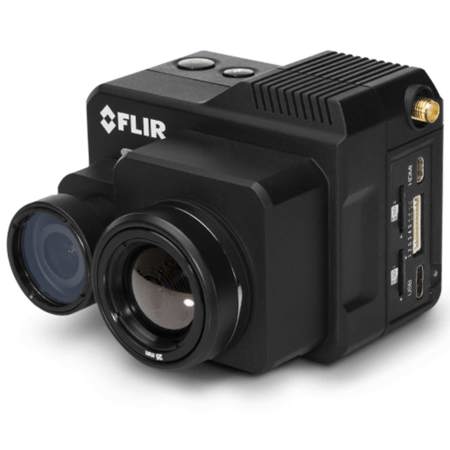

FLIR Duo Pro R 640 Dual-Sensor 4K Thermal Camera for Drones, 640x512, 19mm Lens, 30Hz

SKU: FLI436033262

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

FLIR Duo Pro R Specifications

General

General

Jump to...
  • Spectral Band

    7.5 - 13.5 microm

  • Thermal Frame Rate

    30Hz

  • Thermal Imager

    Uncooled VOx Microbolometer

  • Thermal Lens Options

    19mm: 32 Degree x 26 Degree

  • Thermal Sensitivity

    <50 mK

  • Thermal Sensor Resolution Options

    640 x 512

Connections & Communications

Jump to...
  • 10 Pin Accessory Port

    Power in, Analog Video Out, PWM, MAVLink, Frame Sync Out

  • Digital Video Output

    1080p60, 1080p30, 720p60

  • MAVLink Interface

    Yes

  • Micro - HDMI

    Digital Video Out

  • Mounting Features

    1/4"-20 TPI Tripod Mounts (qty 2, bottom surface)

  • Remote Control

    Yes - PWM (3 channels), MAVLink

  • USB 3.0

    Power in, USB Mass Storage

Environmental & Approvals

Jump to...
  • Operating Temperature Range

    68 Degree F - 122 Degree F (-20 Degree C - +50 Degree C)

  • Operational Altitude

    +38,000'

  • Storage Temperature Range

    -68 Degree F - 140 Degree F (-20 Degree C - +60 Degree C)

Imaging & Optical

Jump to...
  • Global Positioning System [GPS]

    Yes (GPS, GLONASS)

  • Imaging Modes

    IR-only, Vis-only, Picture-in-Picture (IR in Vis)

  • MSX Image Enhancement

    Yes

  • Multiple Color Palettes

    Yes - Adjustable in App and via PWM

  • Other Sensors

    Accelerometer, Gyroscope, Magnetometer, Barometer

  • Visible Camera FOV

    56 Degree x 45 Degree

  • Visible Sensor Resolution

    4000 x 3000

Performance

Jump to...
  • Measurement Accuracy

    +/- 5 C or 5% of readings in the -25 Degree C to +135 Degree C range +/- 20 C or 20% of readings in the -40 Degree C to +550 Degree C range

  • Input Voltage

    5.5 - 26.0 VDC (10-pin JST Port) 5.0 VDC (USB-C Port)

  • Power Dissipation [avg]

    10W

Battery

Jump to...
  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

Physical

Jump to...
  • Dimensions

    3.3 x 3.2 x 2.6" (85 x 81.3 x 68.5mm)

  • Weight

    11.4 oz (325g)

  • UPC Code

    812462025688

About FLIR Duo Pro R

HD Dual-Sensor Thermal Camera for Drones

The ultimate drone thermal imaging solution is here. The new FLIR Duo Pro R combines a high resolution, radiometric thermal imager, 4K color camera, and a full suite of on-board sensors to bring you the most powerful dual-sensor imaging solution in the world for small commercial drones. Capture actionable data around the clock with Duo Pro R.

The Drone Imager Everyone's Been Asking For

Top-of-The-Line Drone Imaging
View thermal and hi-def color imagers in flight, or see them both in picture-in-picture mode, all while recording video and stills on two microSD cards. Gremsy gimbal not included

Built-in Sensor Suite for Image Geo-Tagging
Fully integrated GPS receiver, IMU, magnetometer, and barometer provide all the data needed to create accurate orthomosaics without integrating to external flight controllers.

Easy to Configure
Easy configuration with the FLIR UAS app lets pilots set color palettes, image optimization features, configure PWM inputs without lugging a computer to the field.

FLIR Duo Pro R Features

  • Top-of-the-line drone imaging
  • Built-in sensor suite for image geo-tagging
  • Easy to configure

Key Features

  • Top-of-the-line drone imaging
  • Built-in sensor suite for image geo-tagging
  • Easy to configure

What's in the box:

  • FLIR Duo Pro R 640 Dual-Sensor 4K Thermal Camera for Drones (19mm/30Hz)
  • Lens Caps
  • Integration Cable
  • Media Not Included)
  • FLIR 1 Year Limited Warranty
