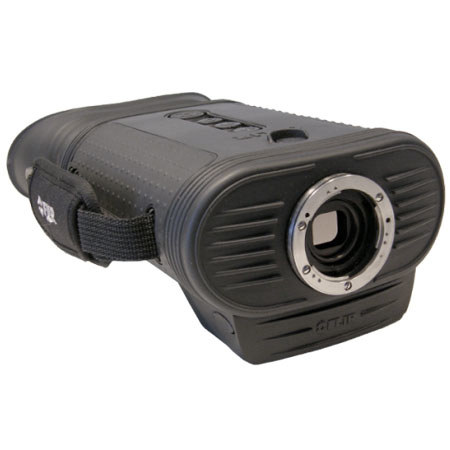

FLIR BHS-X Command Thermal Imaging Handheld Bi-ocular Camera, No Lens, NTSC 9 Hz, 320x240 VOx Microbolometer Detector Type

SKU: FLIBHSXCN9

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

FLIR BHS-X Specifications

  • Detector Size

    320 x 240

  • E-Zoom

    2x

  • Still Image Format

    JPEG; 320 x 240 resolution

  • Video Format

    320 x 240 AVI

  • Detector Type

    Uncooled Microbolometer

  • Spectral range

    7.5 - 13.5 um

  • Thermal Sensitivity

    <50 mK @ f/1.0

  • Start up from stand-by

    < 1.5 seconds

  • Image Processing

    FLIR Proprietary Digital Detail Enhancement

  • SD Card Slot

    Supports up to 16 Gb SDHC Card

  • Focus

    Manual

  • Built-In Display

    Color VGA LCD Display

  • Video Output

    NTSC or PAL composite video; RCA jack

  • Still Image Storage

    SD or SDHC Card

  • Video Storage

    AVI Format; Approx. 8 seconds/Mb on SD Card

  • Real-Time Clock

    Yes

  • USB2 Port

    Yes

  • Battery Type

    4 AA Batteries; NiMH, Li-Ion, or Alkaline

  • Battery Life (Operating)

    4-6 Hours On NiMH batteries

  • Battery Life (Stand-By)

    120 hours on NiMH batteries

  • Rating

    IP-67, Submersible

  • Operating Temp

    -4deg.F - 140deg.F (-20deg.C - 60deg.C)

  • Storage Temp

    -40deg.F - 167deg.F (-40deg.C - 75deg.C)

  • Drop

    1 m drop

  • Dimensions (L x W x H)

    280 x 165 x 67 mm (11.02 x 6.49 x 2.63")

  • Weight

    Without Lens: 998g (35.20 oz)

  • UPC Code

    815121013903

About FLIR BHS-X

The FLIR BHS-X Thermal Imaging Camera Bi-ocular (NTSC 9 Hz) is a powerful tool for the security professional. The FLIR BHS-X is a thermal bi-ocular, providing a more comfortable viewing for long periods of time. Pierce through pitch black darkness, bushes and smoke to spot enemies or intruders. The Command BHS-X Thermal Imaging Cameras from FLIR can help you spot activity from a great distance, thanks to the bi-ocular design; you have greater focusing ability and your eyes can pick up faint objects from greater ranges than a monocular design. With a 320 x 240 pixel resolution, your view is crisp and clear at all times with the FLIR BHS-X Thermal Imaging Camera.

Impressive performance is the reputation FLIR thermal imaging has built through consistent and reliable thermal cameras. The BHS-X is all about ergonomics, portability and durable construction. It is easy to carry, transport and most importantly, use with great effectiveness. With one touch video recording capability, the BHS Thermal Camera is a must have for security and covert operation use.

FLIR BHS-X Features

  • Digital zoom: The BHS-X comes with a 2x digital zoom. The BHS-XR has both a 2x and a 4x digital zoom. This allows you to have a closer look at the situation when necessary
  • Portable and rugged: Weighing just under 1000 grams, batteries included, the FLIR BHS-Series are compact and extremely light systems. They are IP67 rated and operate between -20deg.C and +60deg.C
  • Easy-to-operate: Ergonomic and easy-to-use, the BHS-Series are fully controlled with just 5 buttons on top of the unit
  • Ideal for covert operations: In operation, the BHS-Series are totally silent units. Eyebrow style light shield eye-pieces allows the operator to remain fully covert, in total darkness
  • One touch video recording: Just press a button and start recording thermal video on a removable SD card
  • Image storage: Both versions of the BHS-Series allow to store thermal images in JPEG format on a removable SD card. Images can be used as evidence
  • Long battery life: The battery compartment hides 4 rechargeable AA NiMH batteries. Good for 4 hours continuous operation. The BHS-Series can also run on standard commercial off the shelf non-rechargeable Alkaline or Lithium Ion AA-batteries
  • Hot shoe: The BHS-Series come standard with a "hot shoe" which can easily be attached to the camera. It allows to charge the camera and connect the camera to an external video monitor while the camera is mounted on a tripod
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • Digital zoom: The BHS-X comes with a 2x digital zoom
  • This allows you to have a closer look at the situation when necessary
  • BHS-XR has both a 2x & a 4x digital zoom
  • Digital zoom: The BHS-XR has both a 2x & a 4x digital zoom
  • Portable & rugged
  • Easy-to-operate

What's in the box:

  • FLIR BHS-X Command Thermal Handheld Bi-ocular Camera
  • Hot Shoe Charging & Video Output Attachment
  • 4 Rechargeable AA NiMH Batteries
  • AC Power Adapter/Charger
  • Car adapter/Charger
  • Neck Lanyard
  • USB Cable
  • Video Output Cable
  • Hard Carrying Case
  • Product CD with Ops Manual
  • FLIR Video Player and End User Graphical User Interface (GUI)
  • FLIR Warranty
