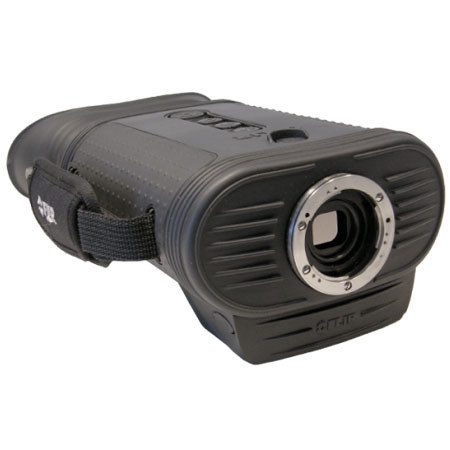

FLIR BHS-XR Command Bi-ocular Thermal Imaging Camera, No Lens, NTSC 30 Hz
See all FLIR items

FLIR BHS-XR Command Bi-ocular Handheld Thermal Imaging Camera, No Lens, NTSC 30 Hz, 640x480 Detector Size

SKU: FLIBHSXRN30
Be the first to review this item

This item is no longer available.

Recommended Alternatives

FLIR LS-X: Picture 1 regular
FLIR LS-X 19mm Thermal Night Vision Monocular, NTSC 60Hz Refresh Rate
$3,229.00
FLIR LS-XR: Picture 1 regular
FLIR LS-XR 35mm Thermal Night Vision Monocular, NTSC 30Hz Refresh Rate
$4,279.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR BHS-X Specifications

  • Detector Size

    640 x 480

  • E-Zoom

    2x, 4x

  • Still Image Format

    JPEG; 640 x 480 resolution

  • Video Format

    640 x 480 AVI

  • Detector Type

    Uncooled Microbolometer

  • Spectral range

    '7.5 - 13.5 um

  • Thermal Sensitivity

    <50 mK @ f/1.0

  • Start up from stand-by

    < 1.5 seconds

  • Image Processing

    FLIR Proprietary Digital Detail Enhancement

  • SD Card Slot

    Supports up to 16 GB SDHC Card

  • Focus

    Manual

  • Built-In Display

    Color VGA LCD Display

  • Video Output

    NTSC composite video; RCA jack

  • Still Image Storage

    SD or SDHC Card

  • Video Storage

    AVI Format; Approx. 8 seconds/MB on SD Card

  • Real-Time Clock

    Yes

  • USB2 Port

    Yes

  • Battery Type

    4 AA Batteries; NiMH, Li-Ion, or Alkaline

  • Battery Life (Operating)

    4-6 Hours On NiMH batteries

  • Battery Life (Stand-By)

    120 hours on NiMH batteries

  • Rating

    IP-67, Submersible

  • Operating Temp.

    -4deg.F - 140deg.F (-20deg.C - 60deg.C)

  • Storage Temp.

    -40deg.F - 167deg.F (-40deg.C - 75deg.C)

  • Drop

    1 m drop

  • Dimensions (L x W x H)

    280 x 165 x 67mm / 11.02 x 6.49 x 2.63"

  • Weight

    998 g / 35.20 oz

  • UPC Code

    815121013934

About FLIR BHS-X

The FLIR BHS-XR Command Bi-ocular Handheld Thermal Imaging Camera (No Lens, NTSC 30 Hz) has a two-eye advantage over the Cyclops of a monocular NVD. Providing a full coverage eyepiece, inter-ocular adjustment and ergonomic comfort, this H-Series bi-ocular thermal night vision camera is an essential tool for extended patrols, covert surveillance, critical infrastructure protection and high-threat security missions.

Employing a 640 x 480 FLIR thermal imaging core with advanced image-processing algorithms, the BHS Command - QD100 Thermal Bi-ocular provides crisp, clear thermal video day and night. The thermal camera allows officers to see in total darkness, through smoke, dust and light fog, as well as through light camouflage and foliage in any lighting conditions, providing a clear tactical advantage.

With a 100 mm lens, this BHS Command model bi-ocular provides excellent long range viewing with 640 x 480 native resolution in the viewfinder. At 4x, the resolution is 160 x 120. Raised rubber sleeves afford additional comfort for long term viewing and captive low-profile lens caps help protect the optics. Tactile rubber hand grips provide an excellent non-slip surface. A quick release hot-shoe makes access to AC power a "snap," and a latched battery door provides a fast and easy method to exchange or recondition the batteries. There is an integrated real-time clock and a USB2 port.

FLIR BHS-X Features

  • Digital zoom: The BHS-XR has both a 2x and a 4x digital zoom. This allows you to have a closer look at the situation when necessary
  • Portable and rugged: Weighing just under 1000 grams, batteries included, the FLIR BHS-XR Bi-ocular is compact and extremely light systems. It is IP67 rated and operate between -20deg.C and +60deg.C
  • Easy-to-operate: Ergonomic and easy-to-use, the BHS-XR is fully controlled with just 5 buttons on top of the unit
  • Ideal for covert operations: In operation, the BHS-XR Command Bi-ocular is totally silent units. Eyebrow style light shield eye-pieces allows the operator to remain fully covert, in total darkness
  • One touch video recording: Just press a button and start recording thermal video on a removable SD card
  • Image storage: Allows to store thermal images in JPEG format on a removable SD card. Images can be used as evidence
  • Long battery life: The battery compartment hides 4 rechargeable AA NiMH batteries. Good for 4 hours continuous operation. The BHS-XR Command Bi-ocular can also run on standard commercial off the shelf non-rechargeable Alkaline or Lithium Ion AA-batteries
  • Hot shoe: The BHS-XR Bi-ocular comes standard with a "hot shoe" which can easily be attached to the camera. It allows to charge the camera and connect the camera to an external video monitor while the camera is mounted on a tripod
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Digital zoom: The BHS-X comes with a 2x digital zoom
  • This allows you to have a closer look at the situation when necessary
  • BHS-XR has both a 2x & a 4x digital zoom
  • Digital zoom: The BHS-XR has both a 2x & a 4x digital zoom
  • Portable & rugged
  • Easy-to-operate

What's in the box:

  • FLIR BHS-XR Command Bi-ocular Handheld Thermal Imaging Camera
  • Hot Shoe Charging & Video Output Attachment
  • 4 x Rechargeable AA NiMH Batteries
  • AC Power Adapter/Charger
  • Car adapter/Charger
  • Neck Lanyard
  • USB Cable
  • Video Output Cable
  • Hard Carrying Case
  • Product CD with Ops Manual
  • FLIR Video Player and End User Graphical User Interface (GUI)
  • FLIR Warranty
