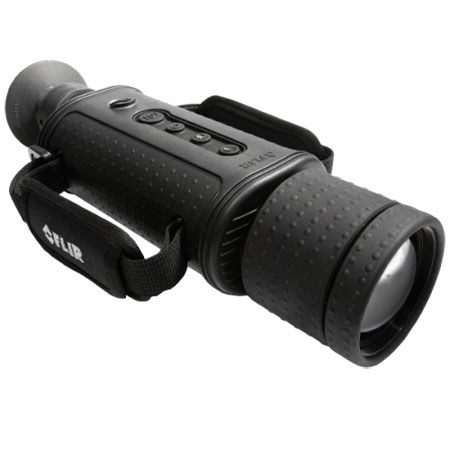

FLIR HS-307 COMMAND, Handheld Thermal Imaging Camera with 65mm Lens, NTSC 30 Hz Video

SKU: FLIHS307CN30

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR HS-307 Specifications

System Overview:

System Overview:

Jump to...
  • Models

    Patrol and Command Models

  • Battery Type

    4 AA Batteries; NiMH, Li-Ion, or Alkaline

Lens Options

Jump to...
  • HS-324

    Field of View: 24° x 18°
    Field of View (w/ Optional 2X Extender): 12° x 9°

Model Details

Jump to...
  • Patrol Model

    H-Series Handheld Thermal Camera (with choice of lens), Hot Shoe Charging & Video Output Attachment, 4 Rechargeable AA Batteries, AC Power Adapter/Charger, Car Adapter/Charger, Neck Lanyard, Manual, USB Cable, Video Output Cable

Additional Features/Command Model Only

Jump to...
  • Still Image Storage, Format

    SD Card, JPEG; 320 x 240 resolution

Environmental

Jump to...
  • Ratings

    IP-67, Submersible, 1 m drop

Physical

Jump to...
  • Weight

    1.45 lb (653 g) with batteries; add 0.7 lb (315 g) for 2x extender

  • Start up from stand-by

    < 1.5 Seconds

  • Thermal Sensitivity, Waveband

    <50 mK @ f/1.0, 7.5 - 13.5 m

  • Detector Type

    320 x 240 VOx Microbolometer

  • Image Processing

    FLIR Proprietary Digital Detail Enhancement

  • Focus, Zoom

    Manual, 2X E Zoom

  • Video Output

    NTSC or PAL composite video; RCA jack

  • Battery Life Operating (Stand-by)

    >6 Hours on NiMH batteries, (120 hours on NiMH batteries)

  • HS-307

    Field of View: 7° x 5°

  • Command Model

    Everything in Patrol Model, plus Tactical Carrying Pouch, image save function, video save function with real-time stamp, USB2 port enabled

  • Video Storage, Format

    Approx. 8 seconds/Mb on SD Card, 320 x 240 MPEG-4

  • Operational Temp

    -4°F to 140°F (-20°C to 60°C)

  • Size

    10.42" x 3.33" x 2.62" (256 x 84.5 x 66.5 mm)

  • UPC Code

    815121010155

About FLIR HS-307

See at Night, Stay Safe...
• FLIR H-Series HS-307 Patrol Handheld Thermal Imaging Cameras allow law enforcement officers to see clearly in total darkness, giving them the undeniable tactical advantages they need to stay safe and operate effectively at night.

• With true night vision finally available to every agency, officers will have the information they need to make quick decisions, enhancing mission effectiveness, maximizing operational capabilities, and improving officer safety.

FLIR H-Series HS-307 Handheld Thermal Imaging Cameras Allow Law Enforcement and Military Officers to...
• See suspects in total darkness. The FLIR H-Series provides a 320 x 240 resolution VOx microbolometer for half the cost of comparable handheld thermal cameras.

• This resolution will give law enforcement officers excellent, high-fidelity thermal imagery that provides the detail necessary for cutting edge performance and improved detection and recognition ranges in total darkness, as well as through smoke, dust, and light fog.

See more and see farther than with other night vision technologies...
• See better through camouflage and foliage in any lighting conditions. Because FLIR H-Series cameras see heat, not light, they're not fooled by suspects wearing dark clothes and hiding in bushes. Crooks can't hide their heat, so they can't hide from the FLIR H-Series.

• See more and see farther than with other night vision technologies. Because H-Series thermal cameras see clearly without any light whatsoever, they can see farther at night than technologies that need ambient light to work and they can see heat sources that these other cameras could never find

• Deploy with the latest technology at their fingertips. With a variety of lens options, on-board image and video capture capability. H-Series is the most potent imaging package available today. And now it's affordable enough for almost every agency.

The Power of Thermal Imaging in the Palm of Your Hand:
• Shuttered Eyepiece: Keeps light from coming out of the viewfinder, helping the operator to stay covert
• Two-sided Hand Strap: Accommodates both left-handed and right-handed users
• Multiple Lens Options: Choose the 19mm lens with 24° field of view (and its optional 2x optical extender), or the longer-range 65mm lens with 7° field of view for maximum standoff viewing capability
• SD Card Slot: Allows for easy field upgrades and the storage of captured still images and video evidence on the removable SD card.* Please note: With the latest software upgrade from FLIR the SDHC (High Capacity) Cards will now work up to 4GB
• Rugged Design: All-weather design is built to withstand the demands of day-in, day-out law enforcement operations. It's even submersible
• USB2 Connection: Rapid transfer of still images and video from the H-Series to a PC.*
• Hot Shoe Attachment: The included "hot shoe"attachment provides power-in & RCA composite video-out connections while maintaining the camera's tripod mounting capability
• Battery Compartment: Four rechargeable AA NiMH batteries are good for more than six hours of continuous operation. H-Series also runs on standard non-rechargeable alkaline and Lithium Ion AA batteries. (Command Model Only)

FLIR HS-307 Features

  • Easy to use direct button access - no menus:
  • Power: 6+ Hours of Operation / 5+ Days in Standby / Instant-On from Standby
  • Image/Video Save: Records still images or video to SD Card
  • Zoom: 2X Electronic Zoom
  • Brightness: Adjusts 8 Levels of Screen Brightness
  • Polarity: Switches between white-hot and black-hot display modes
  • On-Board SD Card and USB Ports:
  • For Image or Video Storage and Transfer
  • Recommended 1-4GB Standard SD Cards
  • Video Size: ~7 seconds = 1MB / Image Size: ~90 KB per image
  • 1GB SD Card can hold about: 1.93 Hours of Video / 11,000 Captured Thermal Images
  • 2GB SD Card can hold about: 3.86 Hours of Video / 22,000 Captured Thermal Images
  • 4GB SD Card can hold about: 7.73 Hours of Video / 44,000 Captured Thermal Images
  • Command model with still frame and full video storage:
  • The H-Series Command package has additional features that let officers capture and store thermal images and video for use as evidence
  • Still image capture: Allows officers to capture and store thermal images in JPEGformat on a removable SD card with the touch of a button
  • A 1GB SD card will hold up to Twenty thousand 320 x 240 JPEG images
  • Video storage: With the push of a button the H-Series can record live thermal video in MPEG-4 format to the SD card
  • Real-time clock: Encodes the date and time on captured still images and video.
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • Easy to use direct button access
  • No menus:
  • Power: 6+ Hours of Operation / 5+ Days in Standby / Instant-On from Standby
  • Image/Video Save
  • Zoom: 2X Electronic Zoom
  • Brightness: Adjusts 8 Levels of Screen Brightness

What's in the box:

  • HS-307 Thermal Camera with 65mm Lens
  • NTSC 30Hz Video
  • Tactical Carry Pouch
  • Hot Shoe
  • Operator's Manual
  • 4 Rechargeable Batteries
  • Hot Shoe Charging and Video Output Attachment
  • Video Output Cable
  • AC Charger
  • Lanyard
  • Flir One Year Limited Warranty
