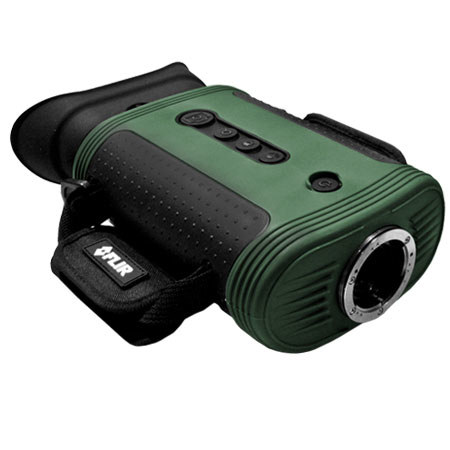

FLIR Scout BTS-XR NTSC 7.5Hz Pro Bi-Ocular Thermal Night Vision Camera without Lens, 640x480 Resolution, 2x /4x E-Zoom, Color VGA LCD Display

SKU: FLISBTSXRP

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR Scout BTS-XR NTSC Specifications

  • Detector Size

    640 x 480

  • E-Zoom

    2x, 4x

  • Still Image Format

    JPEG; 640 x 480 resolution

  • Video Format

    640 x 480 AVI

  • Detector Type

    Uncooled Microbolometer

  • Spectral range

    7.5 - 13.5 um

  • Thermal Sensitivity

    <50 mK @ f/1.0

  • Start up from stand-by

    < 1.5 seconds

  • Image Processing

    FLIR Proprietary Digital Detail Enhancement

  • SD Card Slot

    Supports up to 16 Gb SDHC Card

  • Focus

    Manual

  • Built-In Display

    Color VGA LCD Display

  • Video Output

    NTSC or PAL composite video; RCA jack

  • Still Image Storage

    SD or SDHC Card

  • Video Storage

    AVI Format; Approx. 8 seconds/Mb on SD Card

  • Real-Time Clock

    Yes

  • USB2 Port

    Yes

  • Battery Type

    4 AA Batteries; NiMH, Li-Ion, or Alkaline

  • Battery Life (Operating)

    4-6 Hours On NiMH batteries

  • Battery Life (Stand-By)

    120 hours on NiMH batteries

  • Rating

    IP-67, Submersible

  • Operating Temp.

    -4deg.F - 140deg.F (-20deg.C - 60deg.C)

  • Storage Temp.

    -40deg.F - 167deg.F (-40deg.C - 75deg.C)

  • Drop

    1 m drop

  • Dimensions (LxWxH)

    280x165x67mm / 11.0x6.49x2.63"

  • Weight

    998g / 35oz

About FLIR Scout BTS-XR NTSC

With the same image clarity and detail that knocked your socks off in FLIR's Scout monocular cameras, FLIR Scout BTS-XR Pro Bi-Ocular Thermal Night Vision Camera gives outdoor enthusiasts even more choices and control in their thermal viewing experience. Featuring a full coverage eyepiece, inter-ocular adjustment, ergonomic comfort, straightforward controls, interchangeable quick disconnect lenses and the unrivaled performance that only FLIR's high resolution thermal cores can deliver, the Scout Bi-Ocular is a must have for any avid outdoor enthusiast.

Keep track of your party, see animals, track game and travel safely at night or in conditions with poor visibility. Your Scout Bi-Ocular isn't just for out on the trail-there are dozens of on-the-water, on-the-go, or at-home uses. Employing either a 640x 480 FLIR thermal imaging core with advanced image-processing algorithms, the high performance Scout Bi-Ocular allows you to see more and see farther than any other night vision technology.

FLIR Scout BTS-XR NTSC Features

  • Digital zoom: The BHS-XR has both a 2x and a 4x digital zoom. This allows you to have a closer look at the situation when necessary
  • Portable and rugged: Weighing just under 1000 grams, batteries included, the FLIR BTS-XR is compact and extremely light systems. It is IP67 rated and operate between -20deg.C and +60deg.C
  • Easy-to-operate: Ergonomic and easy-to-use, the BHS-XR is fully controlled with just 5 buttons on top of the unit
  • Ideal for covert operations: In operation, the BHS-XR is totally silent units. Eyebrow style light shield eye-pieces allows the operator to remain fully covert, in total darkness
  • One touch video recording: Just press a button and start recording thermal video on a removable SD card
  • Image storage: It allows to store thermal images in JPEG format on a removable SD card. Images can be used as evidence
  • Long battery life: The battery compartment hides 4 rechargeable AA NiMH batteries. Good for 4 hours continuous operation. The BHS-XR can also run on standard commercial off the shelf non-rechargeable Alkaline or Lithium Ion AA-batteries
  • Hot shoe: The BHS-XR comes standard with a "hot shoe" which can easily be attached to the camera. It allows to charge the camera and connect the camera to an external video monitor while the camera is mounted on a tripod
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • Digital zoom: The BHS-XR has both a 2x & a 4x digital zoom
  • This allows you to have a closer look at the situation when necessary
  • Portable & rugged
  • Easy-to-operate
  • Ideal for covert operations
  • One touch video recording

What's in the box:

  • FLIR Scout BTS-XR Pro Bi-Ocular Thermal Night Vision Camera without Lens
  • Hot Shoe Charging & Video Output Attachment
  • 4 x Rechargeable AA NiMH Batteries
  • AC Power Adapter/Charger
  • Car Adapter/Charger
  • Neck Lanyard
  • USB Cable
  • Video Output Cable
  • Hard Carrying Case
  • Product CD with Ops Manual
  • FLIR Video Player Software and End User Graphical User Interface (GUI)
  • FLIR Warranty
