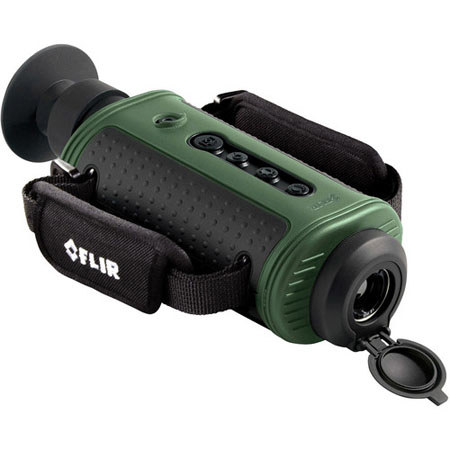

FLIR Scout TS32 Handheld Thermal Night Vision Camera, 320x240 Resolution, 19mm Lens, NTSC 7.5Hz Video, 2x Digital E-Zoom

SKU: FLITS3275

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR TS32 Specifications

  • Lens

    19 mm/2x Extender (opt.)

  • Resolution

    320 x 240

  • Field of View (H x V)

    24deg. x 18deg./12deg. x 9deg.

  • Polarity

    White Hot, Black Hot, InstAlert

  • Video Output (9 Hz refresh rate)

    NTSC composite video

  • Startup

    2 seconds

  • E-Zoom

    2x

  • Battery

    4 AA NiMH Batteries (included) or Li-Ion or Alkaline AA

  • Rating

    IP-67

  • Detect Man-Sized Target

    19 mm lens: 500 yards
    2x extender: 900 yards

  • Operating Temperature

    -4deg.F to 140deg.F (-20deg.C to 60deg.C)

  • Dimensions (LxWxH)

    9.36x3.33x2.62" / 23.7x8.45x6.65cm

  • Weight

    1.59lbs / 0.72kg

About FLIR TS32

When you want a thermal camera that's easy to pack, easy to use and delivers a high-quality thermal image that you can rely on, the FLIR Scout TS32 Handheld Thermal Night Vision Camera (NTSC 7.5Hz Video) is your ideal choice. Lens and thermal detector options allow you to customize the right camera for you.

The Scout, powered by the same advanced technology used by military and law enforcement, is a powerful personal thermal imaging camera affordable enough to give every outdoorsman the unsurpassed practical advantages of full-resolution thermal imaging night vision.

Small, rugged and ergonomic, Scout provides direct push-button access to all of its controls and weighs less than a pound and a half. Built around FLIR's bleeding-edge thermal night vision technology, Scout uses a thermal camera that creates video images from heat, not light and displays this video on its built-in LCD eyepiece so you can experience the world as it happens, day or night.

FLIR TS32 Features

  • Easy Operation: Engage power, recording, zooming, brightness and polarity at the push of a button
  • Shuttered Eyepiece: Seals light in the viewfinder so you won't alert animals or other targets to your location
  • SD Card Slot: Store still images and video on a removable SD card
  • USB2 Connection: Permits rapid transfer of still images and video to a PC
  • Rugged All-Weather Design: Built to withstand the demands of day-in, day-out rugged outdoor use
  • Ready to Go When You Are: Battery operation with field-swappable AA common batteries plus Power In/Charging, RCA video out via standard Hot Shoe attachment
  • Three Selectable Palettes: White Hot, Black Hot and the powerful InstAlert detection palettes provide excellent image detail in different environments
  • Power Button: The Scout camera has 3 power modes: On, Off and Standby
  • Capture Button: When enabled, takes snapshots (press and release) or video clips (press and hold 3 seconds to start video recording). The files are stored on the integrated SD card
  • Display Brightness: Toggle through five brightness settings
  • White/Black Hot/InstAlert: In White Hot, hotter items appear as white or light gray. In the Black Hot, hotter items appear as black or dark gray. In InstAlert, hot items in a scene are outlined in red
  • 2x Zoom: When enabled, causes the image to zoom to 2X
  • Diopter Controls: The diopter adjustment knob allows a +/-2 diopter range
  • Export of this product outside of the United States of America is not allowed and is controlled by the US Department of State

Key Features

  • USB2 Connection
  • Rugged All-Weather Design
  • Display Brightness
  • Diopter Controls

What's in the box:

  • FLIR Scout TS32 Handheld Thermal Night Vision Camera
  • Neck Lanyard
  • Video Cable
  • Operator's Manual
  • 4 x AA NiMH Batteries
  • FLIR Warranty
