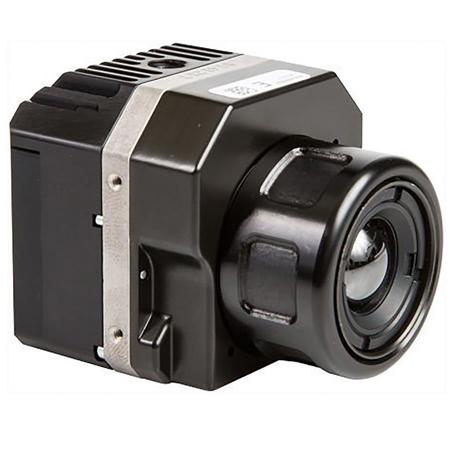

FLIR VUE 640 Thermal Imaging Camera, 13mm Lens, 30Hz Full Frame Rate
SKU: FLIV6401330
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About FLIR VUE 640
Easy, Affordable Thermal Imaging for Commercial sUAS
FLIR VUE brings affordable thermal imaging that is easy to integrate and easy to use to every small unmanned aircraft.
• 640x512 Pixels
• 13 mm; 45deg. (H) x 37deg. (W) FoV
• 30Hz (7.5Hz Available)
• 17 micrometer Pixel Pitch
• 72 Grams
• 2.26" x 1.75" (including lens)
• 4.0 - 6.0 VDC
• LWIR
With FLIR VUE you get all the thermal imager you need for sUAS operations without having to pay for functionality you'll never use. Pre-configured to give you optimal imagery in a wide variety of conditions, FLIR VUE is light enough that it won't throw off your center of gravity or impact your flight times. With simple power-in and video-out connections, it's easy to integrate and get flying on just about any platform. Thanks to FLIR VUE, thermal's done right.
FLIR VUE Applications
With the same powerful thermal imaging core used in the most popular cameras in the world, FLIR VUE gives the same performance for a ground breaking low price, making it perfect for applications like:
• Search and Rescue
• Fire Fighting
• Precision Agriculture
• Roof Inspections
• Power Line Inspections
• Substation Inspections
• Cell Tower Inspections
• Security Surveying
• And just about anything else you can dream up
Easy to Connect
Just plug in a GoPro-compatible cable into the 10-pin mini-USB connector to feed the camera a regulated 5VDC power supply and get analog video out to your video transmitter or OSD and you're ready to go. If you need more detailed information, the pinout for VUE's 10-pin mini-USB connector is available in the VUE IDD drawing under the Product Literature tab below.
Easy to Mount
Because of FLIR VUE's light weight, you've got lots of mounting options available to you on any kind of aircraft. Whether you want to hard-mount it or put it on a brushless gimbal, FLIR VUE can do the job.
Easy to Use
There's really nothing to it. Since all of the configuration has already been done, just power it up and go fly. But if you want to dig into the settings a little deeper, just download their Camera Controller GUI and connect FLIR Vue to your PC with a USB cable.
FLIR VUE 640 Features
- Thermal Imaging Cameras are Export Controlled by the U.S. Department of Commerce. Validated Export Licenses MUST be Obtained from the U.S. Department of Commerce Prior to Export or Re-export of such Devices outside of the United States. Export is PROHIBITED to Cuba, Iran, North Korea, Sudan, and Syria.
