FLIR MR60 Moisture Meter Pro

SKU: FLMR60
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR MR60 Specifications

  • Pin Moisture Via External Probe Range

    Wood groups 1-9:
    1-5: oak, most maples, pine, hickory, teak, sycamore - 7 to 30% (+/- 1.5% (reference only))

    6-9: building materials: plywood, drywall, OCD - 0 to 20% (reference only)

  • Pinless Moisture Range

    0-100 relative measurement

  • Pinless Moisture Depth

    1.9cm (0.75") maximum

  • Sample Rate

    10Hz (approx., both modes)

  • Measurement Resolution

    0.1

  • Response Time Pinless

    100 ms

  • Response Time Pin Mode

    750 ms

  • Display type (W x H)

    QVGA (320 x 240) pixel 2.3" 64K color TFT graphical display

  • Stored Data File Format

    Comma Separated Values (.csv) format with date/time stamp. Reading value, reading type included

  • Saved Image File Format

    Bitmap (.bmp) with measurement values overlaid

  • Stored Image Capacity

    9999 images

  • Internal Memory

    4GB

  • Certification Standards

    EN61326 (EMC), EN61010 (Battery + Charger)

  • Agency Approvals

    FCC Class B, CE, UL

  • Power Requirements

    Integrated rechargeable battery

  • Continuous Run Time

    18 hours max

  • Typical Usage

    4 work weeks

  • Auto Power Off

    Programmable: OFF, 1, 5, or 20 minutes

  • Power Adapter

    100-240 V input/ 5 V 1A output

  • Battery

    3.7 V, 3000mAh Li-ion rechargeable via micro USB

  • IP Rating/Drop Test

    IP54/3m (9.8')

  • Operating Temperature

    0 to 50deg. C (32 to 122 deg. F)

  • Storage Temperature

    -10 to 60deg. C (14 to 140 deg. F)

  • Operating Humidity

    <= 90%, 0 to 30deg. C (32 to 86 deg. F)
    <= 75%, 30 to 40deg. C (86 to 104 deg. F)
    <= 45%, 40 to 50deg. C (104 to 122 deg. F)

  • Storage Humidity

    90% RH

  • UPC Code

    793950370605

About FLIR MR60

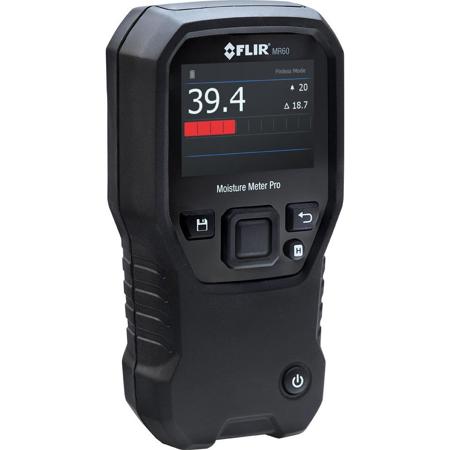

FLIR MR60 Moisture Meter Pro
The FLIR MR60 Moisture Meter Pro is an easy-to-use pin and pinless moisture meter with advanced functionality. An integrated pinless sensor and an external pin probe provide the flexibility to take destructive or non-destructive measurements. Select one of the eleven material groups for pin moisture or set a reference point for pinless moisture scanning. Then conveniently save screenshots of your measurements as a CSV file with the date, time and settings.

Flexibility for Destructive or Non-destructive Measurements
Quickly scan for moisture using the integrated pinless moisture sensor. An external pin probe is included for resistive moisture content measurements in a variety of substrates.

Clear, Accurate Readings
Choose from 11 material group selections for pin-based readings, then save up to 10,000 screenshots that you can transfer and view via PC/USB. Set a programmable alarm with audible and color visual alerts to notify you of high moisture.

Simple to Use and Create Reports
MR60 features a bright, easy-to-read color display and intuitive graphical user interface with helpful function labels in local languages. Save files and generate reports with free FLIR Tools PC software. No special training required!

Pin and Pinless
Integrated pinless moisture measurements for fast detection and external pin probe included with expandable probe options.

Durable
Can withstand a 3-meter drop.

Save Readings
Save up to 10,000 screenshots, then transfer and view them via PC/USB.

Color Display
Bright, easy-to-read display with large digits and color bargraph.

FLIR Tools
Includes FLIR Tools professional reporting software for Mac or PC.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • FLIR MR60 Moisture Meter Pro
  • FLIR 2 Year Warranty for Moisture Meter and 10 Year Warranty for Detector
