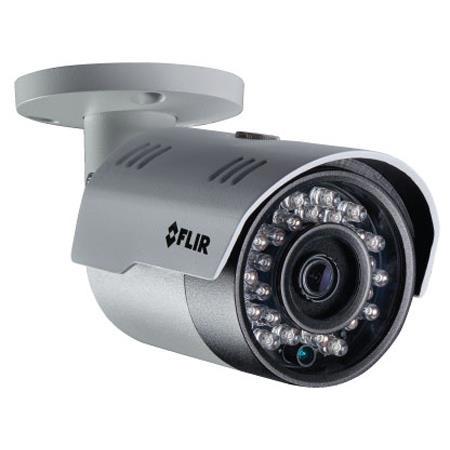

FLIR 1MP Fixed IR Bullet IP Camera with 3.6mm F1.8 Lens

SKU: FLN133BB

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

FLIR N133BB Specifications

  • Imaging Device

    1 MP, 1/4"

  • Effective Pixels

    1280 (H) x 720 (V)

  • Image Type

    CMOS

  • Image Readout

    Progressive Scan

  • Day / Night

    Auto(ICR)/Color/B/W

  • Mechanical IR Cut Filter

    Yes

  • Min. Illumination

    0.1lux (Color)
    0.01lux (B/W)

  • S/N Ratio

    >50dB

  • Field of View (H)

    64 Degree

  • IR Illumination

    Yes, 850nm

  • IR On / Off Control

    Yes

  • Video Output

    RJ45

  • Electronic Shutter Range

    1/4 - 1/10000s

  • Lens Type

    Fixed

  • Mount Type

    Board type

  • Focal Length

    3.6mm

  • Aperture

    F1.8

  • Video Compression

    MJPEG / H.264

  • Video Streams

    H.264 & MJPEG Dual Stream

  • Resolution Selection

    720P (1280 x 720) / D1 (704 x 576/704 x 480) / CIF (352 x 288/352 x 240)

  • Aspect Ratio

    16:09

  • Frame rates (Maximum)

    720p / D1 / CIF @ 25/30 fps

  • Bit Rate Control

    CBR / VBR

  • Bit Rate Selection

    Compression Type: 56K - 8129Kbps

  • Wide Dynamic Range

    Digital WDR

  • Backlight Compensation

    BLC / HLC / DWDR

  • White Balance

    Auto / Manual

  • Gain Control

    Auto / Manual

  • Noise Reduction

    2D

  • Video Mirroring

    Horizontal Mirror

  • Video Overlay

    Time / Date / Camera / Custom

  • Window Blanking (Privacy)

    Up to 4 Areas

  • Menu Languages

    English

  • Protocols

    IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

  • ONVIF Conformance

    Profile S

  • Users

    Up to 20 users

  • Product Dimensions (L x W x H)

    6.8" x 3.1" x 2.8" 173mm x 78mm x 72mm

  • Product Weight

    1.4lbs / 0.6kg

  • Network Port

    10 / 100 Base-T

  • Power Input

    12V DC, PoE

  • Power Consumption (Maximum)

    3W

  • Current Consumption (Maximum)

    250mA

  • Operating Temperature

    -22 Degree F - 140 Degree F / -30 Degree C - 60 Degree C

  • Operating Humidity

    Less then 95% RH

  • Ingress Protection

    IP66

  • UPC Code

    841430010357

About FLIR N133BB

The FLIR Fixed Mini Bullet IP Cameras offers HD picture quality in real time with outstanding night vision capabilities. Installation is made easy with PoE operation included. Built rugged, FLIR's Fixed IR Bullet IP Cameras are suitable for both indoor and outdoor installations (IP66 rated) and cold climates (-22 Degree F/-30 Degree C).

FLIR N133BB Features

  • HD Picture Quality
  • Outstanding image detail, both day and night
  • 1MP HD, 720p @ 30/25fps, 1/4" CMOS, 3.6mm lens, 70ft/21m IR
  • Easy Installation
  • PoE (Class 3) support for simplified cabling
  • 12V / PoE (802.3af) operation
  • Onvif Profile S conformance
  • Cable through bracket design
  • Rugged Design
  • Durable weatherproof housing
  • IP66 weatherproof rated
  • Cold climate capable (-22 Degree F/-30 Degree C)
  • True Day/Night with ICR, 2D-DNR, D-WDR
  • FLIR Cloud Remote Viewing
  • Remote access via iOS, Android, PC/Mac with FLIR Cloud
  • Centralized viewing and control of up to 64 cameras on each screen with PC/Mac
  • Access live or recorded video at any time on your iPad, iPhone or Android device
  • Advanced mobile app features including remote playback, push notifications for motion/alarm, E-map, manual record/snapshot to device

Key Features

  • HD Picture Quality, Easy Installation, Rugged Design, FLIR Cloud Remote Viewing
  • Outstanding image detail, both day and night
  • 1MP HD, 720p @ 30/25fps, 1/4" CMOS, 3.6mm lens, 70ft/21m IR
  • PoE (Class 3) support for simplified cabling
  • 12V / PoE (802.3af) operation
  • Onvif Profile S conformance

What's in the box:

  • IP Bullet Camera
  • 1 x Allen Key
  • 4 x Mounting Screws
  • 4 x Drywall Anchors
  • Quick Start Guides
  • 1 x Software CD
  • 3 Year Warranty
