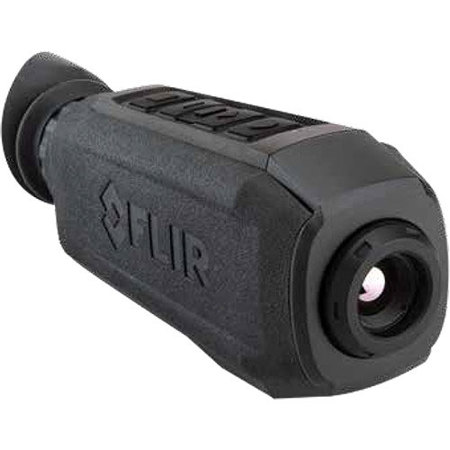

FLIR Scion PTM166 .7x 13.8mm Lens Thermal Imaging Monocular, 60Hzk Refresh Rate

SKU: FLPTM166 MFR: 7TM-01-F310
Earn VIP Reward Points

Key Features

  • Experience superior thermal imaging with the FLIR Scion PTM166's advanced 640x512 detector.
  • Capture clear images and videos with the integrated video recording feature on this monocular.
  • Enjoy extended scouting with a 4.5-hour battery life, perfect for nighttime explorations.
  • Quickly identify heat signatures with multiple temperature imaging modes like White Hot & Black Hot.
  • The .7x magnification and wide field of view helps you navigate terrain and track wildlife.
  • Durable build quality ensures reliable thermal performance in demanding outdoor conditions.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?MICHAEL S : Excited to try an imager with a high refresh rate and better resolution than most consumer offerings.

Reviews about this item

Review Summary

FLIR Scion PTM Specifications

System Overview

System Overview

Jump to...
  • Color

    Black

  • Detector Type

    640 x 512

  • Eye Relief

    16mm

  • Internal Memory

    2 GB Internal Storage / Optional microSD Card (up to 128 GB)

  • Lens System

    13.8mm

  • Optical Magnification

    .7x

  • Display Focus

    Manual

  • Core Technology

    BOSON 12 microm Vox Microbolometer

Connections & Communications

Jump to...
  • Bluetooth

    BLE 4.1+

  • Geo Positioning [GPS]

    No

  • Video Recording

    Yes

  • WiFi

    Video Streaming, File Transfer

  • TruWITNESS Integration

    Yes

Imaging & Optical

Jump to...
  • Field of View

    31 Degree x 24 Degree

  • Focus

    Infinite

  • Refresh Rate

    60 Hz

  • Auto Power Off

    Yes

  • Battery Life

    Up to 4.5 hours at 20 Degree C

  • Battery Type

    6x CR123A 3V Lithium Battery

Presentation

Jump to...
  • Display

    Quad-VGA (1280x960) High definition display

  • User Interface

    USB-C, Power In, Video Out, Video and Image File Transfer

  • Image Capture

    Yes

  • Temperature Imaging Modes

    White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, Lava

  • Viewing Modes

    Scouting, Picture-in-Picture

  • Picture While Recording

    Yes

  • Real Time Clock

    Yes

  • Date/Time Stamp

    Yes

  • Magnetic Compass

    Yes

  • Accelerometer

    Yes

Physical

Jump to...
  • Mounting

    1/4-20 Tripod Mount

  • Size

    9 x 3 x 2.4" (227 x 76.8 x 60.5mm)

  • Weight

    Without Batteries: 1 lb (452g)
    With Batteries: 1.26 lb (572g)

  • UPC Code

    849815010169

About FLIR Scion PTM

Explore the world of advanced thermal imaging with the high-tech Scion PTM166 .7x 13.8mm Lens Thermal Imaging Monocular. Designed to provide law enforcement professionals with unparalleled thermal surveillance, this powerful device integrates high-performance thermal imaging and FLIR TruWITNESS compatibility into a robust, IP67-rated handheld monocular.

This advanced thermal imaging monocular is capable of geotagged video recording and live video transmission, enabling immediate streaming of encrypted thermal footage. Whether it's a high-stakes pursuit, evidence recovery, or a search and rescue mission, the Scion PTM166 ensures seamless communication with the command center via a wireless network.

Experience a smooth viewing experience with a high refresh rate of 60 Hz, capturing minute details from a distance while maintaining peripheral awareness. The picture-in-picture zoom feature enhances the functionality, providing constant thermal supervision of suspects, team members, and standbys.

Pairing the Scion PTM166 with FLIR's innovative TruWITNESS platform offers public safety agencies enhanced situational awareness and real-time centralized information. The user-friendly interface of this reliable thermal imaging monocular includes onboard recording, picture-in-picture zoom, and intuitive controls, all packed into a rugged thermal optic.

The Scion PTM166 stands out with its superior thermal detection capabilities. The advanced image processing of FLIR's Boson thermal core, combined with a 60 Hz image refresh rate, ensures smooth, unwavering vision in challenging environments. This durable and reliable device is the perfect tool for professionals seeking high-resolution thermal imaging.

FLIR Scion PTM Features

  • Live Encrpted Video Streaming
  • Rich User Interface
  • Superior Thermal Detection

Key Features

  • Experience superior thermal imaging with the FLIR Scion PTM166's advanced 640x512 detector.
  • Capture clear images and videos with the integrated video recording feature on this monocular.
  • Enjoy extended scouting with a 4.5-hour battery life, perfect for nighttime explorations.
  • Quickly identify heat signatures with multiple temperature imaging modes like White Hot & Black Hot.
  • The .7x magnification and wide field of view helps you navigate terrain and track wildlife.
  • Durable build quality ensures reliable thermal performance in demanding outdoor conditions.

What's in the box:

  • Scion PTM166 60Hz 13.8mm Thermal Monocular (Black)
  • FLIR 2 Year Limited Warranty
