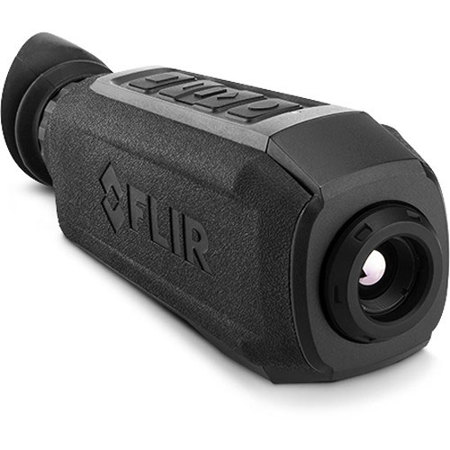

FLIR Scion PTM336 2.6x 25mm Lens Thermal Imaging Monocular, 60Hzk Refresh Rate

SKU: FLPTM336

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?FREDERICK L : Big saleTUAN N : Great deal

Reviews about this item

Review Summary

FLIR Scion PTM Specifications

System Overview

System Overview

Jump to...
  • Color

    Black

  • Resolution

    320 x 240

  • Eye Relief

    16mm

  • Internal Memory

    2 GB Internal Storage / Optional microSD Card (up to 128 GB)

  • Lens System

    25mm

  • Optical Magnification

    2.6x

  • Display Focus

    Manual

  • Core Technology

    BOSON 12 microm Vox Microbolometer

Connections & Communications

Jump to...
  • Bluetooth

    BLE 4.1+

  • Geo Positioning [GPS]

    Yes

  • Video Recording

    Yes

  • WiFi

    Video Streaming, File Transfer

  • TruWITNESS Integration

    Yes

Imaging & Optical

Jump to...
  • Field of View

    9 Degree x 6.5 Degree

  • Focus

    Manual

  • Refresh Rate

    60 Hz

  • Auto Power Off

    Yes

  • Battery Life

    Up to 4.5 hours at 20 Degree C

  • Battery Type

    6x CR123A 3V Lithium Battery

Presentation

Jump to...
  • Display

    Quad-VGA (1280x960) High definition display

  • Image Capture

    Yes

  • User Interface

    USB-C, Power In, Video Out, Video and Image File Transfer

  • Temperature Imaging Modes

    White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, Lava

  • Viewing Modes

    Scouting, Picture-in-Picture

  • Picture While Recording

    Yes

  • Real Time Clock

    Yes

  • Date/Time Stamp

    Yes

  • Magnetic Compass

    Yes

  • Accelerometer

    Yes

Physical

Jump to...
  • Mounting

    1/4-20 Tripod Mount

  • Size

    9.4 x 3 x 2.4" (239 x 76.8 x 60.5mm)

  • Weight

    Without Batteries: 1 lb (452g)
    With Batteries: 1.26 lb (572g)

  • UPC Code

    849815010176

About FLIR Scion PTM

Built to equip law enforcement professionals with superior thermal surveillance, the FLIR Scion PTM packs high-performance thermal imaging and FLIR TruWITNESS compatibility into a rugged, IP67-rated handheld monocular. Capable of geotagged video recording and live video transmission, the Scion PTM can instantly stream encrypted thermal footage of any pursuit, evidence recovery, or search and rescue effort to the command center via wireless network.

A smooth 60 Hz refresh rate and picture-in-picture zoom capture minute details from a distance and maintain peripheral awareness for constant thermal supervision of suspects, team members, and standbys.

Live Encrypted Video Streaming
Pairing Scion PTM with FLIR's innovative TruWITNESS platform provides public safety agencies with enhanced situational awareness and real-time centralized information.

Rich User Interface
The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic

Superior Thermal Detection
The advanced image processing of FLIR's Boson thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.

FLIR Scion PTM Features

  • Live Encrpted Video Streaming
  • Rich User Interface
  • Superior Thermal Detection

Key Features

  • Live Encrpted Video Streaming
  • Rich User Interface
  • Superior Thermal Detection

What's in the box:

  • Scion PTM336 60Hz 25mm Thermal Monocular (Black)
  • FLIR 2 Year Limited Warranty
