FLIR ThermoSight Pro PTS536 Specifications

  • Detector Type

    320 x 256 VOx Microbolometer

  • Video Refresh Rate

    60Hz

  • Start Up

    < 6 seconds

  • Image Processing

    FLIR Proprietary Digital Detail Enhancement

  • Lens system

    50mm; F/1.0

  • Optical Zoom

    4-16x

  • Field of View (HxV)

    4.5 x 3.5 deg.

  • Digital Zoom

    2x, 4x

  • Diopter Adjustment Range

    5 to +5 dpt

  • Focusing Range

    10m (32.81') to infinity

  • Eye Relief

    45mm

  • Display

    Quad-VGA (1280 x 960) FLCOS

  • Video Output

    Digital Video

  • Temperature Imaging Modes

    Outdoor Alert, Artic, Sepia, Ironbow HC, Rainbow, Black Hot, White Hot (Image Palettes)

  • Reticle Type

    Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair and "No Reticle"

  • Reticle Color

    Black, White, Red, Cyan and High Visibility

  • Boresight Adjustment Type

    Digitally Controlled

  • Operation Switch

    On/ Off/ Standby Mode

  • Control Panel Buttons

    Configures Operational Settings: Display Brightness Control; Image Palette Control; Digital Zoom Control; Reticle Color Control; Reticle Pattern Control; Boresighting Adjustment; On-Screen Menu Navigation

  • Diopter Adjustment Ring

    Adjusts the Eyepiece Diopter

  • USB-C Connector

    Digital video out; Image and video file access

  • Spectral Response

    LWIR: Long-wave infrared

  • Pitch

    12 Mum

  • Windage/Elevation Adjustment

    Yes, digital

  • Internal Storage

    Up to 1000 images
    Up to 2.5 hours of video recording

  • Weatherproofing

    Waterproof, rated IP67

  • Battery Type

    Two CR123A 3V Lithium batteries

  • Battery Life

    Up to 4 hours at 20 deg. C (Operating)

  • External Power

    Through USB-C port (5VDC)

  • Operating Temperature Range

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Storage Temperature Range

    -40 to 60 deg. C (-40 to 140 deg. F)

  • Weapon Mount Type

    Picatinny, MIL-STD 1913 and Weaver Rails

  • Height of the Scope Axis above Rail

    42mm (1.65")

  • Dimensions

    259 x 68 x 84mm (10.20 x 2.68 x 3.31")

  • Weight

    0.81kg (1.79 lbs)

About FLIR ThermoSight Pro PTS536

The FLIR ThermoSight Pro Series sets a new standard in thermal image quality. With multiple features packed into a compact housing, the ThermoSight Pro Series delivers brilliant, clean thermal imagery in low contrast daylight scenes, as well as in total darkness. Equipped with shot activated video recording and FLIR's patent pending High Visibility Technology (HVT) reticle, the FLIR ThermoSight Pro Series is the perfect addition to any hunting or security weapon platform. It is powered by the new FLIR Boson core, featuring a 12 Mum pixel pitch sensor, industry leading on-chip video processing. The uncompressed video signal is paired with a high definition display for better detection and classification in the field.

Exceptional Vision
• Advanced image processing eliminates the guesswork
• Completely digital for better detection, classification and recovery, day or night
• Built using the new FLIR Boson thermal core
• Bright, high definition FLCOS display for absolute clarity

Compact, Powerful
• Perfect balance of size and performance
• Powerful and compact hardware is protected by a robust body
• Featuring a 12 Mum pixel pitch and industry leading on-chip video processing
• Outstanding thermal image quality in total darkness or through smoke, haze, fog, rain

Superior Value
• Packed with features for a versatile and customizable viewing experience
• On-board video recording, image capture and storage. Up to 2.5 hours of recording time or up to 1,000 pictures
• Multiple color palettes
• Digital compass/inclinometer for precise range and target orientation

What's in the box:

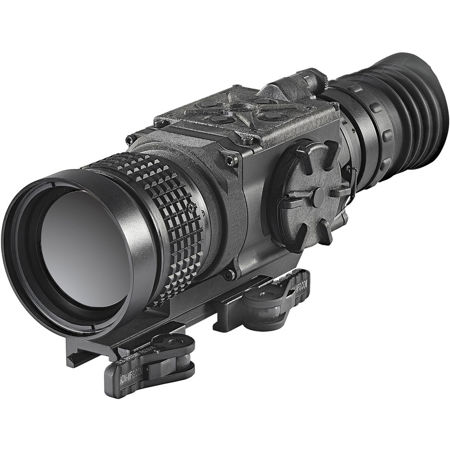

  • FLIR ThermoSight Pro Series PTS536 4-16x50 Thermal Weapon Sight
  • 2x CR123A Batteries
  • 2x Battery Cassettes
  • 3' USB Type-C Cable
  • Hard Carrying Case
  • Lens Cloth
  • Lens Cover
  • Quick Start Guide
  • FLIR 2 Year Limited Warranty
