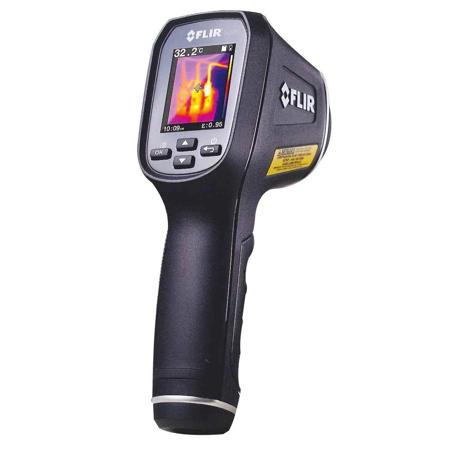

FLIR TG165 24:1 Spot Thermal Camera
See all FLIR items

FLIR TG165 24:1 Spot Thermal Camera

SKU: FLTG165
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2018-04-12T08:26:17

Rated 5 out of 5

thermal camera

very good tool, must have for any home improvement tasks

MARIUS C.

FLIR TG165 Specifications

  • Field of view (FOV)

    50 deg. x 38.6 deg.

  • IR resolution

    80 x 60 pixels

  • Thermal sensitivity/NETD

    < 150 mK

  • Minimum focus distance)

    0.1m (3.93")

  • Image frequency

    9Hz

  • Focus

    Focus free

  • Detector type

    Focal plane array (FPA), uncooled microbolometer

  • Spectral range

    8-14Mu m

  • Display

    2.0" TFT LCD

  • Object temperature range

    -25 to 380 deg. C (-13 to 716 deg. F)

  • Accuracy

    +/-1.5% or 1.5 deg.C (2.7 deg.F)

  • Distance to spot ratio

    24:1

  • Minimum measurement distance

    26cm (10.23")

  • Center spot

    Yes

  • Color palettes

    Hot Iron, Rainbow, Grayscale

  • Memory type

    Micro SD card

  • Image storage capacity

    75,000 pictures with included 8GB Micro SD card

  • Memory expansion

    32GB SD card maximum

  • Saved image format

    Bitmap (BMP) image with temperature and emissivity

  • Laser

    Dual diverging lasers indicate the temperature measurement area, activated by pulling the trigger

  • Drop Test

    Designed for 2 Meter, 6.5'

  • Certifications

    CE / CB / FCC / FDA

  • Battery type

    Rechargeable Li ion battery

  • Battery voltage

    3.7 V

  • Battery operating time

    >5 hours of continuous scanning with lasers

  • Battery charge life

    30 days minimum

  • Charging system

    Battery is charged inside the camera

  • Charging time

    4 hours to 90%, 6 hours to 100%

  • Power management

    Adjustable; OFF, 1 min., 2 min., 5 min., 10 min.

  • Operating temperature range

    -10 to 45 deg. C (14 to 113 deg. F)

  • Storage temperature range

    -30 to 55deg. C (-22 to 131 deg. F)

  • Humidity (operating and storage)

    0-90% RH 0 to 37 deg. C (32 to 99 deg. F), 0-65% RH 37 to 45 deg. C (99 to 113 deg. F), 0-45% RH 45 to 55 deg. C (113 to 131 deg. F)

  • Tripod mounting

    1/4"-20 on handle bottom

  • Dimensions (LxWxH)

    Camera: 186 x 55 x 94mm (7.32 x 2.17 x 3.70")

  • Weight

    Camera: 0.312kg (0.69 lbs) (Including battery)

  • UPC Code

    632581629020

About FLIR TG165

FEATURED REVIEWS

thermal camera

By MARIUS C.

very good tool, must have for any home improvement tasks

The FLIR TG165 Spot Thermal Cameras bridge the gap between single spot infrared thermometers and FLIR's legendary thermal cameras. Equipped with FLIR's exclusive Lepton micro thermal sensor, these cameras let you see the heat so you know exactly where to target the measurement spot. Easily find unseen hot and cold spots for instant troubleshooting and store images and data to show customers and include in reports.

See the Big Picture
The TG165 is your perfect tool for building diagnostics! The wide 50-degree field of view makes it easy to frame an entire wall in a single image.

Grab AND GO Simplicity
The TG165 is Intuitive to operate - no special training required. Easily save images and data for documentation and download your images fast over USB or via removable micro SD.

Rugged AND Reliable
Designed for the harshest environments, the TG165 is durable enough to withstand a 2- meter drop for your toughest jobs.

Thermal Imaging
FLIR's Innovative Lepton IR Imaging Engine.

Safety
24:1 spot size ratio for safer distance measuring.

Easy operation
Intuitive to operate with no special training required.

Save Images
Easily save images and data for documentation.

Rugged
Built to withstand a 2 meter drop.

Warranty
Covered by FLIR's exclusive 2-10 warranty.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • FLIR TG165 24:1 Spot Thermal Camera
  • Wrist Lanyard
  • 8 GB MicroSD Card
  • Printed Documentation
  • Power Supply with Separate USB Cable
  • FLIR 2 Year Warranty for Spot Thermal Camera
  • FLIR 10 Year Warranty for Thermal Imaging Detector
