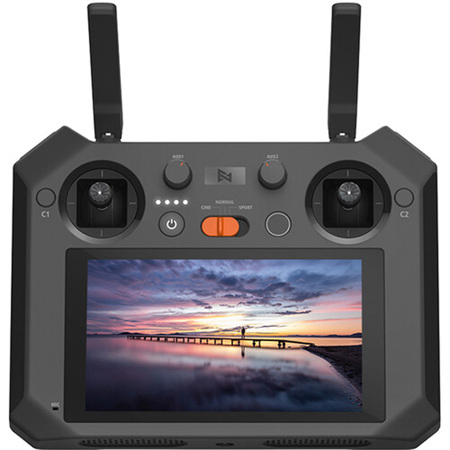

Fimi TX10 5.5" Full HD Smart Remote Controller

RokLink 10km Low-Latency HD Digital and Graphical Transmission System
As a third-generation HD digital transmission system, FIMI TX10 adopts the communication technology of fast, self-adaptive frequency hopping and dynamic modulation and coding. FIMI TX10 has better anti-interference performance. It achieves 1080p full-HD video and data transmission with low latency at a maximum distance of 10km.

5.5-inch, 1000 Nits, 1080p High-Brightness Screen
The built-in 5.5-inch screen with high brightness is designed for a resolution of 1080 pixels and 1000 Nits. It can easily be operated under strong sunlight, making outdoor operations fun and full of possibilities.

• 5.5-inch
• 1080P
• 1000Nits

Qualcomm Octa-Core CPU, Android 9.0, Open-Source Software and Hardware Architecture
Optimized by Android 9.0 and Qualcomm octa-core processor, FIMI TX10 brings more functions to the customized FIMI Navi app, ensuring smoother operation when flying. With its industry-level RX10 receiver, FIMI TX10 allows for more compatibility with a variety of open-source Mavlink protocol-based apps such as QGroundControl and AndrioPilot, as well as open-source hardware including PX4, APM, Ardupilot, iNav, and other flight control devices.

4G and Wi-Fi
FIMI TX10 has a built-in 4G cellular module with tri-mode access, supporting a nano SIM card and 2.4G and 5.8G dual-band Wi-Fi network for faster and more stable transmission. The built-in GPS offers more compatibility with location-enabled apps.

Output Port
FIMI TX10 supports HDMI for the real-time transmission of screen images to third-party displays such as computer screens and monitors. It also supports a 128G SD card. Equipped with a 3.5mm headset audio jack, FIMI TX10 realizes functions such as remote shouting, using the megaphone module and microphone (optional) to transmit voice for a distance of up to 10 kilometers.

Ergonomic Design
• Using a silicone texture, the FIMI TX10 guarantees a more secure and comfortable grip
• 1/4 thread hole on the bottom for accessories and tripod
• The removable joystick makes it easy to store and save space
• More customizable buttons, rollers, and switch make it easy to operate

Charging and Battery life
FIMI TX10 supports the PD QC3.0 protocol for a charging power up to 25 watts. The built-in 7.2V 4800mah lithium battery allows for a 2.5-hour charging time. The battery life is up to four hours (test data are based on the maximum screen brightness). The battery compartment on the back of the controller can accommodate an extra 7.2V 4800mah lithium battery for a longer battery life.

Multiple Controllers
Multiple FIMI TX10 controllers can simultaneously receive image transmission from a single drone, making teamwork more efficient than ever before.
