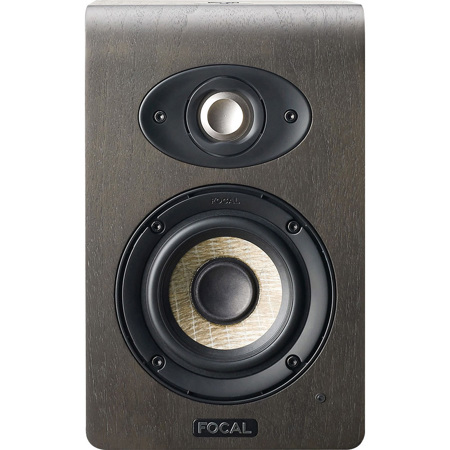

Focal Shape 40 4" Active 2-Way Studio Monitor Speaker, Single

SKU: FOSH40

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the intended use of the Shape 40 4" Active 2-Way Studio Monitor Speaker?

The Shape 40 4" Active 2-Way Studio Monitor Speaker is intended for use as a studio monitor speaker for music production and audio recording.

Can the Shape 40 4" Active 2-Way Studio Monitor Speaker be mounted on a wall?

Yes, the Shape 40 4" Active 2-Way Studio Monitor Speaker has mounting mechanisms on the back and underneath, allowing it to be mounted on a wall, ceiling, table stand, or microphone stand.

What type of cone technology does the Shape 40 4" Active 2-Way Studio Monitor Speaker use?

The Shape 40 4" Active 2-Way Studio Monitor Speaker uses flax sandwich cone technology, which provides controlled and articulated bass, as well as natural and detailed mid-range registers.

What is the benefit of the Neutral Inductance Circuit (N.I.C) technology in the Shape 40 4" Active 2-Way Studio Monitor Speaker?

The Neutral Inductance Circuit (N.I.C) technology in the Shape 40 4" Active 2-Way Studio Monitor Speaker provides an extremely stable magnetic circuit, which helps to reduce distortions.

Where is the Shape 40 4" Active 2-Way Studio Monitor Speaker made?

The Shape 40 4" Active 2-Way Studio Monitor Speaker is made in France, integrating five innovations to maximize acoustic transparency.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Focal Shape 40 Specifications

  • Frequency response

    60Hz - 35kHz (+/-3dB)

  • Maximum SPL (musical signal)

    102dB SPL (peak at 1m)

  • Inputs/Impedance Type

    XLR: balanced 10kOhms

  • Connectors

    RCA: unbalanced 10kOhms with sensitivity compensation

  • Midrange and low frequency amplifier

    25W, class AB

  • High frequency amplifier

    25W, class AB

  • Automatic standby

    Standby on: After approximately 30 minutes with no signal
    Standby off: Signal detection > 3 mV

  • Voltages

    220-240V (T500mAL / 250V fuse) or 100-120V (T1.6AL / 250V fuse)

  • Connection

    IEC plug and detachable power cord

  • High pass filter

    Adjustable Full range / 80Hz

  • Settings

    Bass (0 - 250Hz): Adjustable, +/-6dB
    Midrange/bass (160Hz, Q=1): Adjustable, +/-3dB
    High (4.5 - 35kHz): Adjustable, +/-3dB
    Power On/Power Of: On/off switch on rear panel

  • Standby consumption

    < 0.5W

  • Displays and controls

    LED for power on/off and standby

  • Woofer

    4" (10.16cm)

  • Tweeter

    1" (2.54cm) 'M' profile, Aluminum-Magnesium

  • Construction

    0.5" (1.27cm) MDF

  • Finish

    Vinyl, real walnut and black painting

  • Dimensions (HxWxD)

    With four rubber feet: 10.1 x 6.3 x 7.9" (25.65 x 16.00 x 20.07cm)

  • Weight

    16.1 lbs (7.30kg)

  • UPC Code

    3544055801528

2 Accessories for Focal Shape 40 4" Active 2-Way Studio Monitor Speaker, Single

  • All Accessories (2)
  • Speaker Accessories (1)
  • Monitoring Accessories (1)

About Focal Shape 40

You can experience superior sound quality with the Shape 40 4" Active 2-Way Studio Monitor Speaker, the most compact model in the Focal Professional line. This stylish and durable speaker is the ideal solution for nearfield monitoring, delivering astonishingly extended low-end frequency response even when used from a distance of 23" (60cm).

Designed for small spaces, the Shape 40 is perfect for rooms less than 107ft2 (10m2) or installations where compactness is paramount. It features a tweeter with very low directivity, allowing for a flexible listening position. The speaker can be mounted on a table stand, a microphone stand, the ceiling, or a wall, thanks to the mounting mechanisms present on the back and underneath the speaker (mounting accessories not supplied).

The Shape 40 is designed without a port but includes a double passive radiator, enabling it to be placed near a wall. The flax sandwich cone ensures controlled and articulated bass, natural and detailed lower mid-range, and upper mid-range registers.

This high-quality, professional speaker offers numerous settings for optimal integration and accurate control, even in the very high end. All components are made in France and integrate five innovations to maximize acoustic transparency. These innovations, combined with an ingenious design, provide remarkable acoustic transparency and an extremely precise stereo image.

The bass register is articulated and controlled, while the lower mid-range and mid-range benefit from extreme neutrality, making equalization of these essential registers much easier. The new tweeter efficiently reveals any hissing and is very precise in the very high end.

The Shape 40 incorporates recent flax sandwich cone technology, which offers significant improvements in terms of weight, rigidity, and damping. It also features Neutral Inductance Circuit (N.I.C) technology for an extremely stable magnetic circuit, reducing distortions. The Tuned Mass Damper (TMD) Surround technology ensures a linear frequency response curve between 1 and 2KHz, significantly reducing distortion in this range and contributing to the great precision of the overall stereo image.

In summary, the Shape 40 4" Active 2-Way Studio Monitor Speaker is a reliable, high-quality audio equipment choice, designed to meet the needs of nearfield monitoring and deliver a superior audio experience.

Focal Shape 40 Features

  • Innovative and affordable nearfield reference monitor with onboard amplification
  • Perfect for small studios, editing suites, music composition workstations, and mixing studios
  • Integrated TMD surrounds and dual passive radiators increase low-frequency response and harmonic stability
  • Radiators provide flexible low-frequency tuning and depth that hold up even when positioned near walls
  • 4" glass-/flax-/glass-fiber speaker cone delivers extreme mid- and low-frequency definition with minimal distortion
  • Innovative M-shaped aluminum-magnesium inverted dome tweeter offers amazing neutrality below 6kHz
  • Redefined speaker housing offers even horizontal and vertical dispersion with decreased directionality for broad sweet spot
  • Extremely stable Neutral Inductance Circuit (N.I.C.) offers an optimized crossover and reduced harmonic distortion/intermodulation between speakers
  • Precision amplification includes high- and low-frequency shelving and a 160Hz crossover slope
  • Includes dedicated highpass filter to accommodate specific subwoofer arrangements

Key Features

  • Compact 4" Active 2-Way Studio Monitor Speaker for nearfield monitoring
  • Features low-directivity tweeter for flexible listening position
  • Double passive radiator design allows placement near a wall
  • Flax sandwich cone technology for controlled bass and detailed mid-range
  • Made in France with five integrated innovations for maximum acoustic transparency

What's in the box:

  • Focal Shape 40 4 " Active 2-Way Studio Monitor Speaker
  • Power Supply Cord
  • 4x Adjustable Spikes
  • Protective Grille for Tweeter
  • Protective Grille for Woofer
  • Focal 2 Year Warranty
