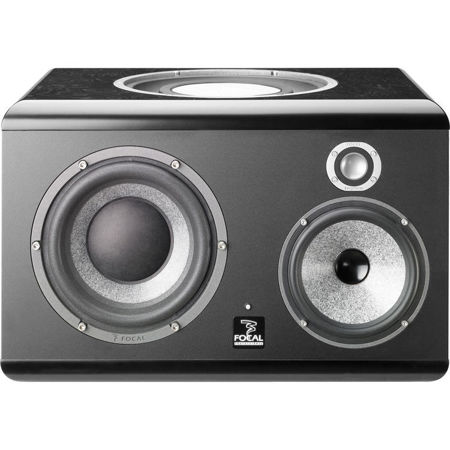

Focal SM9 11" 600W 3-Way Active Studio Monitor Speaker, Left Channel

SKU: FOSM9L

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Focal SM9L Specifications

  • Low Frequency Driver

    11" (27.94cm) Focal "W" Composite Sandwich Cone Piston, Extra-Wide Inverted Surround Radiator

  • Mid Frequency Driver

    8" (20.32cm) Focal "W" Composite Sandwich Cone Driver
    6.5" (16.51cm) Focal "W" Composite Sandwich Cone Driver

  • High Frequency Driver

    1" (2.54cm) Pure Beryllium Inverted Dome Tweeter

  • Frequency Response

    3-Way: 30Hz - 40kHz +/- 3dB
    2-Way: 90Hz - 20kHz +/- 3dB

  • Amplifier

    LF: 400W Class-AB
    MF: 100W Class-AB
    HF: 100W Class-AB

  • Max Input Sound Level (SPL)

    3-Way: 116dB
    2-Way: 106dB

  • Connectors

    1x AC Power Input
    1x Electronically-Balanced XLR Input

  • Input Sensitivity

    +4dBu or -10dBV, Adjustable

  • Input Impedance

    10 kOhms

  • Controls

    1x Input Sensitivity Selector
    1x High-Pass Crossover Control
    1x LF Shelving Control
    1x HF Shelving Control
    1x Low EQ Control
    1x Low-Mid EQ Control
    1x Mid EQ Control
    1x Standby/On Switch
    1x Direct Switch
    1x Focus Switch

  • Indicators

    LEDs for Power, Clip, and Default

  • Cabinet

    0.88" (2.24cm) and 1.2" (3.05cm) Internally-Braced Panels
    Natural Black Veneering on Top and Bottom Panels, Black Body

  • Power

    115V, 6.3A
    230V, 3.15A

  • Finish

    Black natural veneering top and bottom panels, black body

  • Dimensions (H x W x D)

    12.8 x 19.6 x 15.6" (32.51 x 49.78 x 39.62cm)

  • Weight

    77lbs (34.93kg)

  • UPC Code

    3544055801108

About Focal SM9L

This monitoring loudspeaker was born from a simple idea: the monitor should disappear in favor of the audio signal. Focal created the SM9 which fully respects the original dynamics. It embodies the philosophy: 'Listen to your music, not to your speakers!'.

This monitoring speaker establishes itself as a reference thanks to the precision of the stereo image, its capacity to reproduce each of the micro details of the audio signal, as well as unconditional respect of the original dynamics. One of the major SM9 innovations lies in the fact of offering 2 monitoring speakers in only one and unique cabinet. The SM9 is thus composed of 2 monitors: a 3 way monitor and a 2 way monitor.

Exclusive technology Beryllium
The SM9 monitoring loudspeaker is packed with Focal Professional technologies and innovations. The pure Beryllium inverted dome tweeter offers a perfectly linear frequency response and extremely precise and detailed treble. The 6.5-inch 'W' composite sandwich cone woofer offers perfect neutrality thanks to the optimized control of rigidity, lightness and damping. The 8-inch speaker driver, combined with a 'W'-shaped passive radiator, enables the perfectly precise reproduction of the deep bass register.

Sound with great precision, Faithful Monitoring Loudspeakers
Another key point: the SM9 is equipped with a class AB amplifier (100 + 100 + 400W RMS) with very low harmonic distortion, which along with the high frequency response curve, ensure great precision and faithful dynamics of low-level audio signals.

Two monitors in one!
One of the major SM9 innovations lies in the fact of offering 2 monitoring speakers in only one and unique cabinet. The SM9 is thus composed of 2 monitors:

• A 3-way monitor (Beryllium tweeter + 6.5" "W" woofer + 8" "W" subwoofer + 11" passive radiator). This monitor offers a frequency response from 30Hz to 40kHz for total control of the audio signal permitting extremely precise work.
• A 2-way monitor (Beryllium tweeter + 6.5" "W" woofer). This monitor offers a frequency response from 90Hz to 40kHz, permitting to check the mix transfer quality on systems with limited frequency response in the bass frequencies for example TV sets, computers, cars, iPod docks or any multimedia system. This monitor also permits to check the midrange register, very hard to equalize and balance in terms of sound level compared to the other information contained in the audio signal. The activation of this monitor is made by setting off the FOCUS mode on the side panel.

Exclusive acoustic technologies

Pure Beryllium inverted dome tweeter
The inverted dome tweeter is a hallmark of Focal. Introduced more than twenty years ago, this tweeter produces a high output, but without requiring high energy input and without increasing directivity.

The introduction of the pure Beryllium dome, capable of covering 5 full octaves from 1,000 to 40,000Hz constitutes a new decisive advance regarding new audio formats. This tweeter capacity to reproduce high frequencies with unmatched speed and transparency. This tweeter allows an unprecedented price/performance ratio. To finish with, the new TB872 tweeter delivers outstanding dynamics thanks to its amazing magnet field (2.1 teslas).

The "W" cone
Focal has been developing the technologies of composite sandwich cones for more than 15 years. The W process (Glass/Foam/Glass) provides a true optimization of the frequency response by fine tuning of mass, rigidity and damping parameters. The balance between these 3 fundamental and often contradictory parameters is at the basis of the outstanding sound neutrality of their speakers.

Passive radiator
In order to reproduce the lowest frequency range within a very small volume without any air flow noises, the SM9 is equipped with a no compromise, custom designed "W" passive radiator.

High performance tailor-made amplification
The SM9 uses low distortion class AB power stages for low (400W), mid (100W) and high frequency (100W) channels, entirely respecting the dynamics of the low level audio signal and ensuring total transparency.

What's in the box:

  • Focal SM9 11" 600W 3-Way Active Studio Monitor Speaker
  • Power Cord
  • 3x Protection Grilles
  • Plastic Bag
  • Focal 2 Year Warranty
