FoxFury Rugo R1S Drone Light System for Yuneec Typhoon H and H520 Drones

SKU: FOX700YHT MFR: 700-YHT
Earn VIP Reward Points

Key Features

  • Illuminate your drone flights with 70-700 lumens, perfect for Yuneec Typhoon H and H520 drones.
  • Experience extended flight times with a reliable 1-6.75 hour battery life, ensuring mission completion.
  • Enjoy superior durability with IPX7 waterproofing, ideal for diverse weather conditions and drone operations.
  • Benefit from quick-swap power packs, enhancing portability and keeping your drone ready for action.
  • Achieve versatile lighting with Tri-Lens Technology, offering spot, area, and flood beam options for any scenario.
  • Count on robust impact resistance up to 22.9 feet, protecting your drone light system during demanding use.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FoxFury Rugo R1S Specifications

  • Compatibility

    Yuneec Typhoon H and H520 Drones

  • Lumens

    70 - 700 Lumens

  • Battery Life

    1 - 6.75 Hours

  • Power Source

    Rechargeable Lithium-Ion Battery System (Quick Swap Power Pack with Strobe)

  • Modes for Quick Swap Power Pack

    With Strobe (Orange button): 4 (Low, Medium, High, Strobe)

  • Certifications

    CE-EMC, CE-LVD

  • Ingress Protection

    IPX7

  • Fire Resistant

    Meets Requirements of NFPA 1971-8.6 (2013)

  • Waterproof

    60' for Rugo with Quick Swap Power Pack with Strobe

  • Impact Resistant

    22.9' (7m)

  • Color Temperature

    5700K, 70 CRI

  • LED Color

    White

  • Materials

    Black Nylon 66 Power Pack, Orange switch cover, Black aluminum housing, Clear Tri-Lens

  • Max Beam Distance

    Up to 100' (30m)

  • Adapter Input

    AC 100-240V, 50/60 Hz

  • Recharge Time

    2.5 hours

  • Beam Angle

    25 Degree Spot, 55 Degree Area, 120 Degree Flood

  • Features

    Rechargeable Quick Swap Power Pack
    Tri-Lens Technology

  • Dimensions

    Rugo: 2.9 x 1.0 x 2.0" (74 x 25 x 50mm)

  • Weight

    Total: 13.2 oz (374g)
    Rugo: Each Rugo is 5.6 oz (158g) (With Power Pack and Light Head)
    Quick Swap Power Pack: 2.6 oz (73g)
    Mount: 1 oz (28g)

About FoxFury Rugo R1S

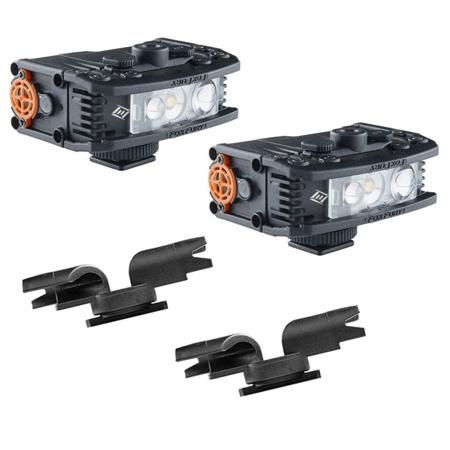

The Rugo R1S Drone Light System is designed for use with Yuneec Typhoon H and H520 Drones. Each system comes with (2) Rugo R1S lights and a set of drone mounts. Each light has a Quick Swap Power Pack with Strobe that meets FAA regulations for UAV night flight and anti-collision lighting.

The R1S Drone Light Systems are best for search, inspection, mapping, and assessments. The R1S puts out up to 700 lumens and has an operational beam distance of up to 100 ft (30 m).

Note: Using two Rugos along with the included set of mounts is recommended in order to maintain the drone's center of gravity. Please make sure you follow all local and FAA requirements for night flight and have waivers filed if necessary.

Rechargeable Quick Swap Power Pack with Strobe
The Rugo R1S have a rechargeable Quick Swap Power Pack with Strobe. The strobe mode meets FAA regulations for UAV night flights and anti-collision lighting. The Power Pack provides 1 - 6 hours of light on a single charge and fully recharges via a USB adapter in 2.5 hours. Power Packs can be swapped out in seconds with no tools. Additional Power Packs are available as separate accessories to extend usage time.

Tri-Lens Technology
The Rugo R1S have three interchangeable lens settings, allowing the user to adapt to different uses:

• Spot = 25 Degree Best for distance. R1S has maximum operational distance of 100 ft (30 m)
• Area = 55 Degree Best for mid-range. R1S have maximum operational distance of 30 ft (9 m)
• Flood = 120 Degree Best for close-up. R1S have maximum operational distance of 10 ft (3 m)

Durability
All Rugo lights have a rugged built-to-last design. They are impact resistant and fully submersible up to 10 ft (3 m). They also meets NFPA fire resistant requirements and can be decontaminated after use. The Rugo lights are backed by a Limited Lifetime Warranty.

FoxFury Rugo R1S Features

  • Rechargeable Quick Swap Power Pack with Strobe
  • Tri-Lens Technology
  • Durability

Key Features

  • Illuminate your drone flights with 70-700 lumens, perfect for Yuneec Typhoon H and H520 drones.
  • Experience extended flight times with a reliable 1-6.75 hour battery life, ensuring mission completion.
  • Enjoy superior durability with IPX7 waterproofing, ideal for diverse weather conditions and drone operations.
  • Benefit from quick-swap power packs, enhancing portability and keeping your drone ready for action.
  • Achieve versatile lighting with Tri-Lens Technology, offering spot, area, and flood beam options for any scenario.
  • Count on robust impact resistance up to 22.9 feet, protecting your drone light system during demanding use.

What's in the box:

  • 2x Rugo R1S Lights
  • 2x 1/4 "-20 and Cold-Shoe Mounts
  • 2x Standard Mount with 4x Knobs
  • USB Cable and Wall Adapter
  • Rugo Bag
  • Set of Mounts
  • FoxFury Lifetime Limited Warranty
