Freefly ALTA 6 Specifications

Drone: Performance

Drone: Performance

Jump to...
  • Maximum Gross Takeoff Weight

    29.9 lbs (13.56kg)

  • Maximum Useful Load

    21 lbs (9.53kg)

  • Maximum Payload

    15 lbs (6.80kg)

  • Specific Power

    Typical: 145 W/kg

  • Thrust Ratio

    At Max Takeoff Weight: 2.0:1

Drone: Frame

Jump to...
  • Payload Mounting

    Mounting Locations: Bottom and top mount
    Mounting System: Freefly Toad In The Hole Quick Release

  • Isolation System

    Vibration Isolation System: Silicone O-rings

    Densities by Color
    Soft / Light Payloads: Red O-rings
    Medium / Mid Payloads: Teal O-rings
    Stiff / Heavy Payloads: Black O-rings

  • Lighting and Indication

    Orientation Lights: RGB LED's
    Orientation Light Locations: Outboard on boom ends
    Orientation Light Color: User definable
    Status Light: Rear-facing red/white LED
    Accessory Lighting Port: 12 VDC
    Accessory Lighting Port Location: Outboard on boom ends

Drone: Motors

Jump to...
  • Type

    6x Direct drive 3-phase PMAC outrunner

  • Max Continuous Power Output

    350W

  • Max Instantaneous Peak Power

    950W

  • ESC

    Freefly Silent-Drive Sine Wave ESC

Drone: Flight Controller

Jump to...
  • Connectivity

    Inputs: Spektrum, S.Bus, PPM, FPV SD video
    Outputs: PWM, I2C, CAN, FPV SD video with OSD

  • Flight Modes

    Manual
    Height Hold
    Climb Rate Control (Vario)
    Position Hold
    Ground Speed Control
    Return-To-Home
    Auto-land

  • Installed Transceivers

    Wi-Fi

  • Data Logging Rate

    25 Hz

Drone: Receiver

Jump to...
  • Supported Radios

    Futaba S.Bus & S.Bus 2
    DSMX, DSM2 (Spektrum/JR)
    PPM, PPM Invert, PPM Graupner

Drone: Telemetry

Jump to...
  • Supported Telemetry Systems

    Futaba with built-in voltage sensor port

  • First-Person View OSD Telemetry

    User configurable

Drone: FPV and Monitoring

Jump to...
  • Supported First-Person View Systems

    Skyzone
    BOSCAM
    Immersion RC
    Fatshark

Drone: Propellers

Jump to...
  • Type

    6x 18x6 folding

  • Configuration

    3x CW
    3x CCW

  • Material

    Carbon fiber with balsa core

Drone: Flight Battery

Jump to...
  • Voltage

    6S / 22.2 VDC

  • Maximum Battery Size

    9.4 x 7.1 x 3.1" (23.88 x 18.03 x 7.87cm)

  • Maximum Battery Quantity

    2 x in parallel

  • Connector

    2 x EC5 (parallel)

Radio Controller: Transmitter

Jump to...
  • Modulation

    FASSTest, FASST, S-FHSS

  • Band

    2.4GHz

  • Number of Channels

    Proportional: 12
    Switched: 2

Radio Controller: Computer

Jump to...
  • Computer Radio

    Yes

  • Model Memory

    30

  • Naming

    User Naming: 10-character
    Model Naming: 10-character

  • Programming

    Airplane, helicopter, glider

  • Modes

    Modes 2

  • Expansion Storage

    SD/SDHC memory cards from 32MB to 32 GB

Radio Controller: Display

Jump to...
  • Type

    Back-lit LCD

  • Size

    1.8 x 3" (4.57 x 7.62cm)

  • Resolution

    128 x 64

Radio Controller: Battery

Jump to...
  • Type

    6V 1800 mAh NiMH battery pack

Receiver

Jump to...
  • Modulation

    FASSTest 2.4GHz system, S.Bus system

  • Antenna

    Dual antenna diversity

  • Power Requirements

    3.7 to 7.4 VDC battery or regulated output from ESC or other aircraft-based source

General

Jump to...
  • Dimensions

    Unfolded (LxWxH): 39.4 x 45.1 x 8.7" (100.08 x 114.55 x 22.10cm) (base of TITH)
    Folded: 20.9 x 20.3 x 8.7" (53.09 x 51.56 x 22.10cm)
    Receiver: 1 x 1.7 x 0.6" (2.54 x 4.32 x 1.52cm)

  • Weight

    Typical Standard Empty Weight: 9 lbs (4.08kg)
    Receiver: 0.4 oz (11.34g)

  • UPC Code

    635414907777

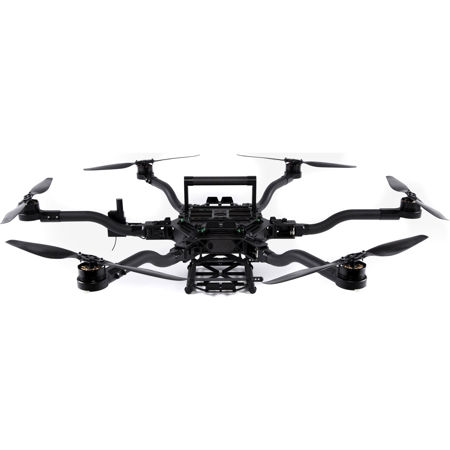

About Freefly ALTA 6

The Freefly ALTA 6 multi-rotor unpacks, ready to shoot, in under five minutes. It is easy to fly, powerful, rigid, adaptable, reliable and is a UAV optimized for up to 15-pound payloads. We can't remove the pressure to get the perfect shot, but with the ALTA 6, you'll enjoy each challenge you meet in aerial cinematography.

Confidently fly RED, ARRI and other professional cameras with our drone, guided by our state-of-the-art SYNAPSE Flight Controller. Capture cinematic aerial shots like never before with the option to mount the MoVI on top.

The ALTA 6 is a Ready-to-Fly system that includes
• ALTA Multi-rotor
• Pelican Case
• Battery Cage
• Landing Gear for Top Mounting Drone
• Freefly ALTA App available for download

The ALTA 6 UAV comes fully assembled and includes all the necessary tools and accessories you will need to mount a MoVI and get it flying. The standard ALTA 6 drone ships with a Toad in the Hole quick release (male adapter), Battery Cage Landing Gear, FPV mount plate, cables to connect your personal receivers and/or FPV system and mechanical tools to disassemble & inspect your UAV.

What's in the box:

  • Freefly ALTA 6 UAV Hexa-Rotor Drone
  • Pelican Case
  • Battery Cage
  • Landing Gear
  • Digital Luggage Scale
  • Futaba 14SGH 14-Channel 2.4GHz Radio Controller
  • R7008SP Receiver
  • HT5F1800B NiMH Battery
  • Battery Charger
  • Li-Fe Spacer
  • Switch Harness
  • Neck Strap
  • Freefly 1 Year Limited Warranty
