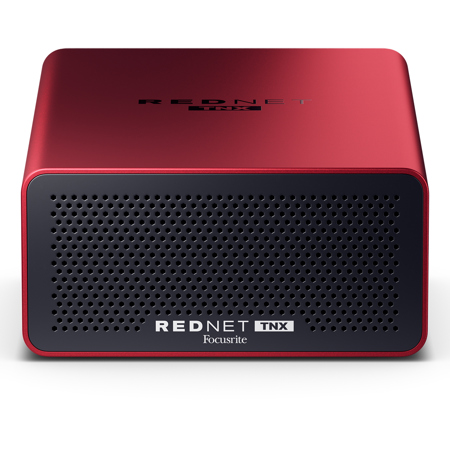

Focusrite RedNet TNX Portable Dante Audio Interface

RedNet TNX is a portable Dante interface that delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz straight out of the box. With Dante Ready, you can expand your system to 256x256 channels at 24-bit/96kHz - all via a single Thunderbolt connection for powerful and versatile audio workflows.

Powerful, flexible audio workflows
Tap into the power of high-channel-count Dante workflows with 128x128 channels at up to 192 kHz with ultra-low latency - all via a single Thunderbolt connection. RedNet TNX brings simplicity and flexibility to large recording, post-production, and broadcast setups.

Room to expand
RedNet TNX offers expandable connectivity with an optional upgrade to 256x256 audio channels at 24bit/96kHz with Dante Ready.

Ready for recording
For commercial recording studios and music production facilities, RedNet TNX delivers performance, flexibility, and scalability, with up to 256x256 channels of uncompressed, high-resolution audio at ultra-low latency.

Effortless Setup
With RedNet TNX, connect to any Windows or Mac system with a Thunderbolt port, and you're set. Network connection is just as straightforward, with an integrated network interface providing network control through a single cable.

Perfect for post
For post-production professionals working in Dolby Atmos, RedNet TNX offers the ability to integrate high-channel-count Dante audio seamlessly with the Dolby Renderer.

Built for broadcast
With support for AES67 and Dante Domain Manager, plus SMPTE ST 2110 compliance, RedNet TNX is perfect for broadcast deployment - and portable enough to use on location.

Flexibility meets reliability
Two Ethernet RJ-45 connections offer both switched and redundant modes, giving flexibility of connectivity as well as the option to have a secondary network in mission-critical situations.

Simple, integrated network control
RedNet TNX works with RedNet Control, which allows control and monitoring of all RedNet devices on your network via a single application.

Integrate within your setup
Each of the two Thunderbolt ports provides 15W of power and allows you to run multiple Thunderbolt devices in series. Secure RedNet TNX to a rack shelf using the exposed M5 x 12mm screw threads located underneath.
