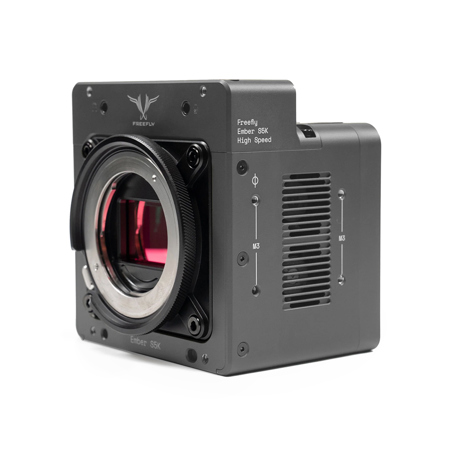

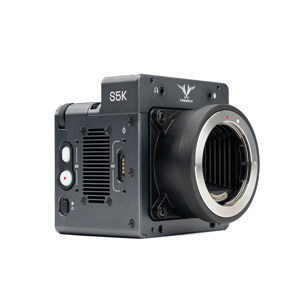

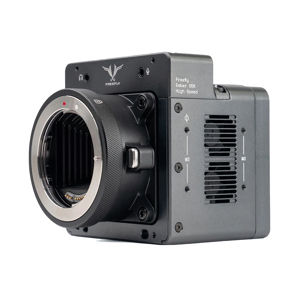

Freefly Ember S5K 4TB High Speed Camera, Gray

SKU: FREMBERS5K4T

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Freefly Ember S5K Specifications

Image Sensor

Image Sensor

Jump to...
  • Format

    S35

  • Native Aspect Ratio

    5:4

  • Pixel Size

    4.5 x 4.5microm

  • Native Resolution

    21MP 5120 x 4096

  • Active Area

    23.04 x 18.43mm

  • Shutter Type

    Global Electronic

  • Native ISO

    100, 200 & 400

Lens Mount

Jump to...
  • Standard Lens Mount

    Universal Mount Compatible

  • Removable

    Yes

  • Positive Locking

    Yes

  • Electronic

    No

  • Compatible with AF lenses

    No

Recording

Jump to...
  • Media

    Internal NVMe SSD

  • Media Size

    4TB

  • Format

    Apple ProRes

  • Native Bit Depth

    10-bit

  • DC Input Voltage

    Operation12-26V

  • Power Consumption

    Standby: 20W
    Recording (Max Rate): 40W

Interface

Jump to...
  • DC Input

    4-pin Molex Microfit with CAN

  • HDMI Output

    HDMI A (Full Size)
    1080p24

  • GPIO

    6-Pin JST GH
    Optically Isolated
    Start/Stop/Sync
    UART (3.3V or 5.0V)

  • USB

    Type C (Reversible)
    USB 3.2 Gen1x1
    SuperSpeed 5Gb/s

  • Wireless

    Wi-Fi 5 (802.11ac)

  • Ethernet

    RJ45 Connector

Other Features

Jump to...
  • Firmware Update

    via USB-C

  • Upgradeable Storage

    Yes

  • On-Board IMU

    Yes

  • LCD

    No

  • Audio Recording

    No

  • Autofocus

    No

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Ingress Protection

    IP52

Battery

Jump to...
  • Battery Info

    Required, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Compatibility

    Lenses with mechanical focus (no AF)
    Adapters for EF, PL, CN-E, FD, etc, but not RF
    KipperTie Revolva FE/PL Lens Mount
    KipperTie Adapta FE/PL-LW Lens Mount
    Lens Mounts from C7 Adapters

  • Mounting Points

    1/4-20:
    2: 1x Top, 1x Bottom
    M3:
    24: 4x per Side

  • Dimensions (W x H x D)

    With E-mount: 3.9 x 4 x 3.38" (100 x 104 x 86mm)

  • Weight

    With E-mount: 1.8 lbs (820g)

  • UPC Code

    7425742529962

About Freefly Ember S5K

We designed Ember to be the most efficient high speed camera ever. It's small, light, and insanely fun to use. Ember is unique in that it can record continuous high speed footage with no ram based clip limit since it records directly to a 4TB internal SSD.

Shooting high speed is now just like shooting anything else, push record to start and stop, and Ember captures everything to solid state memory - as simple... as that.

The Ember app for iOS means you can go from capture to sharing in seconds.

Small, light and insanely fast
• S35 Sensor
• 5K 600fps
• 4K 800fps

A magical new way to capture high speed imagery. All new Sensor, Chassis, and App designed to go from capture to share as quickly as possible.

Ember is a 100mm cube and can shoot 4K 800fps, 5K 600fps
• 4K 2.37:1 1011 FPS
• 4K 17:9 800 FPS
• 5K 2.37:1 809 FPS
• 5K 16:9 616 FPS

Powerful workflow
We decided early to keep Ember as small and simple as possible and focus on an app based workflow. Its faster, easier, and much more powerful.

Prepare for takeoff
We love flying things at Freefly. Ember is made to fly on just about everything.

High speed f high complexity
With Ember you simply press the record button, roll as long as you like, then share your best shots right from the app.

ProRes - Taking Apple ProRes to new speeds
Ember is the fastest camera to ever use the ProRes codec. It's the perfect tradeoff of storage rates, image quality, and editing performance.

Not Compatible
Lenses with purely electronic focus and iris. With the proper adapter, EF lenses will work but you won't have iris control, it will be wide open.

Freefly Ember S5K Features

  • 5K max resolution at 600fps
  • 4K 800fps
  • Gpixel sensor
  • Fast iOS based app workflow
  • Apple ProRes Codec
  • Global Shutter
  • Wireless Control
  • USB 3.2 Type C

Key Features

  • 5K max resolution at 600fps
  • 4K 800fps
  • Gpixel sensor
  • Fast iOS based app workflow
  • Apple ProRes Codec
  • Global Shutter

What's in the box:

  • Freefly Ember S5K 4TB High Speed Camera (Gray)
  • Locking Passive Universal Mount (Pre-Installed)
  • Rear Accessory Mount Stand-Off (Pair)
  • USB-C 3.0 Cable
  • D-Tap Power Cable
  • 8x M3 x 10mm SHCS Fasteners for Accessory Mounts
  • (Lens and Battery Not Included)
  • Freefly 1 Year Limited Warranty
