Focusrite RedNet D16 AES 16CH I/O Dante Equipped Digital Audio Interface

Free Addictive Keys - The Addictive Keys virtual instrument from XLN Audio is now included for free with all Focusrite audio interfaces. One full license per account enables you to choose one world-class Addictive Keys instrument, such as Modern Upright, Studio Grand, Electric Grand or Mark One.

RedNet D16 AES is a 1U 19in rack-mount interface featuring 16 channels of AES/EBU connectivity to and from a Dante audio network, with Ethernet redundancy for maximum network reliability. Perfect for bridging between digital consoles, power amplifiers or any other AES3 equipped audio equipment and a Dante network, RedNet D16 AES has a Sample Rate Convertor (SRC) on each input pair allowing instant operation with any AES3 source. Word Clock and Digital Audio Reference Signal (DARS) connections provide synchronization with a wide range of hardware, while S/PDIF I/O allows the integration of equipment such as CD or solid state recorders/players.

16 Channel RedNet AES3 Interface for Dante Network
AES3 connectivity allows connection of external converters, effects units, mixing consoles or any other AES3 equipped audio equipment to the Dante audio network

Ethernet Redundancy

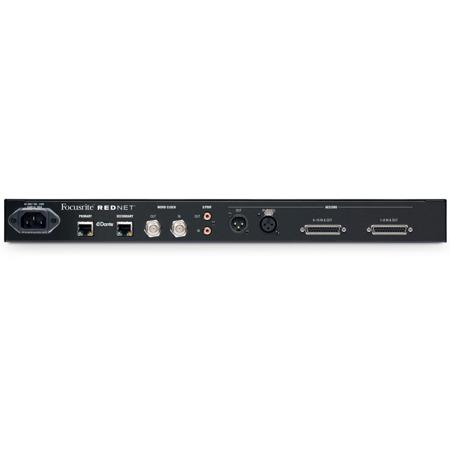

Dual rear-panel Ethernet connectors (primary and secondary connectors) allow maximum network reliability with seamless switchover to a standby network in the unlikely event of a network failure. The ports can alternatively be used to daisy-chain additional units.

Sample Rate Conversion on all input channels
SRC allows external equipment to run at any sample rate, irrespective of the sample rate or clocking of the Dante audio network

1U Chassis

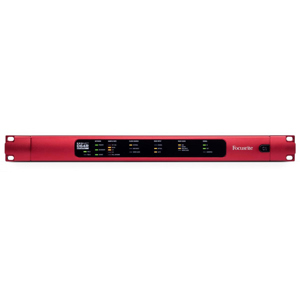

Compact design allows maximum functionality in minimum rack space, with a full 16 channels of I/O in 1U. RedNet D16 AES features the standard trademark red anodized front panel

Input and Output on XLR as well as DB25
RedNet D16 provides two 8-channel AES59 combined I/O DB25 connections. In addition, a pair of XLR3 connectors duplicates channels 1 2

XLR Input for DARS or Digital Audio
The rear panel XLR input connector can either be used as a DARS input or as a traditional AES3 audio input, replacing channels 1-2 of the DB25 inputs

S/PDIF
S/PDIF input and outputs are provided on RCA connectors; ideal for connecting CD players or solid-state recorders. The input replaces channels 3 4 in the DB25 connector while the output can be assigned to replicate any adjacent odd/even output pair

Word Clock
Word Clock I/O on BNC connectors allows synchronization of the Dante network to house clock or syncing external equipment to the Dante network

Remote routing and control
RedNet Control software allows full routing and control from your audio computer system via a software control panel - no hardware patching required

About RedNet
RedNet is Focusrite's range of modular audio over IP interfaces that harnesses the power of Audinate's tried and tested Dante digital audio networking protocol to bring studio quality sound to any modern audio application. Designed with multiple audio applications in mind - from live sound to multi-room recording studios, from houses of worship to audio distribution installations and from post-production to broadcast environments and anything in between - RedNet provides a comprehensive range of Dante-enabled audio interfaces that can be used to expand I/O channel count, interface digital components, and/or bridge between Pro Tools,HD, MADI or AES environments and a Dante audio network.

Due to their modular design, RedNet units can be integrated into any existing Dante eco-system or can be pieced together to form a brand new digital audio network. Incorporating Focusrite's most advanced AD/DA conversion to date, rock-stable JetPLL clocking and premium multi-layer board circuitry, RedNet demonstrates Focusrite's philosophy that 'Sound is Everything'. With every design detail meticulously engineered, RedNet provides some of the most transparent and pristine audio quality available - with the added benefit of Dante's revolutionary networking capabilities.

Connectivity
· AES/EBU inputs and outputs via 2x25-way female D-sub, each wired to AES59 (combined I/O)/Tascam Digital
· Switchable AES/EBU input via XLR F connector (replaces channels 1-2 from DB25)
· Switchable S/PDIF input via phono connector (replaces channels 3-4 from DB25)
· Duplicate AES/EBU output via XLR M connector (duplicates channels 1-2)
· Duplicate S/PDIF output via phono connector (replaces any adjacent odd/even pair)
· DARS input via XLR F (switchable between AES/EBU input and DARS)
· Word clock input on BNC port (switchable termination)
· Word clock output on BNC port
· Two Dante network ports, configurable as redundant connections or for daisy chaining
· IEC power inle
